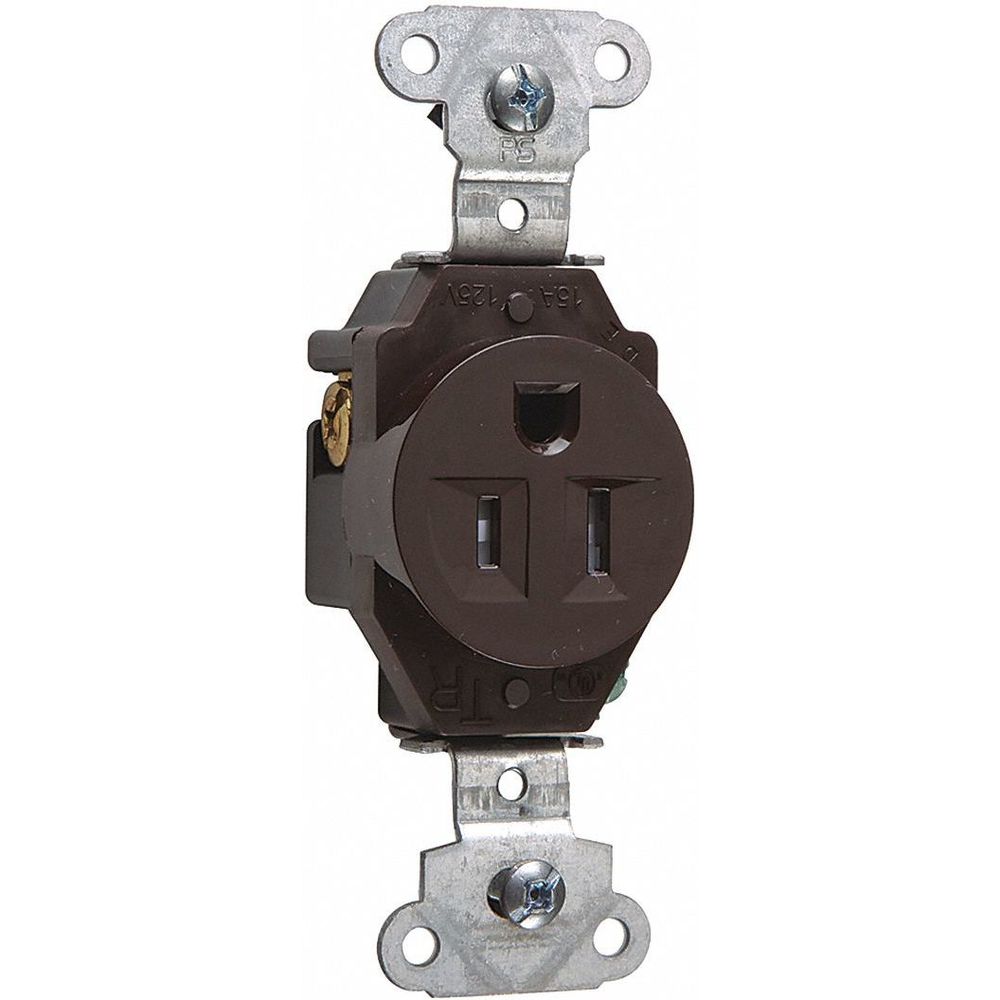

LEGRAND TR5251 Commercial Environments Receptacle, 15A, Brown, Tamper Resistant
Item: CD3LFUModel: TR5251Cross Ref: 53CX72
7 In Stock
Ships within 2 days via
10.00% off
€9.63 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Application Environment | Commercial |
| Application Sector | Commercial |
| Color | Brown |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Corrosion Resistant | Yes |
| Current Rating | 15A |
| Face Dia. | 1 2/5" |
| Face Diameter | 1.4" |
| Face Plate Height | 2" |
| Face Plate Width | 1.3" |
| Grade | Federal Specification |
| Grounding | Grounded |
| Housing Color | Brown |
| Housing Material | Nylon (Face), Pvc (Back Body) |
| Hp | 1/2 hp |
| Hp Rating | 1/2 hp |
| Includes | Auto-Ground Clip, Mounting Hardware |
| Includes Mounting Hardware | Yes |
| Is Tamper-resistant | Yes |
| Material | Nylon |
| Max. Wire Size | 10 AWG |
| Maximum Operating Temperature | 140°F |
| Min. Wire Size | 14 AWG |
| Minimum Operating Temperature | -40°F |
| Mount Hole Center-to-center Height | 3.7" |
| Mounting Hardware Included | Yes |
| Mounting Type | Flush |
| Mounting Type - Plugs And Receptacles | Flush |
| Nema Plug Configuration | 5-15R |
| Nema Receptacle Configuration | NEMA 5-15R |
| No. Of Gangs | 1 |
| No. Of Poles | 2 |
| No. Of Wires | 3 |
| Outlet Type | Single |
| Outlet Type - Plugs And Receptacles | Single |
| Phase | 1 |
| Power Indicator | No |
| Receptacle Type | Single |
| Resistance Properties | Corrosion Resistant, Tamper Resistant |
| Special Features | Corrosion Resistant |
| Special Resistance | Corrosion Resistant, Tamper Resistant |
| Surge Protection | No |
| Surge Suppression | No |
| Tamper Resistant | Yes |
| Type | Straight Blade |
| Ul 94 Flammability Rating | V-2 |
| Voltage Rating | 125V AC |
| Weather Resistant | No |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminals |
| Wiring Method | Back, Side |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage Rating | Color | Nema Rating | Phase | Amps Rating | Housing Material | Wire Size | Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SNAP5362LAA | 125V AC | Almond | 5-20R | 1 | 20A | Nylon | 12 AWG | 125V AC | €33.86 | |
 |
SNAP8200RA | - | Red | 5-15R | 1 | 15A | - | 12 AWG | 125V AC | €41.22 | |
 |
SNAP8200WA | 125V AC | White | 5-15R | 1 | 15A | - | 12 AWG | 125V AC | €44.25 | |
 |
HBL53CM62 | 125V AC | Yellow | - | 1 | - | Nylon (Face) | - | - | €112.28 | |
 |
IG5262I | 125V AC | Ivory | 5-15R | 1 | 15A | Nylon | 14 AWG to 10 AWG | 125V AC | €72.90 | |
 |
SR50 | 125/250V AC | Yellow | - | 1 | - | - | 6 AWG | - | €609.19 | |
 |
IG15DR | 125V AC | Orange | 5-15R | 1 | 15A | Nylon | 14 AWG to 10 AWG | 125V AC | €26.52 |
