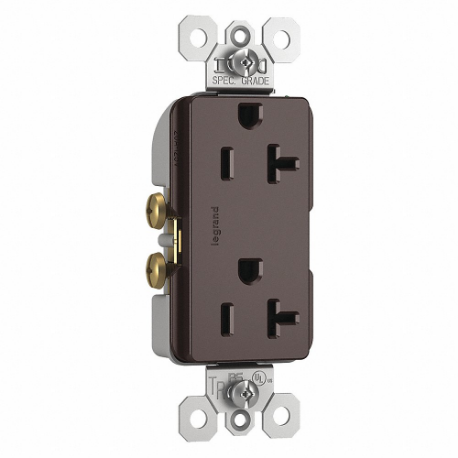

LEGRAND TR26352RDBCC6 Receptacle, Duplex, 5-20R, 125V AC, 20 A, 2 Poles, Brown, Screw Terminals, Std Protection
Item: CR8PVZModel: TR26352RDBCC6Cross Ref: 56FN08
7 In Stock
Ships within 2 days via
10.00% off
€25.44 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Amps | 20A |
| Body Material | Nylon |
| Color | Bronze , Brown |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Current Rating | 20A |
| Face Plate Height | 3.3" |
| Face Plate Width | 1 2/5" |
| Grade | Federal Specification |
| Grounding | Grounded |
| Housing Color | Brown |
| Includes | Auto-Ground Clip, Mounting Hardware |
| Includes Mounting Hardware | Yes |
| Maximum Wire Size | 10 AWG |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 14 AWG |
| Minimum Operating Temperature | -40°F |
| Mount Hole Center-to-center Height | 3.9" |
| Mounting Hardware Included | Yes |
| Mounting Type | Flush |
| Mounting Type - Plugs And Receptacles | Flush |
| Nema Receptacle Configuration | NEMA 5-20R |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Outlet Type - Plugs And Receptacles | Decorator Duplex |
| Power Indicator | No |
| Receptacle Type | Duplex |
| Resistance Properties | Corrosion Resistant, Tamper Resistant |
| Signal & Power Protection | Standard Protection |
| Special Resistance Properties | Corrosion Resistant, Tamper Resistant |
| Sub-brand | Radiant(R) |
| Surge Protection | No |
| Tamper Resistant | Yes |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Weather Resistant | No |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminals |
| Wiring Method | Back, Side |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
Product Variants
| Product | Model | Housing Color | Color | Mounting Type | Receptacle Type | Surge Protection | Current Rating | Voltage Rating | Wire Connection Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TR26352RGCC6 | Gray | Gray | Flush | Duplex | No | 20A | 125V AC | Screw Terminals | €27.25 | |
 |

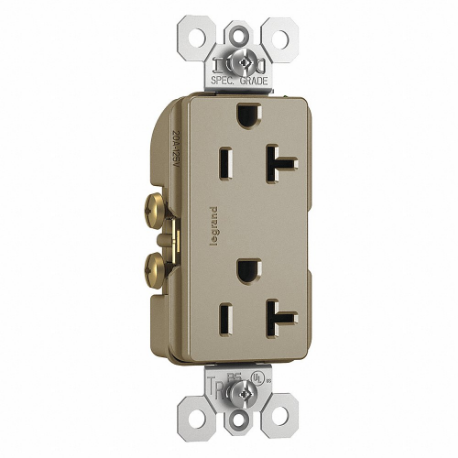

TR26352RNICC6 | Silver | Silver | Flush | Duplex | No | 20A | 125V AC | Screw Terminals | €28.27 |
