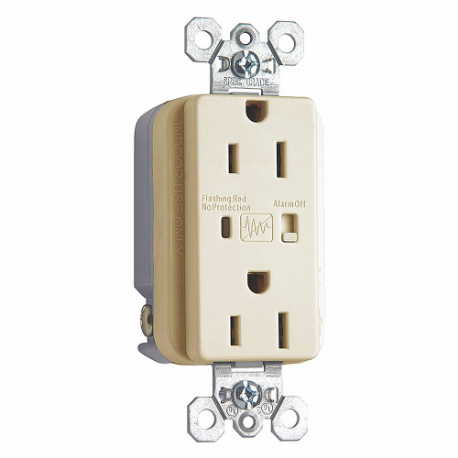

LEGRAND 5262ISP Receptacle, Duplex, 5-15R, 15 A, 125V AC, Ivory, 2 Poles, Std Resist
Item: CR8PVUModel: 5262ISPCross Ref: 53CX55
7 In Stock
Ships within 2 days via
10.00% off
€53.13 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Amps | 15A |
| Application Sector | Commercial |
| Body Material | Thermoplastic |
| Color | Ivory |
| Connection Orientation | Straight |
| Contact Material | Copper Alloy |
| Corrosion Resistant | Yes |
| Current Rating | 15A |
| Depth | 1.225" |
| Face Plate Height | 2 4/5" |
| Face Plate Width | 1.8" |
| Face Type | Finder Groove |
| Grade | Federal Specification |
| Grounding | Isolated Ground |
| Housing Color | Ivory |
| Hp | 1/2 hp |
| Includes | Grounding Clip, Mounting Hardware |
| Includes Mounting Hardware | Yes |
| Isolated Grounding | Yes |
| Max. Operating Temp. | 131°F |
| Max. Wire Size | 10 AWG |
| Min. Operating Temp. | -4°F |
| Min. Wire Size | 14 AWG |
| Mount Hole Center-to-center Height | 3.8" |
| Mount Hole Center-to-center Width | 0.9" |
| Mounting Hardware Included | Yes |
| Mounting Type | Flush |
| Mounting Type - Plugs And Receptacles | Flush |
| Nema Receptacle Configuration | NEMA 5-15R |
| Number Of Gangs | 1 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Outlet Type - Plugs And Receptacles | Standard Duplex |
| Overall Depth | 1.2" |
| Phase | Single |
| Power Indicator | Yes |
| Receptacle Type | Duplex |
| Resistance Properties | Impact Resistant |
| Special Features | Corrosion Resistant |
| Special Resistance | Impact Resistant |
| Surge Protection | Yes |
| Tamper Resistant | No |
| Ul 94 Flammability Rating | V-2 |
| Visual Indicator Lights | Power Connected |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Weather Resistant | No |
| Wire Connection Location | Back, Side |
| Wiring Method | Back, Side |
Shipping Info:
| Ship weight (kg) | 0.16 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
Product Variants
| Product | Model | Surge Protection | Housing Color | Grade | Wire Connection Type | Color | Grounding | Body Material | Face Plate Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

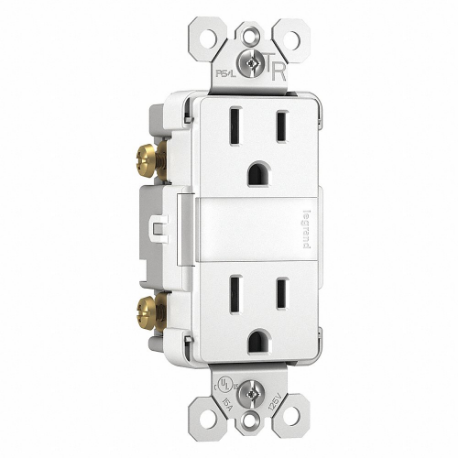

NTL885TRW | No | White | General Use | - | White | Grounded | Thermoplastic | - | €63.62 | |
 |

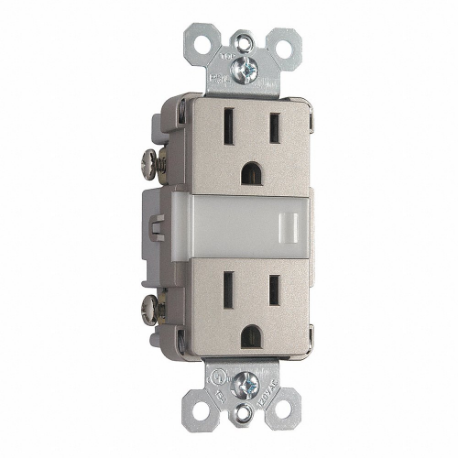

NTL885TRNICC6 | No | Gray | General Use | - | Nickel | Grounded | Thermoplastic | 2 3/5" | €96.55 | |
 |
NTL885TRLACC6 | No | Light Almond | General Use | - | Almond | Grounded | Thermoplastic | 2 3/5" | €69.50 | |
 |

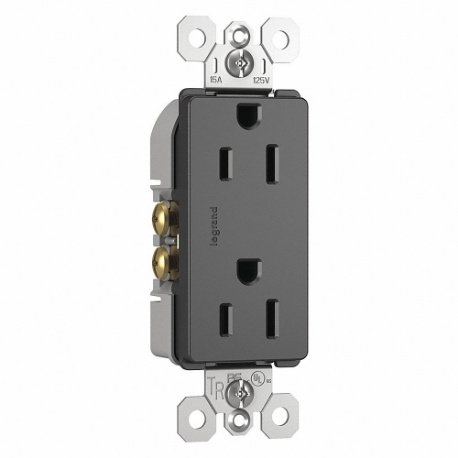

885TRBK | No | Black | General Use | Push In | Black | Grounded | Thermoplastic | 2 3/5" | €16.34 | |
 |
885TRDBCC12 | No | Brown | General Use | Push In | Brown | Grounded | Thermoplastic | 2 3/5" | €17.45 | |
 |

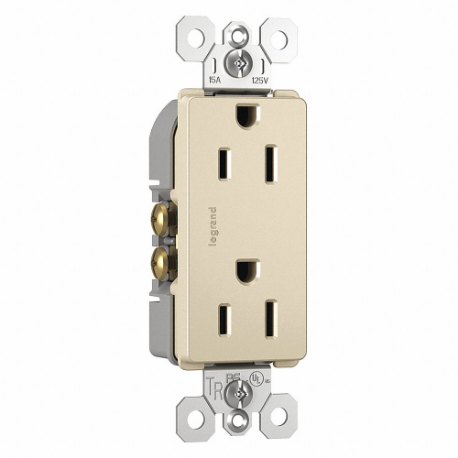

885TRLA | No | Light Almond | General Use | Push In | Almond | Grounded | Thermoplastic | 2 3/5" | €16.73 | |
 |

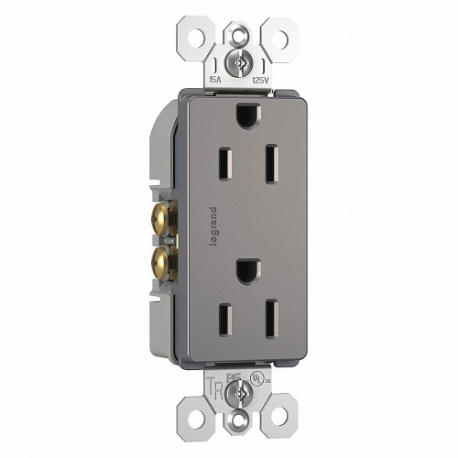

885TRNICC12 | No | Nickel | General Use | Push In | Silver | Grounded | Thermoplastic | 2 3/5" | €16.39 |
