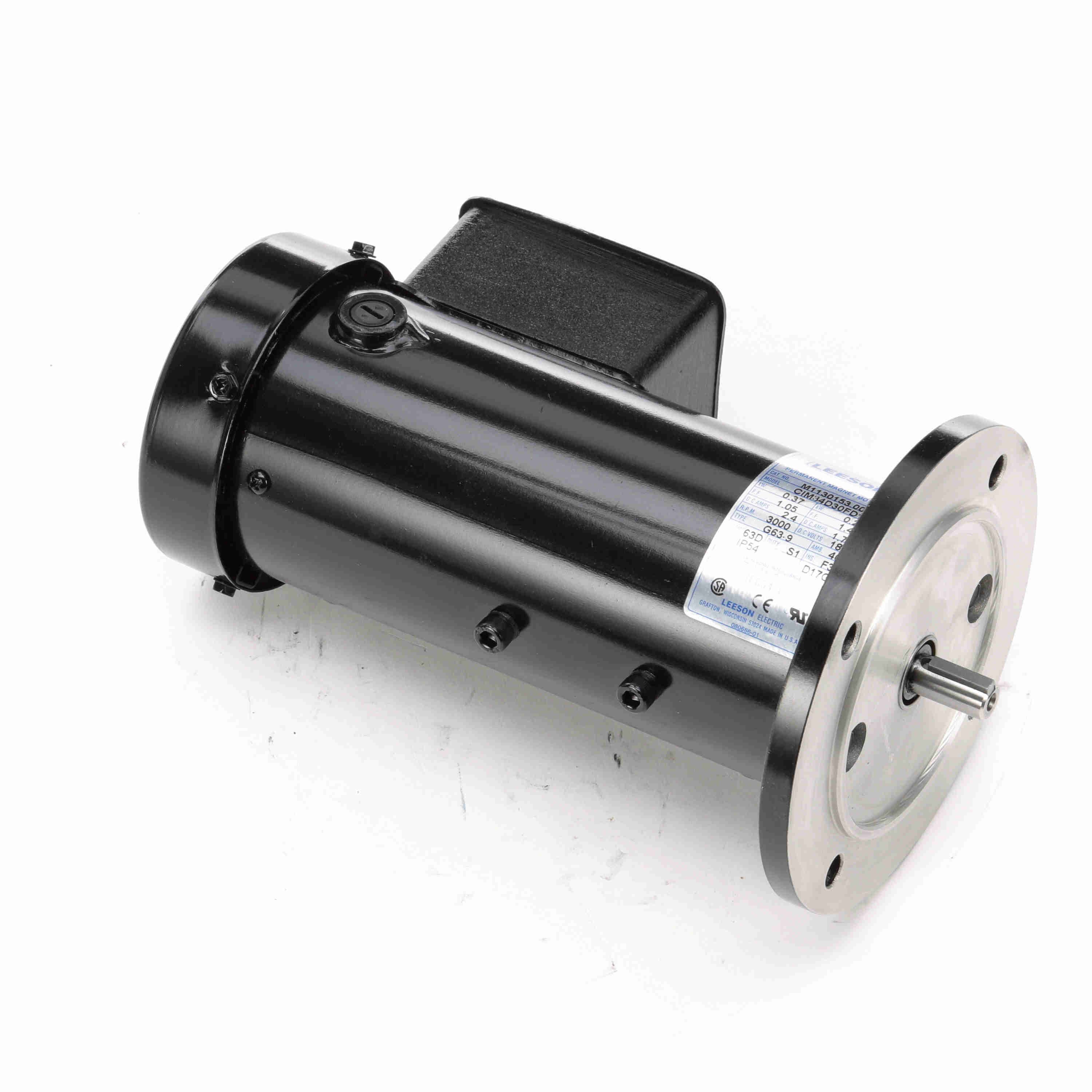

LEESON M1130153.00 CIM34D30FD1B Metric Motor, 180V, 3000 RPM
Get it by Monday, Aug 24
€186.16 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Metric Motor |
| Ambient Temp. | 40°C |
| Amps | 2.4A |
| Assembly | M1041357 |
| Drive End Bearing Size | 6201-13 |
| Drive End Bearing Type | Ball |
| Duty Cycle | S1 |
| Efficiency | 75.8% |
| Explosion Proof | Brake Motors |
| Form Factor | 1.05 |
| Form Factor 2 | 1.4 |
| Frame | 63D |
| Frame Length | 7.18" |
| Frame Size | 63D |
| Grease Type | Polyrex EM |
| Height | 7 1/4" |
| Inertia | 10.3 oz./sq. in. |
| Insulation Class | Class F |
| Ip Rating | IP54 |
| Kw | 0.37 kW |
| Kw2 | 0.25 kW |
| Length | 12.13" |
| Lubrication | Polyrex EM |
| Max. Ambient Temp. | 40°C |
| Motor Shaft Rotation | Reconn |
| Mounting Type | B5 |
| Nameplate Speed | 3000 RPM |
| Nominal Efficiency | 75.8% |
| Opp Drive End Bearing Size | 6201-13 |
| Opp. Drive End Bearing Type | Ball |
| Outline | M1030283 |
| Output Kw | 0.37 kW |
| Overall Length | 9 1/2" |
| Packaging | M1307020.02 |
| Power | 0.37 kW |
| Rotation Type | Reversible |
| Service Factor | 1 |
| Shaft Dia. | 0.437" |
| Shaft Length | 19/25" |
| Speed | 3000 RPM |
| Test Card | 01 |
| Thermal Protection | No Protection |
| Torque | 112 oz./in. |
| Type | G63-9 |
| Voltage | 180V |
| Winding | MD342149 |
Shipping Info:
| Ship weight (kg) | 5.85 |
| Ship height (cm) | 18.42 |
| Ship length (cm) | 30.81 |
| Ship width (cm) | 19.38 |
| Country of Origin | US |
Product Details:
- KW2: 0.25
- Form Factor 2: 1.40
- FLA2: 1.7
- Bearing OPE: 6201-13
- Bearing PE: 6201-13
- Eff 100%: 75.8%
- Nameplate: 080686
- Winding: MD342149
- GROUP: 1 A
- Sub Group: A
- Paint: M1305027.01
