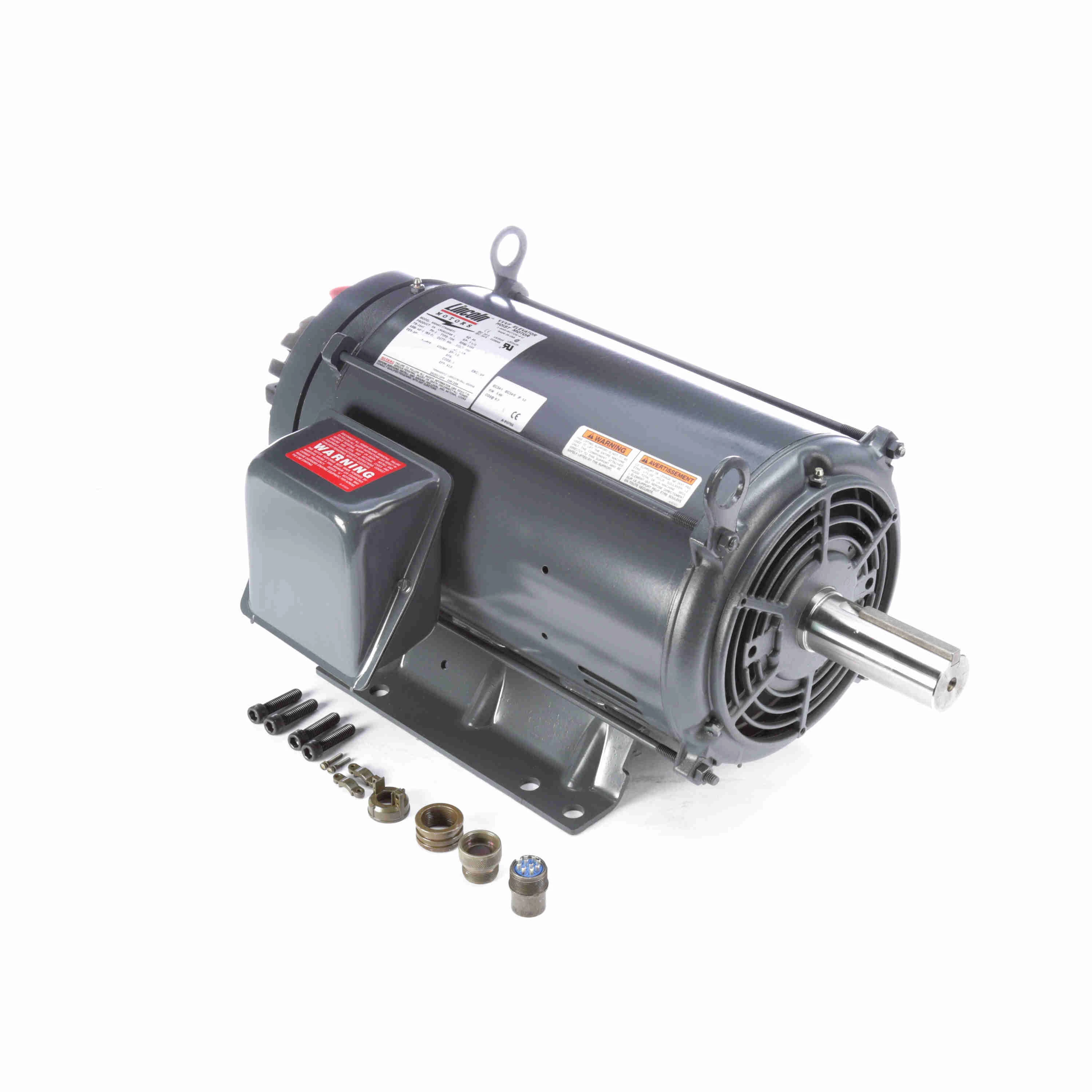

LEESON LM28205 SD6S10TCN6006ET1 Elevator Duty Motor, 10 HP, 3 Ph, 60 Hz, 200V, 1200 RPM
Get it by Tuesday, Dec 23
€2,344.85 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Definite Purpose Motor |
| Ambient Temp. | 40°C |
| Amps | 33.5A |
| Assembly/box Mounting | F1, F2 Capable |
| Cc Number | Exempt |
| Code | J |
| Conduit Box Position | F1 |
| Design Code | Special |
| Drive End Bearing Size | 309 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Elevator |
| Efficiency | 86.5% |
| Efficiency @ 100% | 86.5% |
| Electrical Type | Squirrel Cage, Inverter Duty |
| Enclosure Type | ODP |
| Frame | 256TC |
| Frame Length | 15.15" |
| Frame Material | Rolled Steel |
| Frame Size | 256TC |
| Frequency | 60 Hz |
| Full Load Amps | 33.5A |
| Hazardous Location | Not Available |
| Hp | 10 hp |
| Insulation Class | Class F |
| Inverter Load Ratio | 1000:1 |
| Inverter Load Type | Constant |
| Inverter Type | Not Available |
| Ip Code | IP12 |
| Kw | 7.5 kW |
| Lubrication | Standard |
| Motor Enclosure Design | Dripproof |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Squirrel Cage Induction Run |
| Mounting Type | Round |
| Nameplate Rpm | 1200 RPM |
| Nema Design | J, Special |
| No. Of Poles | 6 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 208 |
| Opp. Drive End Bearing Type | Ball |
| Outline | A-SS88789LN-1515 |
| Output Kw | 7.5 kW |
| Overall Length | 27.65" |
| Packaging | B |
| Paint | Lincoln Gray |
| Phase | 3 |
| Power | 7.46 kW |
| Power Factor | 74 |
| Protection | No Protection |
| Resistance Main | 1.16 ohms |
| Rotation Type | Reversible |
| Rpm | 1100-1200 RPM |
| Service Factor | 1 |
| Shaft Dia. | 1 5/8" |
| Shaft Length | 3 3/4" |
| Shaft Type | T |
| Speed Range | Not Available |
| Starting Method | Inverter Only |
| Thermal Protection | Thermostat |
| Type | TDR |
| Voltage | 200V |
| Winding | K2156160 |
Shipping Info:
| Ship weight (kg) | 90.9 |
| Ship height (cm) | 45.72 |
| Ship length (cm) | 79.38 |
| Ship width (cm) | 56.52 |
| Country of Origin | US |
Product Details:
- Eff 100%: 86.5
- Bearing OPE: 208
- CC Number: EXEMPT
- Bearing PE: 309
- Winding: K2156160
- GROUP: 2
- Paint: GRAY - LINCOLN
