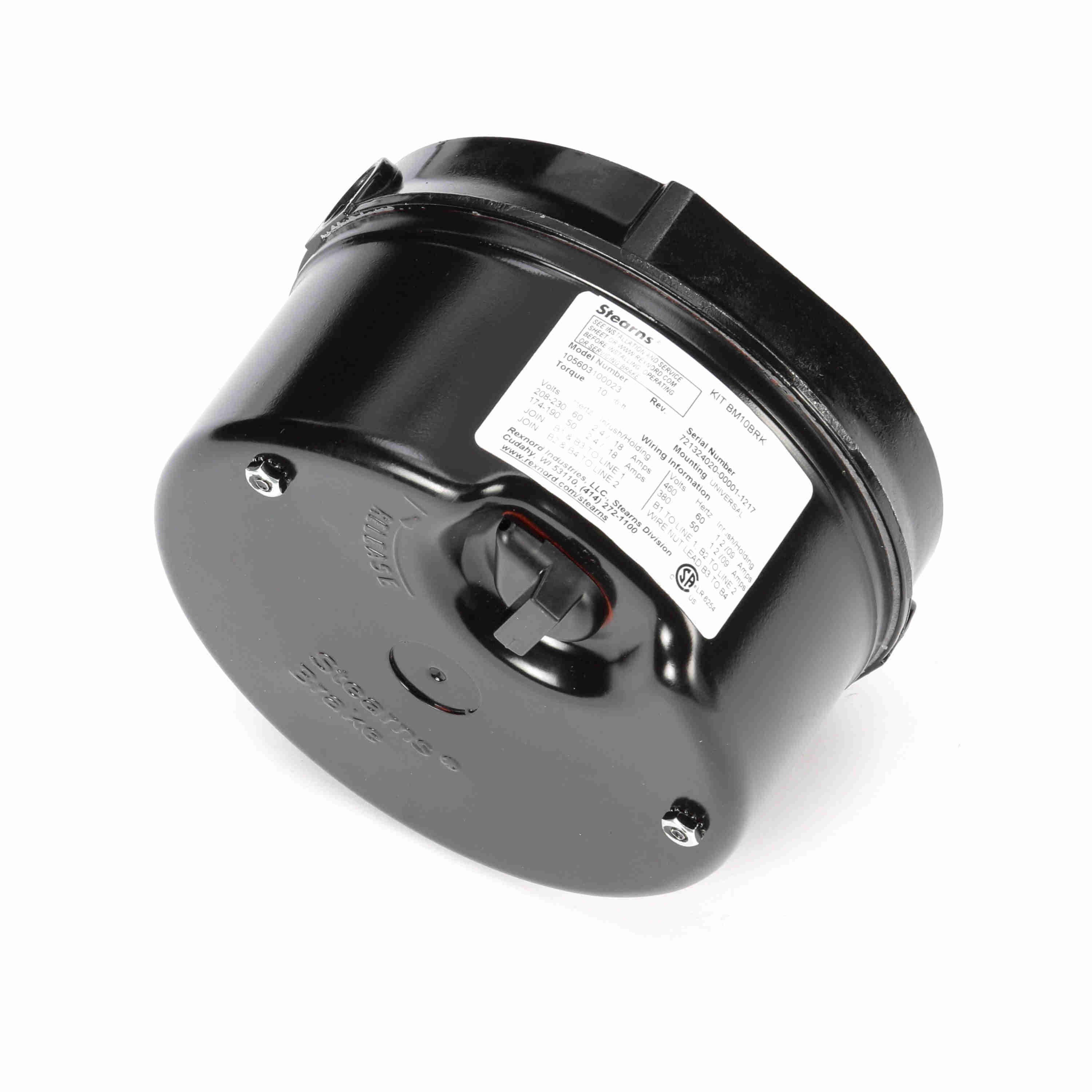

LEESON KIT BM10BRK A313 Motor Brake Kit, 10 lb-ft Static Torque, Three Phase, 230/460V AC, Black Max Motors
Item: CT2FWJModel: KIT BM10BRKCross Ref: 5TJA6 / A313
7 In Stock
Ships within 2 days via
10.00% off
€1,369.22 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Motor Brake Kit |
| Amps Holding | 2.2/1.2A |
| Dia. | 6 9/16" |
| Diameter | 6 9/16" |
| Enclosure | IP23 |
| Enclosure Material | Cast Iron, Rolled Steel |
| Enclosure Rating | IP23 |
| For Use With | Black Max Motors |
| Frequency | 50/60 Hz |
| Includes | Mounting Hardware |
| Inrush Amps | 0.2/0.1A |
| Manufacturers Warranty Length | 3 yrs. |
| Max. Ambient Temp. | 40°C |
| Mounting | Face |
| Mounting Type | Face |
| Ode Shaft Dia. | 5/8" |
| Overall Length | 11.17" |
| Phase | 3 |
| Requires | Black Max Motor |
| Shaft Dia. | 5/8" |
| Static Torque | 10 lbs.-ft. |
| Static Torque | 10 ft.-lbs. |
| Voltage | 230/460V AC |
| Wire Termination | Flying Leads |
Shipping Info:
| Ship weight (kg) | 3.15 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| HS code | 8503005000 |
| Country of Origin | US |
