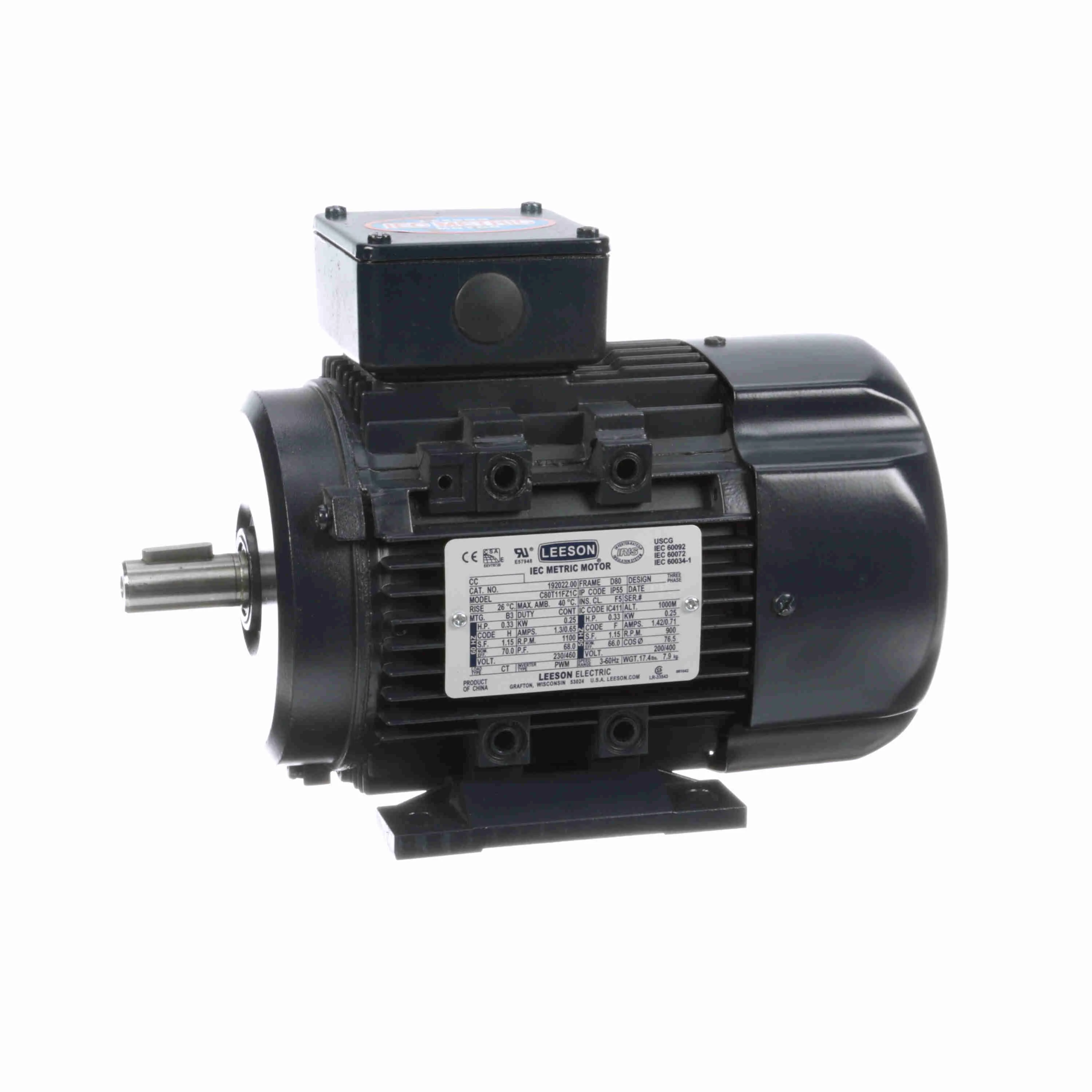

LEESON 192022.00 Electric Motor, 1/3 HP, 1200 RPM, 230/460V
Get it by Friday, Aug 21
€99.65 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Motor |
| Duty Cycle | Continuous |
| Electrical Phase | 3 |
| Enclosure | Totally Enclosed Fan Cooled |
| Family Series | Leeson Motors, IEC Series |
| Frame | D80 |
| Frequency | 60 Hz |
| Full Load Amps | 1.3/0.65A |
| Hp | 1/3 hp |
| Includes | Terminal Board, Multi-Mount Repositionable Feet To Allow For 3 Conduit Box Positions |
| Inverter Rated | Yes |
| Kw | 0.25 kW |
| Length Less Shaft | 9 1/2" |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Shaft Rotation | CW, CCW |
| Mounting Type | B3 |
| Nema Design | B |
| No. Of Poles | 6 |
| No. Of Speeds | 1 |
| Nominal Voltage | 240/480V AC |
| Overall Length | 11 1/8" |
| Phase | 3 |
| Power | 0.33 |
| Product Datasheet | leeson-192022-00.pdf |
| Series | IEC Series |
| Shaft Dia. | 19 mm |
| Shaft Length | 40 mm |
| Speed | 1200 RPM |
| Type | IEC |
| Voltage | 230/460V AC |
Shipping Info:
| Ship weight (kg) | 7.65 |
| Ship height (cm) | 25.91 |
| Ship length (cm) | 34.01 |
| Ship width (cm) | 24.51 |
| Country of Origin | CN |
