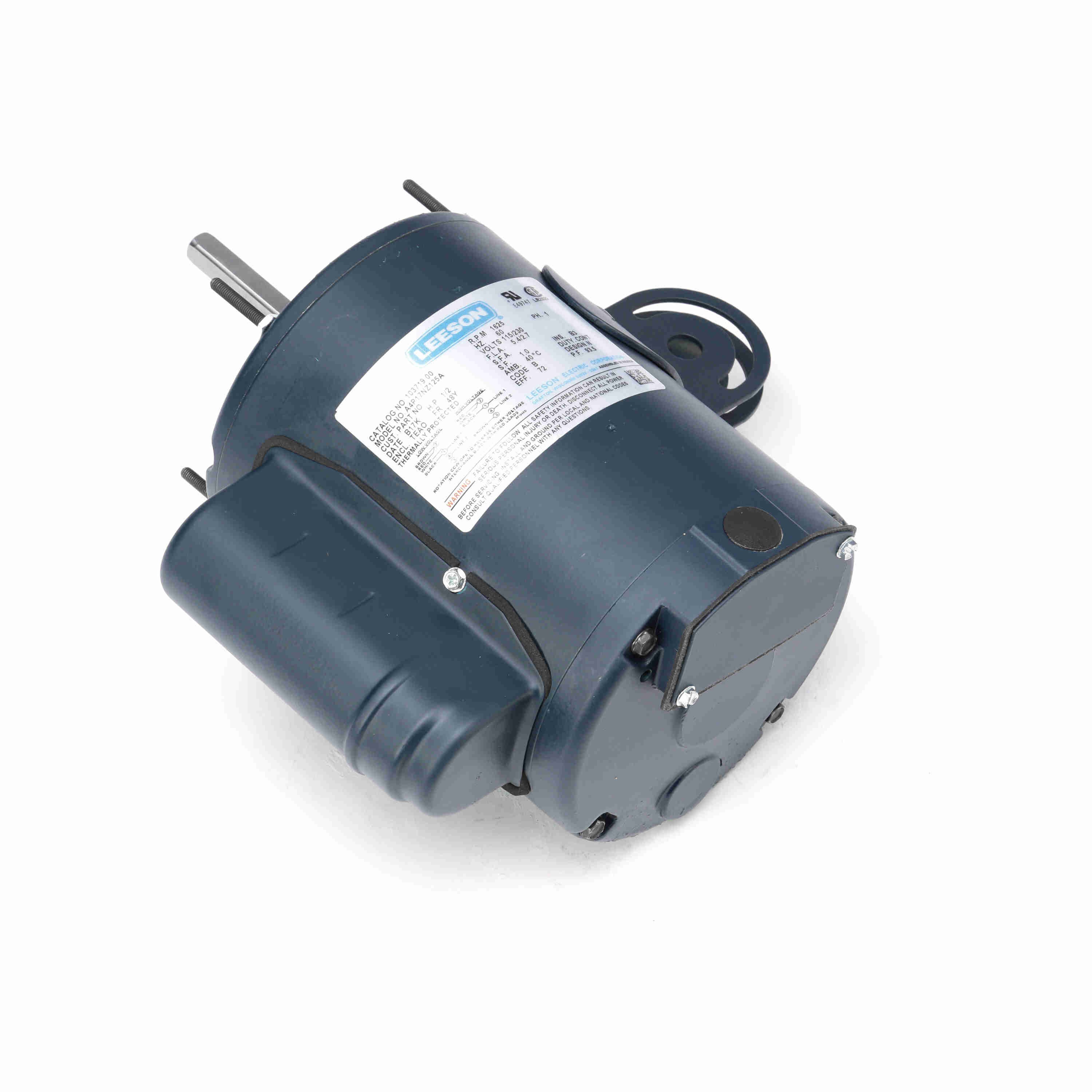

LEESON 191873.00 191873.00A Definite Purpose Motor, 0.50 HP, 1 Phase, 60 Hz, 115/230V, 1800 RPM
Get it by Wednesday, Dec 24
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€398.06 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pedestal Fan Motor |
| Ambient Temp. | 212°F |
| Application | HVAC/R |
| Bearing Type | Ball |
| Body Dia. | 5 5/8" |
| Capacitor Required | No |
| Frame | R48Y |
| Frequency | 60 Hz |
| Full Load Amps | 4.6/2.3A |
| Hp | 1/2 hp |
| Includes | Shaft Slinger |
| Insulation Class | Class B |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 212°F |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Mounting Type | Yoke |
| Motor Service Factor | 1 |
| Motor Shaft Design | Single Special Extension |
| Motor Shaft Rotation | Counter Clockwise Shaft End |
| Motor Sub Application | Pedestal Fan |
| Motor Thermal Protection | Auto |
| Motor Type | Permanent Split Capacitor |
| Mounting Type | Yoke |
| Nameplate Rpm | 1625 RPM |
| No. Of Speeds | 1 |
| Phase | 1 |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 2 1/2" |
| Thermal Protection | Automatic |
| Voltage | 115/230V AC |
Shipping Info:
| Ship weight (kg) | 7.74 |
| Ship height (cm) | 17.27 |
| Ship length (cm) | 14.29 |
| Ship width (cm) | 14.29 |
| Country of Origin | CN |
Product Variants
| Product | Model | Hp | Nameplate Rpm | Frame | Full Load Amps | Motor Shaft Design | Ambient Temp. | Voltage | No. Of Speeds | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
191891.00 | 1/4 hp | 1075 RPM | 48Y | 2.4/1.2A | Keyed | 104°F | 115/230V AC | 1 | €392.01 |
