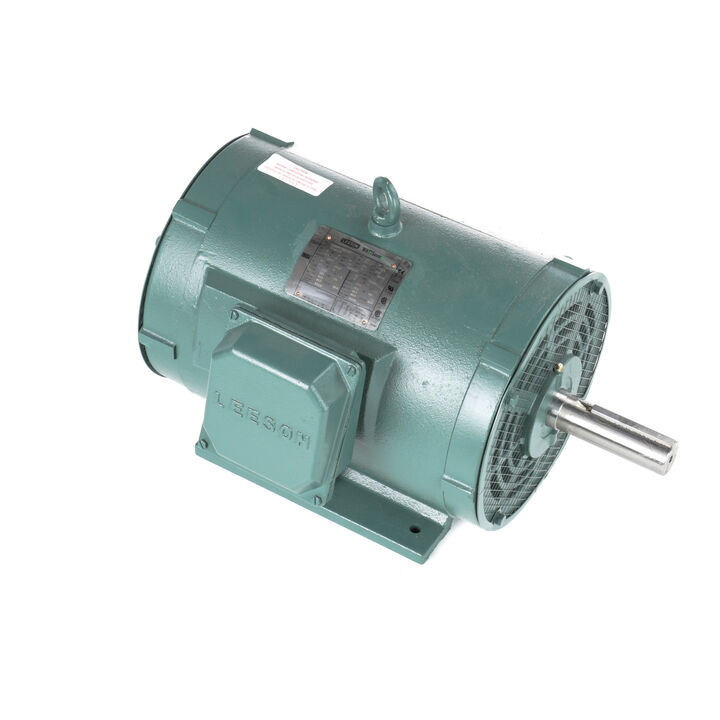

LEESON 171863.60 C256T17DB15AA Agricultural Motor, 20-15 HP, 3 Phase, 190/380V, 1800- 1500 RPM
Get it by Monday, Aug 24
€2,435.44 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Agricultural Motor |
| Drive End Bearing Size | 6309 |
| Efficiency | 93% |
| Electrical Phase | 3 |
| Enclosure | Drip Proof |
| Enclosure Type | Open Dripproof |
| Family Series | Leeson Motors |
| Frequency | 60 Hz |
| Full Load Amps | 25.5/55-51A |
| Insulation Class | Class F |
| Kw | 14.9 kW |
| Mounting Type | Foot Mount |
| No. Of Poles | 4 |
| Nominal Voltage | 208/240/480V AC |
| Opp Drive End Bearing Size | 6208 |
| Phase | 3 |
| Product Datasheet | leeson-171863-60.pdf |
| Service Factor | 1.15 |
| Shaft Dia. | 1.625 |
| Shaft Length | 5 |
| Speed | 1775 RPM |
| Type | General Purpose |
| Voltage | 208-230V/460V |
| Voltage Ac | 208V AC, 230V AC, 460V AC |
Shipping Info:
| Ship weight (kg) | 145.8 |
| Ship height (cm) | 41.91 |
| Ship length (cm) | 66.04 |
| Ship width (cm) | 38.1 |
| Country of Origin | CN |
