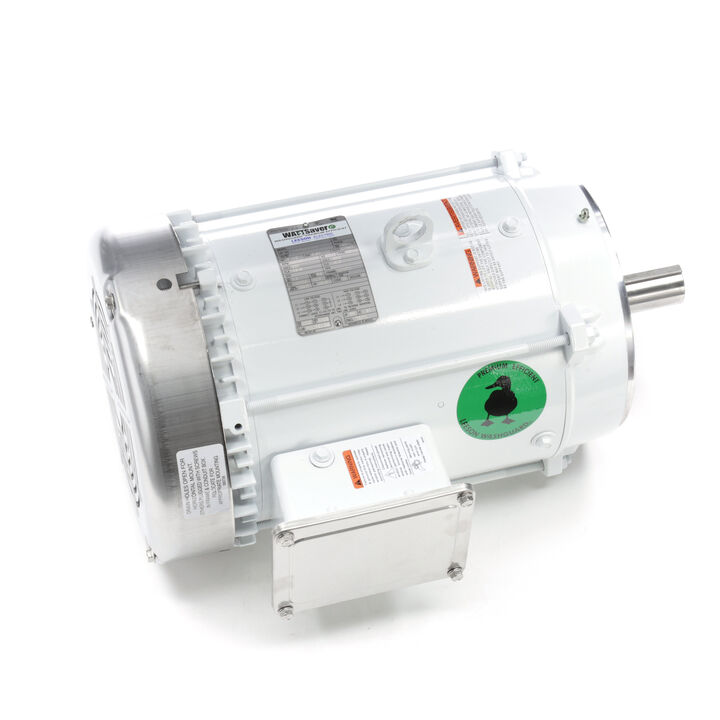

LEESON 141267.00 C213T17WC5A General Purpose Motor, 7.50 HP, 3 Phase, 60 Hz, 230/460V, 3600 RPM
Get it by Tuesday, Dec 23
€2,437.17 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Washdown Motor |
| Ambient Temp. | 104°F |
| Application | Washdown |
| Assembly | 180-011 |
| Bearing Type | Ball |
| Body Dia. | 11 1/2" |
| Bolt Circle Dia. | 7 1/4" |
| Cc Number | CC005A |
| Code | H |
| Color | White |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Drive End Bearing Size | 6309 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 89.5% |
| Enclosure Type | Tefc |
| Finish | Epoxy Coated |
| Frame | 213TC |
| Frame Material | Rolled Steel |
| Frame Type | 213TC |
| Frequency | 60 Hz |
| Full Load Amps | 18.6/9.3A |
| Grease Type | Polyrex EM |
| Hp | 7 1/2 hp |
| Hz | 60 Hz |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Kw | 5.6 kW |
| Length Less Shaft | 16 5/8" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Motor Application | Washdown |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Counter Clockwise Shaft End |
| Motor Shaft Rotation | CWSE |
| Motor Type | Three Phase |
| Mounting Type | Round |
| Nameplate Rpm | 3525 RPM |
| Nema Design | B |
| No. Of Poles | 2 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 89.5% |
| Opp. Drive End Bearing Size | 6206 |
| Opp. Drive End Bearing Type | Ball |
| Overall Length | 18 3/4" |
| Packaging | F |
| Phase | 3 |
| Power | 5.6 kW |
| Power Factor | 84.6 |
| Product Type | Washdown Brake Motor |
| Rotation | Reversible |
| Rpm | 3400-3600 RPM |
| Service Factor | 1 |
| Shaft Dia. | 1 3/8" |
| Shaft Length | 3 3/25" |
| Standards | Bissc Approved, Ce, Csa Certified, Ul Recognized |
| Thermal Protection | None |
| Type | TF |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V |
| Weight | 147 lbs. |
Shipping Info:
| Ship weight (kg) | 66.15 |
| Ship height (cm) | 36.2 |
| Ship length (cm) | 57.48 |
| Ship width (cm) | 40.97 |
| Country of Origin | MX |
Product Details:
- Supersedes Leeson - G131594.00 / C184T34WC6A
- Eff 100%: 89.5
- Eff 75%: 88.9
- Bearing OPE: 6206
- CC Number: CC005A
- Bearing PE: 6309
- Nameplate: 081341
- Winding: K2132124
- GROUP: 2
- Paint: WHITE - LEESON (EPOXY)
Product Variants
| Product | Model | Voltage | Hp | Finish | Frame | Nameplate Rpm | Full Load Amps | Service Factor | Shaft Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
113019.00 | 208-230/460V | 3/4 hp | Epoxy Coated | 56C | 1725 RPM | 1.2A | 1.15 | 5/8" | €1,226.31 | |
 |
113022.00 | 208-230/460V | 3/4 hp | Epoxy Coated | 56C | 3450 RPM | 1.1A | 1.15 | 5/8" | €657.42 | |
 |
113023.00 | 230/460V | 1 hp | Epoxy Coated | 56C | 3450 RPM | 1.3A | 1.15 | 5/8" | €1,084.50 | |
 |
113024.00 | 230/460V | 1 1/2 hp | Epoxy Coated | 56C | 3450 RPM | 1.9A | 1.15 | 5/8" | €1,337.51 | |
 |
113473.00 | 208-230/460V | 1/2 hp | Epoxy Coated | 56C | 1725 RPM | 1.8A | 1.15 | 5/8" | €909.17 | |
 |
113649.00 | 208-230/460V | 1/4 hp | Epoxy Coated | 56C | - | 1.1A | 1.15 | 5/8" | €792.46 | |
 |
116644.00 | 208-230/460V | 1/2 hp | Epoxy Coated | 56C | 1725 RPM | 2A | 1.15 | 5/8" | €1,020.64 |
