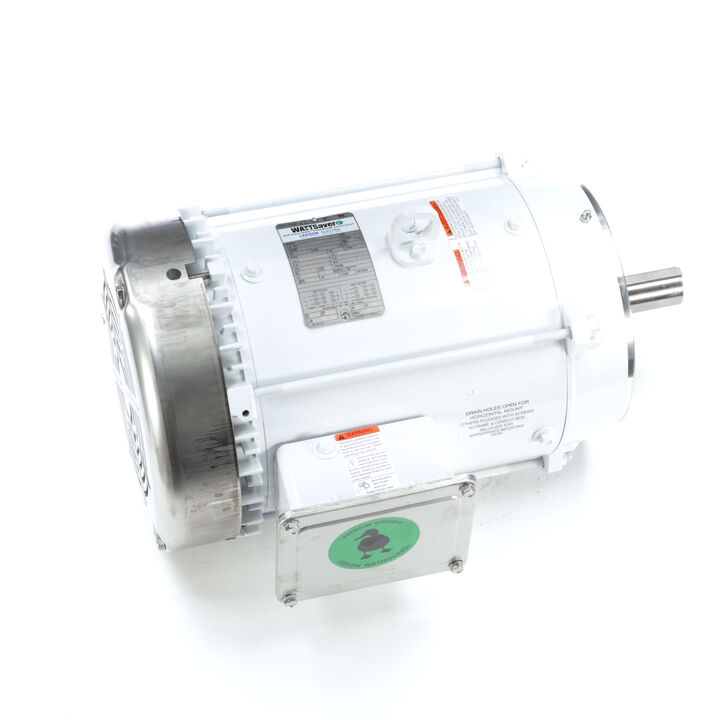

LEESON 141266.00 C213T17WC4A General Purpose Motor, 7.50/5 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 RPM
Get it by Tuesday, Aug 25
5.00% off
€3,366.70 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Washdown Motor |
| Ambient Temp. | 104°F |
| Application | Washdown |
| Bearing Type | Ball |
| Body Dia. | 11 1/2" |
| Bolt Circle Dia. | 7 1/4" |
| Cc Number | CC005A |
| Code | H |
| Color | White |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Drive End Bearing Size | 6309 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 91.7% |
| Enclosure Type | Tefc |
| Finish | Epoxy Coating |
| Frame | 213TC |
| Frame Material | Rolled Steel |
| Frame Type | 213TC |
| Frequency | 60 Hz |
| Full Load Amps | 19.6/9.8A |
| Grease Type | Polyrex EM |
| Hp | 7 1/2 hp |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Kw | 5.6 kW |
| Length Less Shaft | 16 5/8" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Washdown |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CWSE |
| Motor Shaft Rotation | Counter Clockwise Shaft End |
| Motor Thermal Protection | None |
| Motor Type | Three Phase |
| Mounting Type | Round |
| Nameplate Speed | 1765 RPM |
| Nema Design | B |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 91.7% |
| Opp Drive End Bearing Size | 6206 |
| Opp. Drive End Bearing Type | Ball |
| Packaging | F |
| Phase | 3 |
| Power | 5.6 kW |
| Power Factor | 78.3 |
| Product Type | Washdown Brake Motor |
| Rotation | Reversible |
| Service Factor | 1.15 |
| Shaft Dia. | 1 3/8" |
| Shaft Length | 3 3/25" |
| Speed | 1700-1800 RPM |
| Thermal Protection | None |
| Type | TF |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V |
Shipping Info:
| Ship weight (kg) | 60.75 |
| Ship height (cm) | 30.61 |
| Ship length (cm) | 57.15 |
| Ship width (cm) | 40.64 |
| Country of Origin | MX |
Product Details:
- Supersedes Leeson - G140467.00 / C213T17WC3A
- Bearing OPE: 6206
- CC Number: CC005A
- Bearing PE: 6309
- Nameplate: 081341
- Winding: K2134279
- GROUP: 2
- Paint: WHITE - LEESON (EPOXY)
- S. F Amps: 22.8 / 11.4
- Eff 100%: 91.7 / 90.2
Product Variants
| Product | Model | Voltage | Hp | Shaft Dia. | Finish | Mounting Type | Frequency | Full Load Amps | Nameplate Speed | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
113019.00 | 208-230/460V | 3/4 hp | 5/8" | Epoxy Coating | Round | 60 Hz | 1.2A | 1725 RPM | €1,248.89 | |
 |
113022.00 | 208-230/460V | 3/4 hp | 5/8" | Epoxy Coating | Round | 60 Hz | 1.1A | 3450 RPM | €657.42 | |
 |
113023.00 | 230/460V | 1 hp | 5/8" | Epoxy Coating | Round | 60 Hz | 1.3A | 3450 RPM | €1,067.86 | |
 |
113024.00 | 230/460V | 1 1/2 hp | 5/8" | Epoxy Coating | Round | 60 Hz | 1.9A | 3450 RPM | €1,455.90 | |
 |
113473.00 | 208-230/460V | 1/2 hp | 5/8" | Epoxy Coating | Round | 60 Hz | 1.8A | 1725 RPM | €913.38 | |
 |
113649.00 | 208-230/460V | 1/4 hp | 5/8" | Epoxy Coating | Round | 60 Hz | 1.1A | - | €830.42 | |
 |
116644.00 | 208-230/460V | 1/2 hp | 5/8" | Epoxy Coating | Round | 60 Hz | 2A | 1725 RPM | €1,097.76 |
