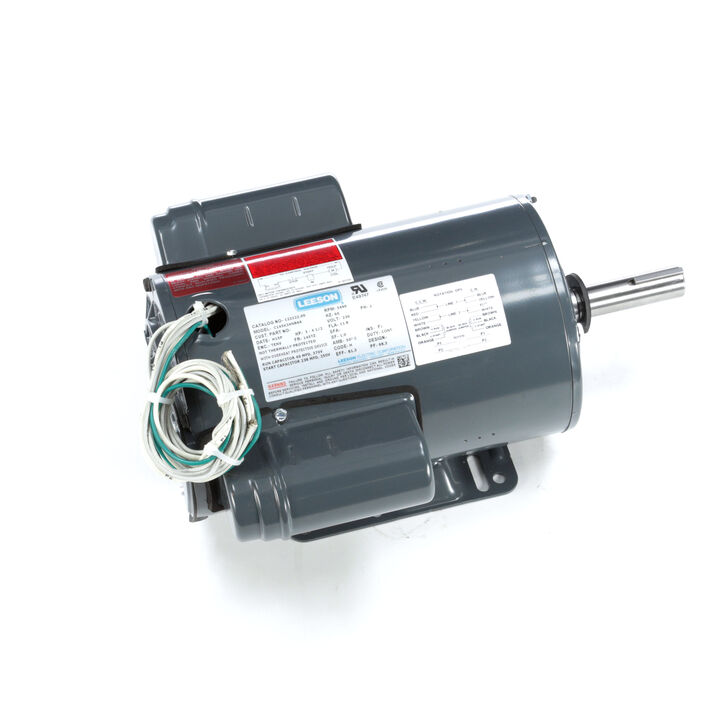

LEESON 141220.00 C215K34NB73A Crop Dryer Motor, 1 Phase, 60 Hz, 230V, 3600 RPM
Get it by Monday, Aug 24
€2,425.96 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Crop Dryer Motor |
| Composition | Steel |
| Drive End Bearing Size | 6307 |
| Efficiency | 82.5% |
| Electrical Phase | 1 |
| Enclosure | Totally Enclosed Air Over |
| Family Series | Leeson Motors |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 45.8A |
| Insulation Class | Class F |
| Kw | 7.5 kW |
| Mounting Type | Foot Mount |
| No. Of Poles | 2 |
| Nominal Voltage | 240V AC |
| Opp Drive End Bearing Size | 6206 |
| Phase | 1 |
| Product Datasheet | leeson-141220-00.pdf |
| Service Factor | 1.5 |
| Shaft Dia. | 1.125 |
| Shaft Length | 3.75 |
| Speed | 3475 RPM |
| Type | Farm Duty |
| Voltage | 230V |
| Voltage Ac | 230V AC |
Shipping Info:
| Ship weight (kg) | 61.2 |
| Ship height (cm) | 35.56 |
| Ship length (cm) | 56.36 |
| Ship width (cm) | 41.91 |
| Country of Origin | MX |
