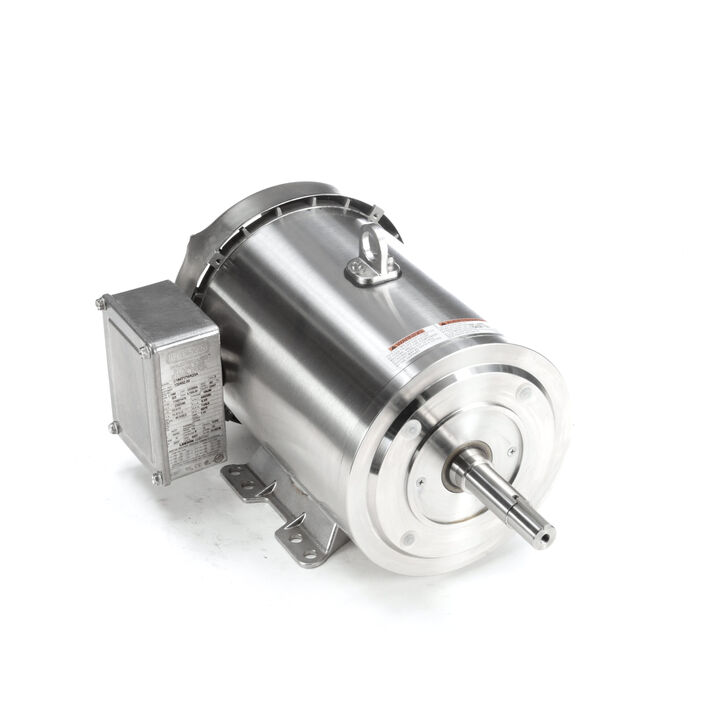

LEESON 132452.00 C184T17WK23A Washdown Motor 50-60 Hertz | AJ2RXN 48ZF75 / C184T17WK23A

LEESON 132452.00 C184T17WK23A Washdown Pump Motor, 5/3 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 and 1500 RPM

Item: AJ2RXNModel: 132452.00Cross Ref: 48ZF75 / C184T17WK23A
Check Availability
In Stock

Get it by Wednesday, Dec 24

€4,027.46
10.00% off
€3,624.72 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Washdown Motor
Ambient Temp. 104°F
Application Washdown
Bearing Type Ball
Body Dia. 8.38"
Bolt Circle Dia. 5 7/8"
Cc Number CC005A
Code G
Drive End Bearing Size 6207
Drive End Bearing Type Ball
Duty Cycle Continuous
Efficiency 89.5%
Enclosure Type Tefc
Endshield Material Stainless Steel
Finish Unfinished
Frame 184JM
Frame Material Stainless Steel
Frame Type 184JM
Frequency 60 Hz
Frequency 50/60 Hz
Full Load Amps 12.6/6.3A
Grease Type Polyrex EM
Hp 5 hp
Hz 50/60 Hz
Includes Removable Hydrophobic Breathers In Opposite Shaft Endbell
Ins. Class Class F
Insulation Class Class F
Kw 3.7 kW
Length Less Shaft 13"
Manufacturers Warranty Length 1 yr.
Max. Ambient Temp. 40°C
Motor Application Washdown
Motor Bearings Ball
Motor Design 3-Phase
Motor Frame Material Stainless Steel
Motor Mounting Position Horizontal
Motor Mounting Type Rigid Base
Motor Service Factor 1.15
Motor Shaft Design Keyed And Drilled On Center
Motor Shaft Rotation Counter Clockwise Shaft End
Motor Shaft Rotation CWSE
Motor Sub Application Crop Dryer
Motor Type Three Phase
Mounting Type Rigid Base
Nameplate Rpm 1760 RPM
Nema Design B
No. Of Phase 3
No. Of Poles 4
No. Of Speeds 1
Nominal Efficiency 89.5%
Opp. Drive End Bearing Size 6207
Opp. Drive End Bearing Type Ball
Overall Length 17 1/4"
Packaging F
Power 3.7 kW
Power Factor 83
Product Type Washdown Motor
Removable Base No
Rotation Reversible
Rpm 1700-1800 RPM
Service Factor 1.15
Shaft Dia. 7/8"
Shaft Length 4.21"
Shaft Material Stainless Steel
Standards Bissc, Ce, Csa, Ul
Thermal Protection None
Type TF
Usable @ 200v No
Usable @ 208v No
Voltage 230/460V
Weight 100 lbs.

Shipping Info:

Ship weight (kg) 45
Ship height (cm)32.72
Ship length (cm)45.57
Ship width (cm)33.17
Country of OriginMX

Product Details:

    • Supersedes Leeson - G131998.00 / C184T17WK18A
    • Eff 75%: 90.2
    • Bearing OPE: 6207
    • CC Number: CC005A
    • Bearing PE: 6207
    • Nameplate: 081119
    • Winding: T84170
    • GROUP: 3
    • S. F Amps: 14.4 / 7.2
    • Eff 100%: 89.5 / 88.5

Product Variants

ProductModelVoltageHpNameplate RpmFrameFull Load AmpsOverall LengthPower FactorThermal ProtectionPrice
LEESON 122211.00 CZ145T17WK59A Jet Pump Motor 50-60 Hertz | AJ2RPZ 48ZF71 / CZ145T17WK59A 122211.00208-230/460V2 hp1745 RPM145JM2A17"75.6No Protection€3,298.37
LEESON 122213.00 CZ145T34WK41A Jet Pump Motor 50-60 Hertz | AJ2RQB 48ZF72 / CZ145T34WK41A 122213.00230/460V3 hp3490 RPM145JM4A16 1/2"86No Protection€2,362.97

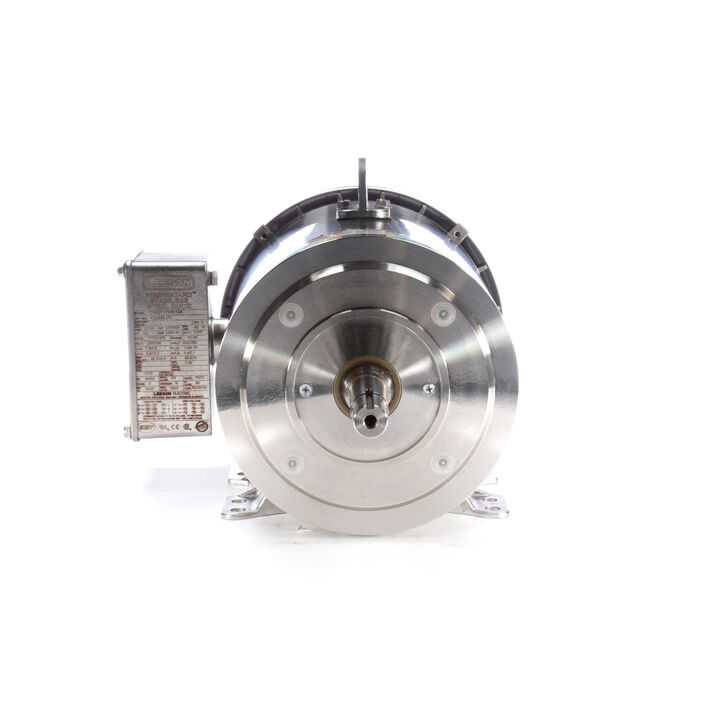

LEESON 132450.00 C182T17WK19A Washdown Motor 50-60 Hertz | AJ2RXL 48ZF73 / C182T17WK19A 132450.00230/460V3 hp1770 RPM182JM7.8/3.9A16 3/16"80.5None€4,269.93

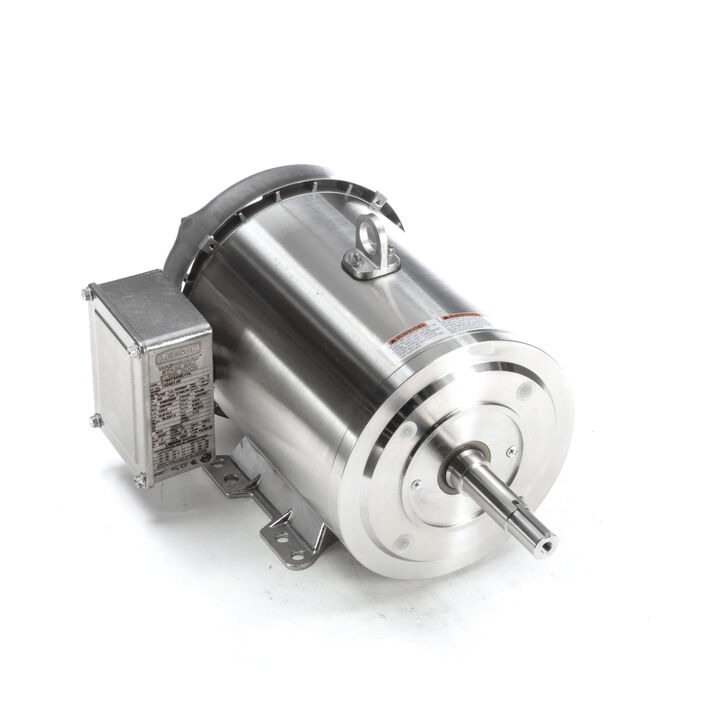

LEESON 132451.00 C184T34WK17A Washdown Motor 50-60 Hertz | AJ2RXM 48ZF74 / C184T34WK17A 132451.00230/460V5 hp3495 RPM184JM12/6A16 3/4"89.5None€4,672.13

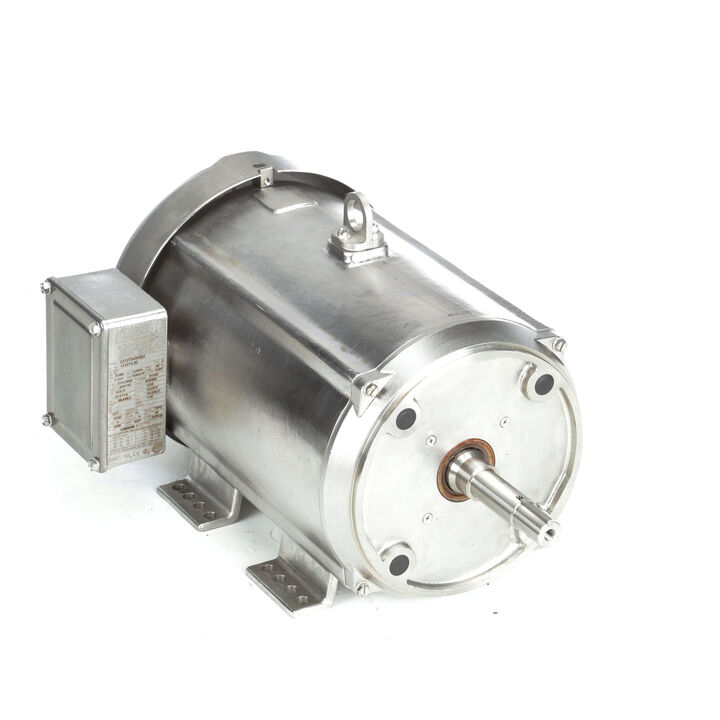

LEESON 141274.00 C213T34WK8A General Purpose Motor 50-60 Hertz | AJ2TCB 48ZF76 / C213T34WK8A 141274.00230/460V7 1/2 hp3525 RPM213JM18.6/9.3A19 13/16"84.6None€4,568.07
