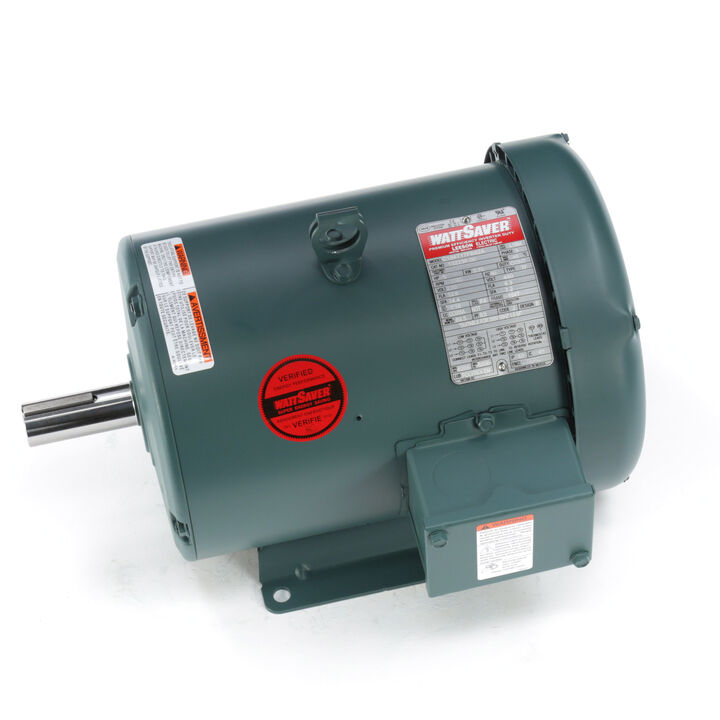

LEESON 132236.00 C184T17FB62A General Purpose Motor, 5 HP, 3 Phase, 60 Hz, 230/460V, 1800 RPM
Get it by Monday, Dec 22
€910.77 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Code | J |
| Drive End Bearing Size | 6206 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 89.5% |
| Enclosure Type | Tefc |
| Frame | 184T |
| Frame Material | Rolled Steel |
| Frame Type | 184T |
| Frequency | 60 Hz |
| Full Load Amps | 12.6/6.3A |
| Grease Type | Polyrex EM |
| Hp | 5 hp |
| Insulation Class | Class F |
| Kw | 3.7 kW |
| Lubrication | Polyrex EM |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Shaft Rotation | Reversible |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Type | Squirrel Cage Induction Run |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1800 RPM |
| Nema Design | B, J |
| No. Of Poles | 4 |
| Opp. Drive End Bearing Size | 6205 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 3.7 kW |
| Packaging | B |
| Phase | 3 |
| Power Factor | 83 |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 1 1/8" |
| Shaft Length | 2 3/4" |
| Thermal Protection | Thermostat |
| Type | TF |
| Voltage | 230/460V |
Shipping Info:
| Ship weight (kg) | 40.5 |
| Ship height (cm) | 31.45 |
| Ship length (cm) | 51.13 |
| Ship width (cm) | 37.16 |
| Country of Origin | MX |
Product Details:
- Eff 100%: 89.5
- Bearing OPE: 6205
- CC Number: CC005A
- Bearing PE: 6206
- Nameplate: 081298
- Winding: T84170
- GROUP: 3
- Paint: GREEN - LEESON WATTSAVER
- S. F Amps: 14.4 / 7.2
