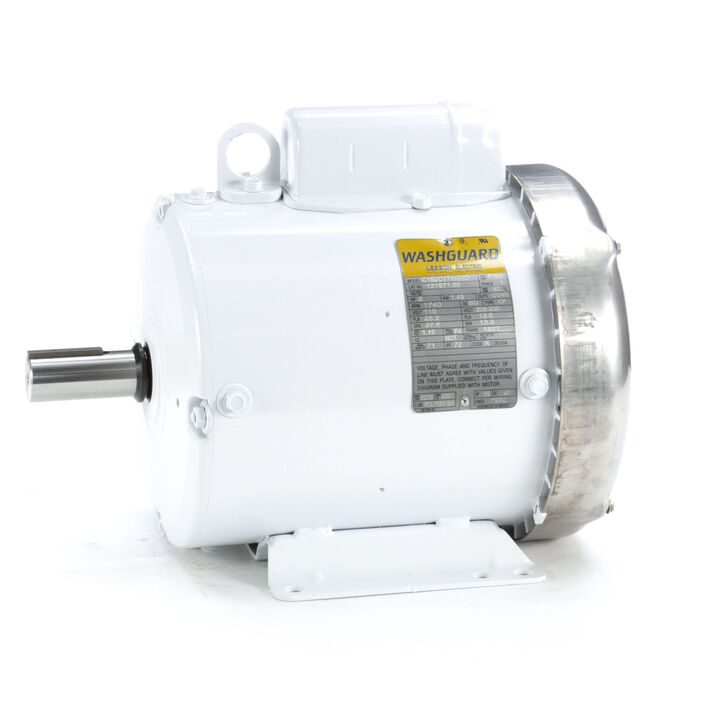

LEESON 131571.00 C182C17WB3D General Purpose Motor, 2 HP, 1 Phase, 60 Hz, 115/208-230V, 1800 RPM
Get it by Tuesday, Dec 23
10.00% off
€2,087.01 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Washdown Motor |
| Ambient Temp. | 104°F |
| Application | Washdown |
| Assembly | 180-005 |
| Bearing Type | Ball |
| Body Dia. | 8.38" |
| Code | K |
| Color | White |
| Drive End Bearing Size | 6207 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 71% |
| Enclosure Type | Tefc |
| Endshield Material | Cast Aluminum |
| Finish | Epoxy Coated |
| Frame | 182T |
| Frame Material | Rolled Steel |
| Frame Type | 182T |
| Frequency | 60 Hz |
| Full Load Amps | 12.6A |
| Grease Type | Polyrex EM |
| Hp | 2 hp |
| Hz | 60 Hz |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Kw | 1.5 kW |
| Length Less Shaft | 10 5/8" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Motor Application | Washdown |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Capacitor Start |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1740 RPM |
| Nema Design | N |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 71% |
| Opp. Drive End Bearing Size | 6205 |
| Opp. Drive End Bearing Type | Ball |
| Overall Length | 13 7/16" |
| Packaging | B |
| Phase | 1 |
| Power | 1.49 kW |
| Power Factor | 72 |
| Product Type | Washdown Motor |
| Removable Base | No |
| Rotation | Selective Counter Clockwise |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 1 1/8" |
| Shaft Length | 2 3/4" |
| Shaft Material | Stainless Steel |
| Standards | Bissc, Ce, Csa, Ul |
| Thermal Protection | None |
| Type | CF |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 115/208-230V |
| Weight | 63 lbs. |
Shipping Info:
| Ship weight (kg) | 28.35 |
| Ship height (cm) | 32.72 |
| Ship length (cm) | 45.57 |
| Ship width (cm) | 33.17 |
| Country of Origin | MX |
Product Details:
- Eff 100%: 71
- Bearing OPE: 6205
- CC Number: EXEMPT
- Bearing PE: 6207
- Nameplate: 081293
- Winding: C8420
- GROUP: 3
- Paint: WHITE - LEESON (EPOXY)
- S. F Amps: 27.6 / 13.8
