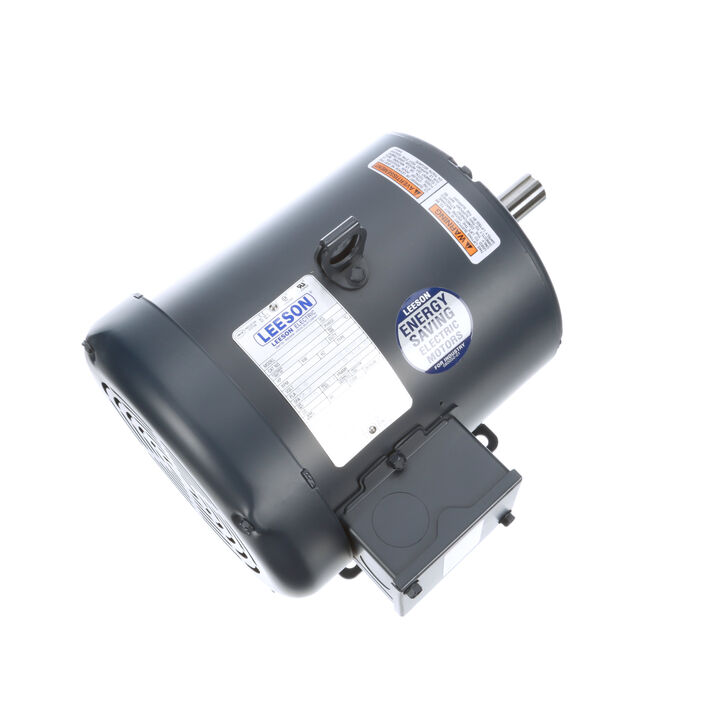

LEESON 131480.00 C182T28FB3C Voltage Motor, 3 HP, 3 Phase, 50 Hz, 220/380/440V, 3000 RPM
Get it by Monday, Aug 24
€871.92 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Voltage Motor |
| Ambient Temp. | 40°C |
| Application | Conveyors, Fans, Blowers, Mixers, Compressors, Extractors, Printing Presses |
| Compatible Part/model Number | Baldor M3610T-50 |
| Duty Cycle | Continuous |
| Electrical Phase | 1 |
| Enclosure | IP54 |
| Enclosure Type | IP |
| Family Series | Leeson Motors, Special Voltage Series |
| Frame Material | Rolled Steel |
| Full Load Amps | 8.4/4.8/4.2A |
| Height | 11 1/4" |
| Ins. Class | Class F |
| Kilowatts | 2.2 kW |
| Length | 14 5/8" |
| Length Less Shaft | 10 3/4" |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW, CCW |
| Mounting Type | Foot Mount, Rigid |
| Nameplate Speed | 2850 RPM |
| Nema Design | B |
| No. Of Poles | 2 |
| Nominal Efficiency | 82.5% |
| Nominal Voltage | 208/240/480V AC |
| Overall Length | 13 7/16" |
| Phase | 3 |
| Product Datasheet | leeson-131480-00.pdf |
| Shaft Dia. | 1 1/8" |
| Shaft Length | 2 3/4" |
| Speed | 3000 RPM |
| Type | General Purpose |
| Voltage | 220/380/440V AC |
| Width | 10 1/2" |
Shipping Info:
| Ship weight (kg) | 27.45 |
| Ship height (cm) | 32.72 |
| Ship length (cm) | 45.57 |
| Ship width (cm) | 33.17 |
| Country of Origin | MX |
