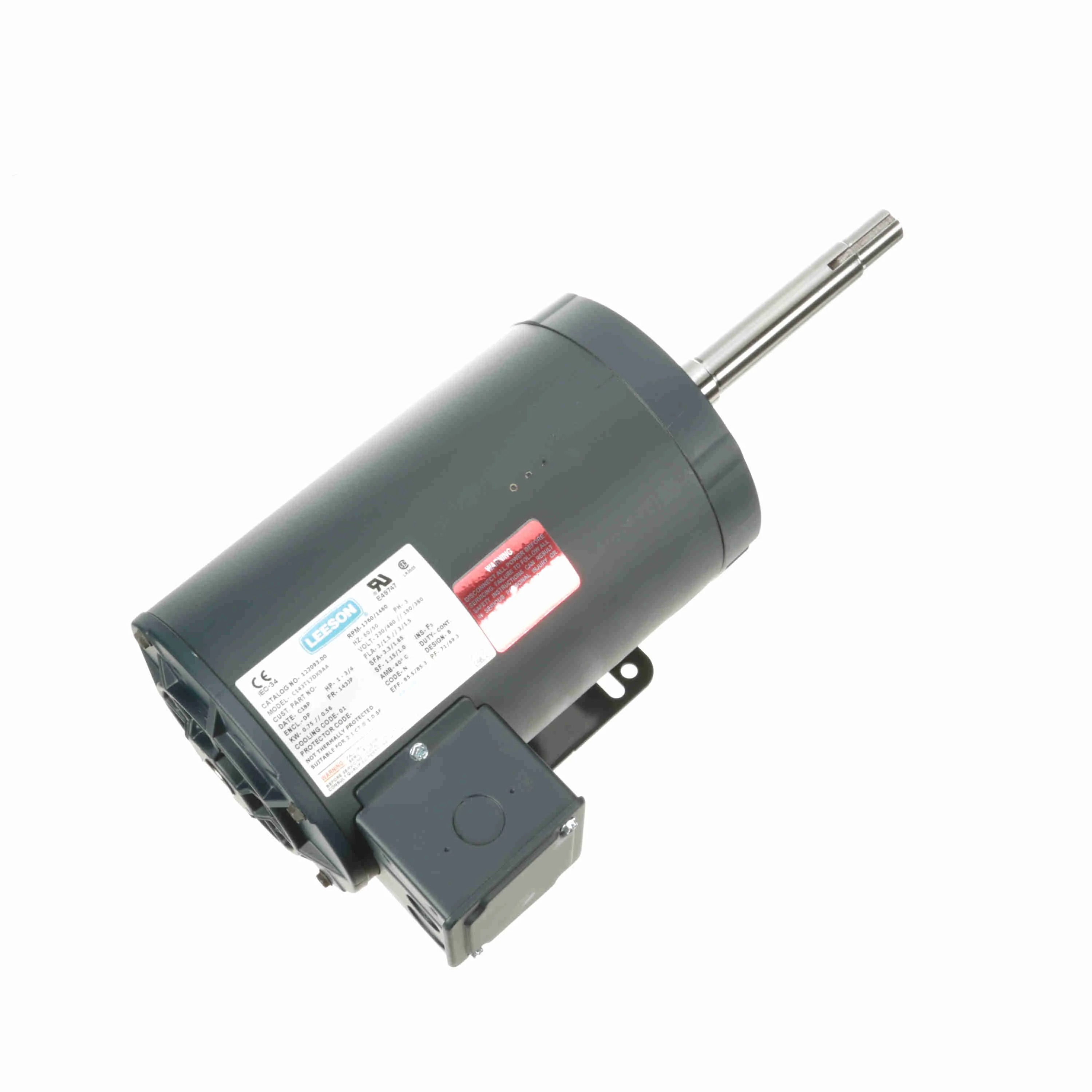

LEESON 122093.00 C143T17DK9AA Close-Coupled Pump Motor, 1 And 0.75 HP, 60 And 50 Hz, 1800 And 1500 RPM
Get it by Tuesday, Aug 25
€161.27 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Close-Coupled Pump Motor |
| Composition | Steel |
| Drive End Bearing Size | 6206 |
| Efficiency | 85.5% |
| Electrical Phase | 3 |
| Enclosure | Drip Proof |
| Enclosure Type | Open Dripproof |
| Family Series | Leeson Motors |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 3A |
| Insulation Class | Class F |
| Kw | 0.75 kW |
| Mounting Type | Foot Mount |
| No. Of Poles | 4 |
| Nominal Voltage | 240/480V AC |
| Opp Drive End Bearing Size | 6203 |
| Phase | 3 |
| Product Datasheet | leeson-122093-00.pdf |
| Service Factor | 1.15 |
| Shaft Dia. | 0.875 |
| Shaft Length | 7.34 |
| Speed | 1760 RPM |
| Type | Pump |
| Voltage | 230/460V |
| Voltage Ac | 230/460V AC |
Shipping Info:
| Ship weight (kg) | 20.7 |
| Ship height (cm) | 20.62 |
| Ship length (cm) | 50.5 |
| Ship width (cm) | 26.04 |
| Country of Origin | MX |
