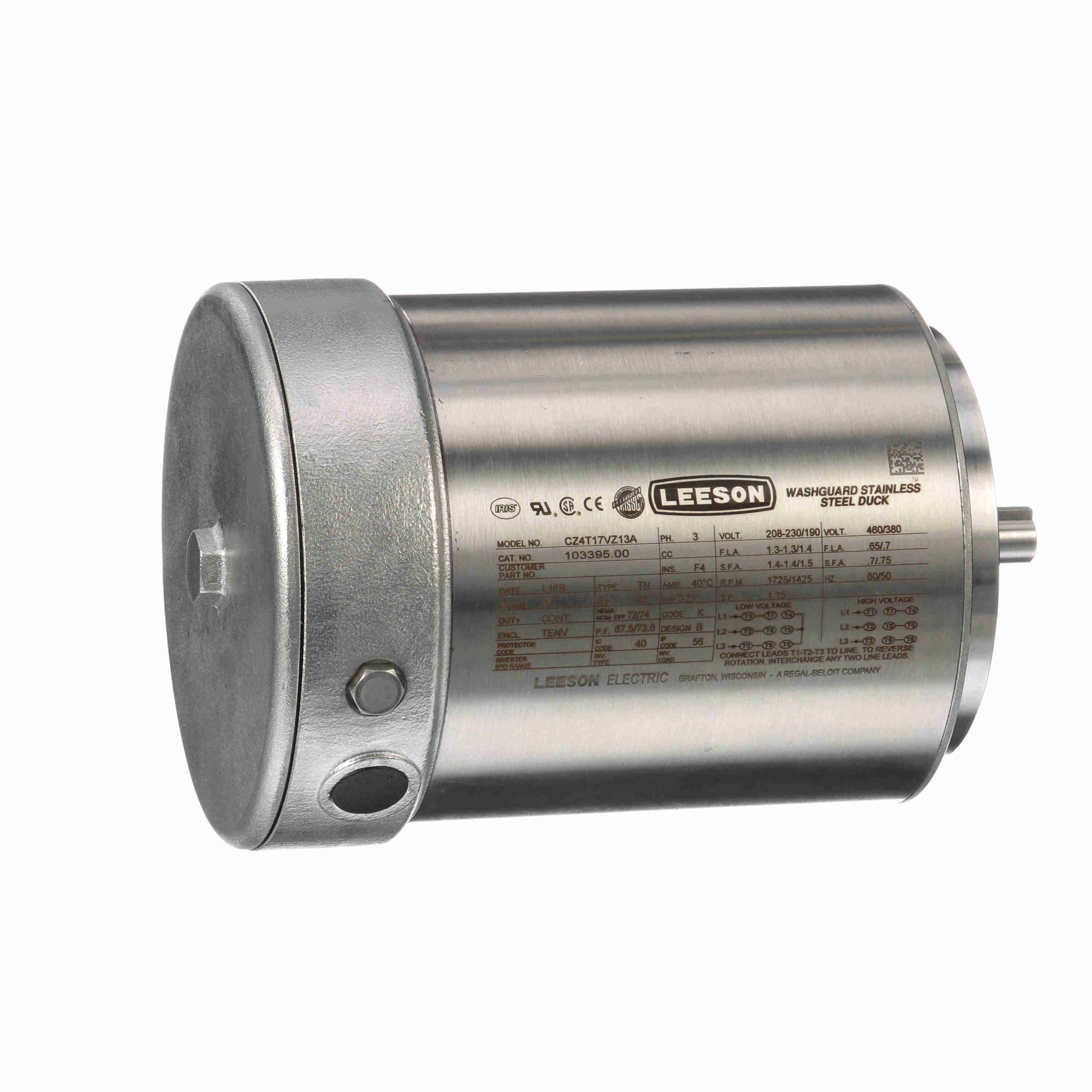

LEESON 103395.00 CZ4T17VZ13A General Purpose Motor, 1800 RPM, 208-230/460V, 71 Frame
Get it by Friday, Aug 21
€489.96 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Amps | 1.3-1.3/0.65A |
| Application | Dairies, Beverage Plants, Food Processing, Slaughter Houses, Bakeries, Pharmaceu |
| Bearing Type | Double Sealed |
| Composition | Steel |
| Duty Cycle | Continuous |
| Efficiency | 70.5% |
| Electrical Phase | 3 |
| Enclosure | Totally Enclosed Non Ventilated |
| Enclosure Type | Tenv (Totally Enclosed Non Ventilated) |
| Family Series | Leeson Motors, IEC Washguard Series |
| Frame | IEC 71 |
| Frame Size | 71 |
| Full Load Amps | 1.3A |
| Full Load Efficiency | 70.5 |
| Hp | 1/3 hp |
| Kw | 0.25 kW |
| Mounting Location | C-Face Footless |
| Mounting Type | Flange B14 |
| No. Of Poles | 4 |
| Nominal Voltage | 208/240/480V AC |
| Overall Length | 9.83" |
| Phase | 3 |
| Power | 33/100 hp |
| Product Datasheet | leeson-103395-00.pdf |
| Service Factor | 1.15 |
| Shaft Dia. | 0.562 |
| Shaft Length | 1.18 |
| Speed | 1701-1800 RPM , 1800 RPM |
| Type | IEC, Washdown |
| Voltage | 230/460V |
Shipping Info:
| Ship weight (kg) | 13.5 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
