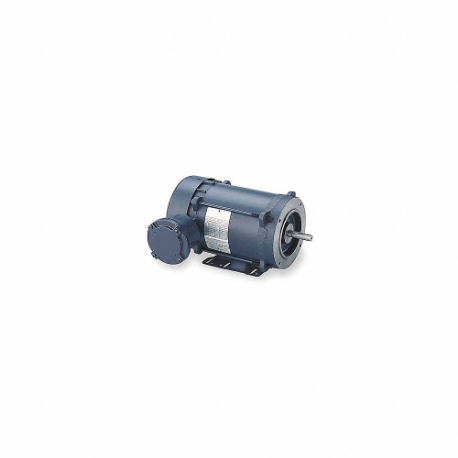

LEESON 056T17G15612 Hazardous Location Motor, 1 HP, 1800 RPM, 230/460 VAC
Get it by Tuesday, Sep 1
5.00% off
€1,155.17 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hazardous Location Motor |
| Ambient Temp. | 104°F |
| Bearing Type | Ball |
| Bearings | Ball |
| Cc Number | CC003A |
| Conduit Box Location | Exterior |
| Cord Length | 18" |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency | 86.5% |
| Frame | 56C |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 3.2/1.6A |
| Hazardous Location Class | 1 C, D / 2 E, F, G |
| Hp | 1 hp |
| Ins. Class | Class B |
| Lead Length | 18" |
| Length Less Shaft | 14 1/16" |
| Max. Ambient Temp. | 104°F |
| Motor Application | Hazardous Location |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face, Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW, CCW |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Thermal Protection | Auto |
| Motor Type | Three Phase |
| Mounting Type | Face, Base |
| Nameplate Speed | 1725 RPM |
| Nema Design | B |
| No. Of Speed | 1 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 86.5% |
| Overall Length | 15 15/16" |
| Phase | 3 |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Temp. Code | T3B |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
Shipping Info:
| Ship weight (kg) | 22.05 |
| Ship height (cm) | 18.67 |
| Ship length (cm) | 40.49 |
| Ship width (cm) | 20.83 |
| Country of Origin | MX |
