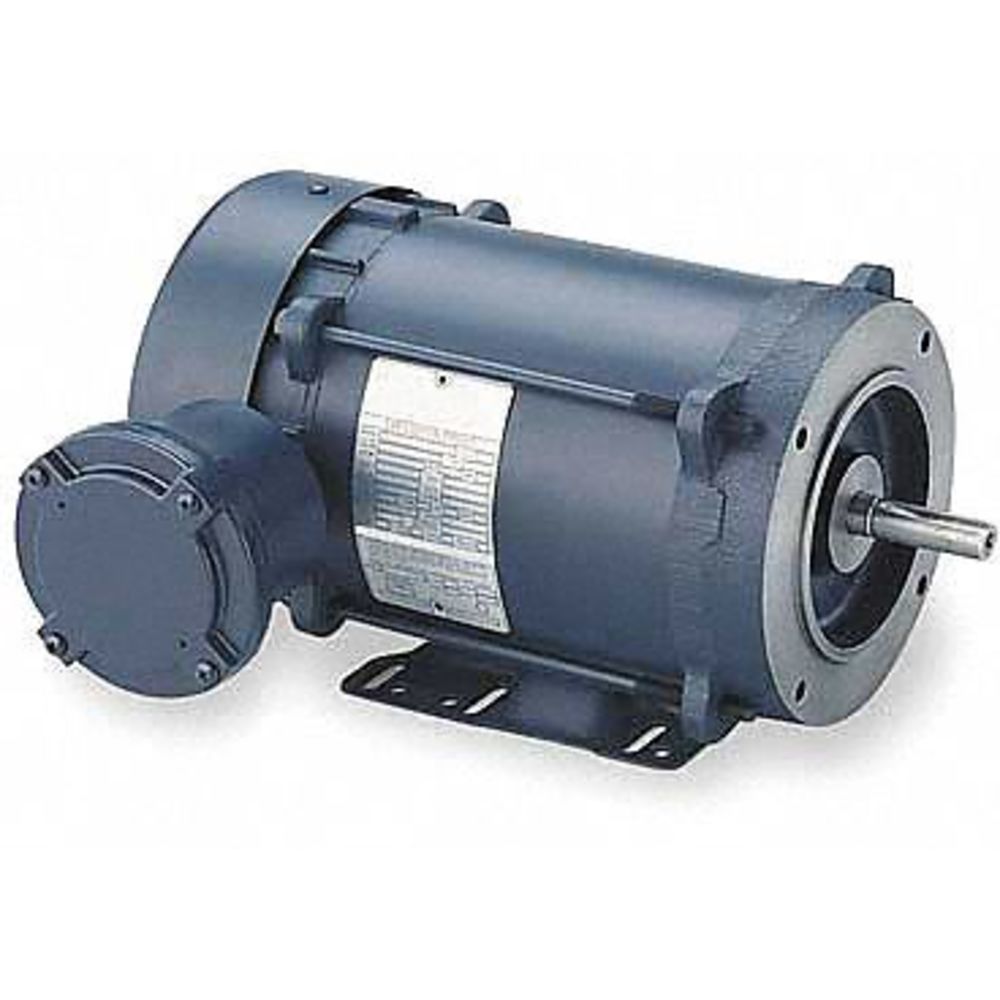

LEESON 056T17G15610 Hazardous Location Motor, 3 Phase, 2 HP, 1800 RPM
Get it by Tuesday, Aug 25
5.00% off
€1,267.15 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hazardous Location Motor |
| Ambient Temp. | 40°C |
| Bearings | Ball |
| Cc Number | CC003A |
| Conduit Box Location | Exterior |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Frame | 56C |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 6/3A |
| Hazardous Location Class | 1 C, D / 2 E, F, G |
| Hp | 2 hp |
| Insulation Class | Class B |
| Lead Length | 18" |
| Length Less Shaft | 14 9/16" |
| Max. Ambient Temp. | 104°F |
| Motor Application | Hazardous Location |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face, Base |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Shaft Rotation | CW, CCW |
| Motor Thermal Protection | Auto |
| Motor Type | Three Phase |
| Nameplate Speed | 1725 RPM |
| Nema Design | B |
| No. Of Speed | 1 |
| Nominal Efficiency | 85.5% |
| Number | Cc003A |
| Overall Length | 16 7/16" |
| Phase | 3 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Temp. Code | T3B |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
Shipping Info:
| Ship weight (kg) | 24.48 |
| Ship height (cm) | 18.67 |
| Ship length (cm) | 41.76 |
| Ship width (cm) | 20.83 |
| Country of Origin | MX |
