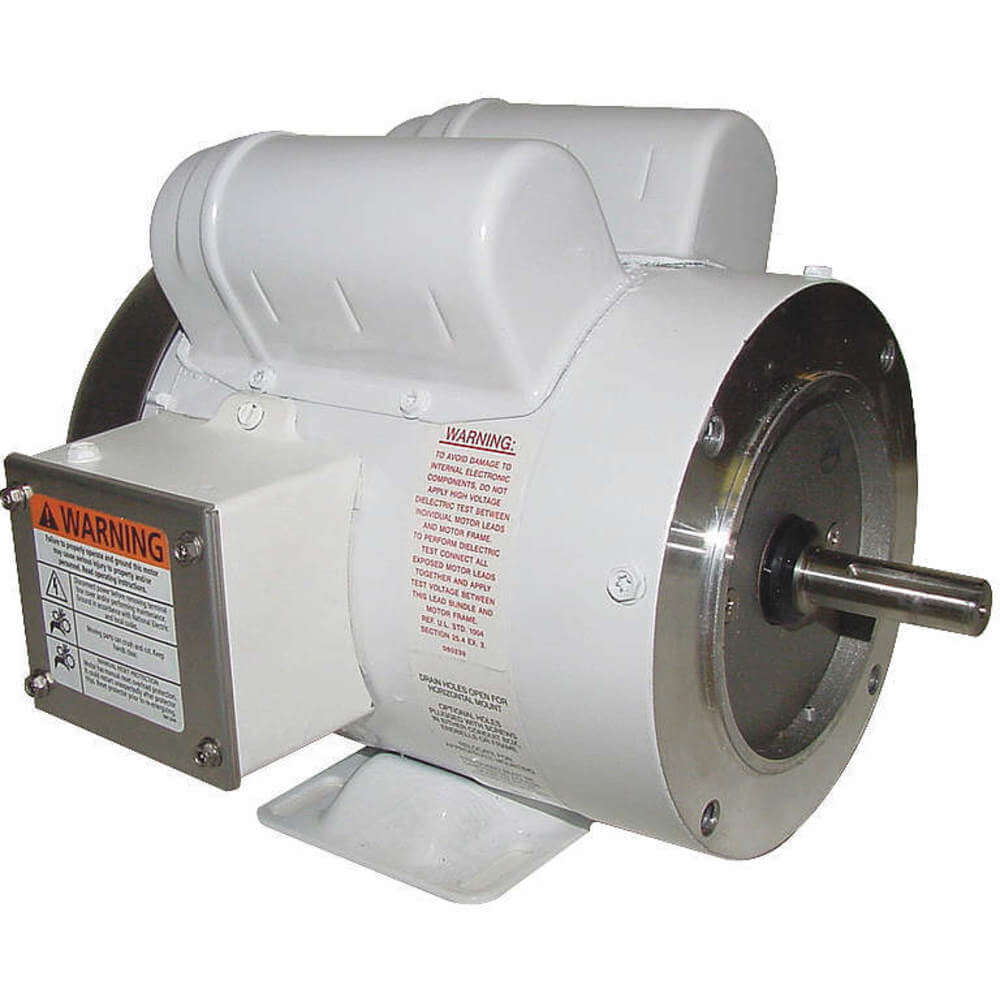

LEESON 056C17W15326 Washdown Motor, 1/2 HP, 1725 RPM, TEFC, 56C Frame
Get it by Monday, Mar 2
5.00% off
€958.77 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Washdown Motor |
| Ambient Temp. | 104°F |
| Application | Washdown |
| Bearing Type | Ball |
| Bearings | Ball |
| Body Dia. | 6 1/2" |
| Color | White |
| Conduit Box | Cast Oversized Gasketed |
| Drain Plug | (4) Each End, (2) In Conduit Box |
| Drain Plugs | (4) Each End, (2) Conduit Box |
| Drain Plugs | (4) Each End, (2) In Conduit Box |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Endshield Finish | Aluminum , Epoxy Painted |
| Endshields | Epoxy Painted Aluminium |
| Endshields | Epoxy Painted Aluminum |
| Finish | Epoxy Coated |
| Frame | 56C |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 8.8/4.4A |
| Hp | 1/2 hp |
| Insulation Class | Class F |
| Length Less Shaft | 9 1/4" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Washdown |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Face/Base |
| Motor Mounting Type | Face, Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Capacitor Start |
| Mounting Type | Face/Base |
| Nameplate Rpm | 1725 RPM |
| Nema Design | N |
| No. Of Speeds | 1 |
| Nominal Efficiency | 66% |
| Number Of Speeds | 1 |
| Overall Length | 11 3/16" |
| Phase | 1 |
| Product Type | Washdown Motor |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Shaft Material | Stainless Steel |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 115/208-230V AC |
Shipping Info:
| Ship weight (kg) | 11.7 |
| Ship height (cm) | 21.97 |
| Ship length (cm) | 28.35 |
| Ship width (cm) | 16.51 |
| HS code | 8501404040 |
| Country of Origin | US |
