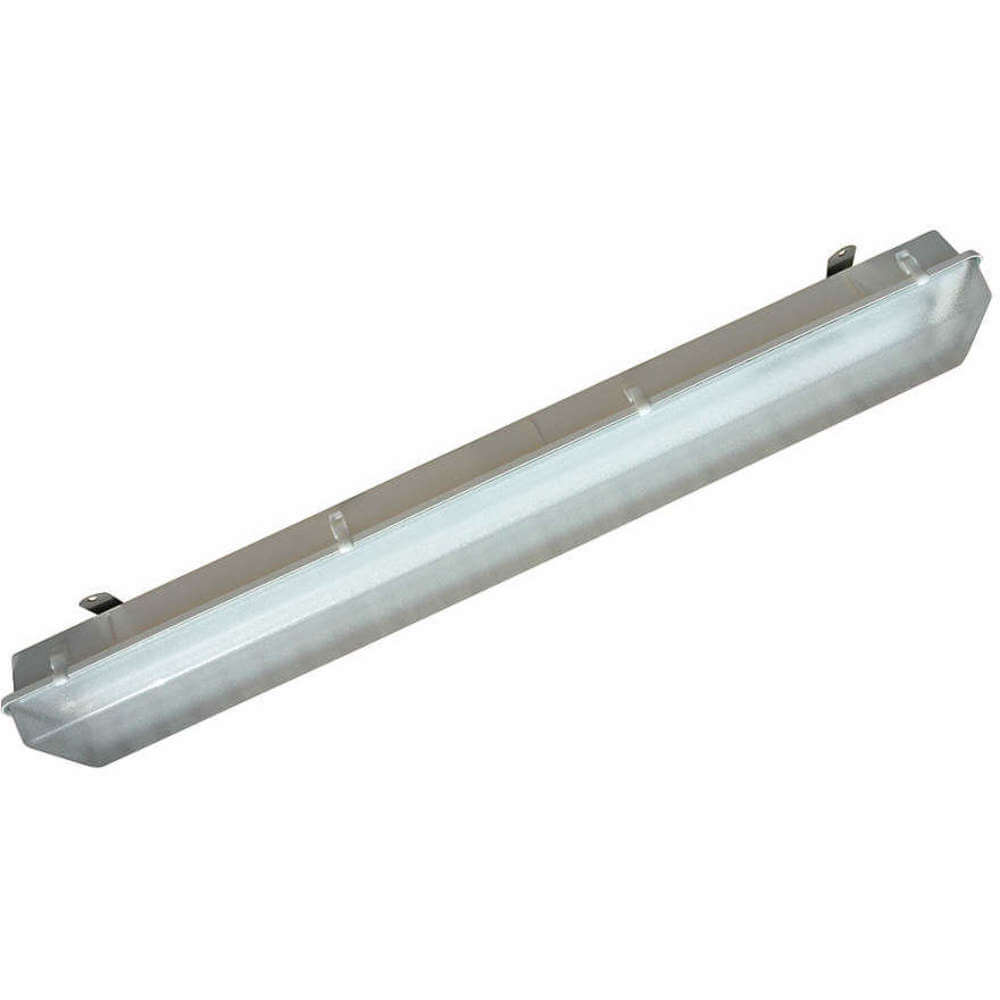

LARSON ELECTRONICS LLC HALP-EMG-48-3L-T8-SFC Hazardous Location Fixture T8 96w
Get it by Thursday, Dec 18
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hazardous Lighting Fixture |
| Ambient Temp. Range | -22°F to +158°F |
| Baa Compliant | Yes |
| Ca Title 24 Compliant | Yes |
| Color | White |
| Color Temperature | 4100 K |
| Dimmable | No |
| Emergency Battery Backup | Yes |
| Finish | White |
| Fixture Ballast Type | Electronic |
| Fixture Rated Life | 24000 hrs. |
| Fixture Type | Hazardous Location |
| Fixture Voltage | 120/208/240/277V AC |
| Fixture Wattage | 96 W |
| For Bulb Shape | T8 |
| For Bulb Type | Fluorescent |
| For Max. Bulb Wattage | 32 W |
| For No. Of Bulbs | 3 |
| Height | 5.094" |
| Housing Color | White |
| Housing Material | Polyester |
| Includes | 3/4" Npt Hub Size, Emergency Ballast, Pendant Mount Brackets, T8 Bulbs |
| Ingress Protection Rating | 67 |
| Lamp Included | Yes |
| Lamp Type | Fluorescent |
| Lamp Watts | 32 W |
| Length | 49.969" |
| Lens Material | Acrylic |
| Lighting Certification | Unrated |
| Lighting Technology | Fluorescent |
| Lumens | 8850 lm |
| Lumens Per Watt | 92 lm/W |
| Max. Ambient Temp. | 158°F |
| Max. Fixture Wattage | 96 W |
| Min. Ambient Temp. | -22°F |
| Mounting | Surface, Suspended |
| Mounting Location | Surface |
| Number Of Ballasts | 1 |
| Number Of Bulbs | 3 |
| Number Of Lamps | 3 |
| Overall Height | 7" |
| Overall Length | 52" |
| Overall Width | 8 1/4" |
| Safety Rating | Class I, Division 2, Groups A, B, C, D, Class II, Division 2, Groups F, G |
| Standards | Meets Us Coast Guard Specifications |
| Temperature Code | T4A |
| Width | 7.969" |
Shipping Info:
| Ship weight (kg) | 13.01 |
| Ship height (cm) | 17.78 |
| Ship length (cm) | 141.61 |
| Ship width (cm) | 21.59 |
| HS code | 9405108020 |
Product Details:
- Special Features: 2-in-1 Light with Emergency Backup, Non-Corrosive
Product Variants
| Product | Model | Fixture Wattage | Ambient Temp. Range | Number Of Lamps | Lamp Watts | Mounting | Lens Material | Lamp Type | Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HALP-24-2L-T8-PND | 34 W | -4°F to +158°F | 2 | 17 W | Pendant | Acrylic | Fluorescent | 5.422" | - | RFQ
|
 |
HALP-24-3L-T8-SFC | 51 W | -20°C to +70°C | 3 | 17 W | Surface, Suspended | Acrylic | Fluorescent | 5.203" | €881.04 | |
 |
HALP-24-3L-T8-PND | 51 W | -20°C to +70°C | 3 | 17 W | Pendant | Acrylic | Fluorescent | 5.422" | €847.13 | |
|
HALP-48-2L-LED-SFC | 56 W | -22°F to +194°F | 2 | 28 W | Surface, Suspended | Polycarbonate | Integrated LED | 5.094" | - | RFQ
|
|
HALP-48-2L-LED-PND | 56 W | -22°F to +194°F | 2 | 28 W | Pendant | Polycarbonate | Integrated LED | 5.422" | - | RFQ
|
|
HALP-48-3L-LED-SFC | 84 W | -40°C to +65°C | 3 | 28 W | Surface, Suspended | Acrylic | LED | 5.094" | €1,439.21 | |
|
HALP-48-3L-LED-PND | 84 W | -40°F to +149°F | 3 | 28 W | Pendant | Acrylic | Integrated LED | 5.422" | - | RFQ
|
