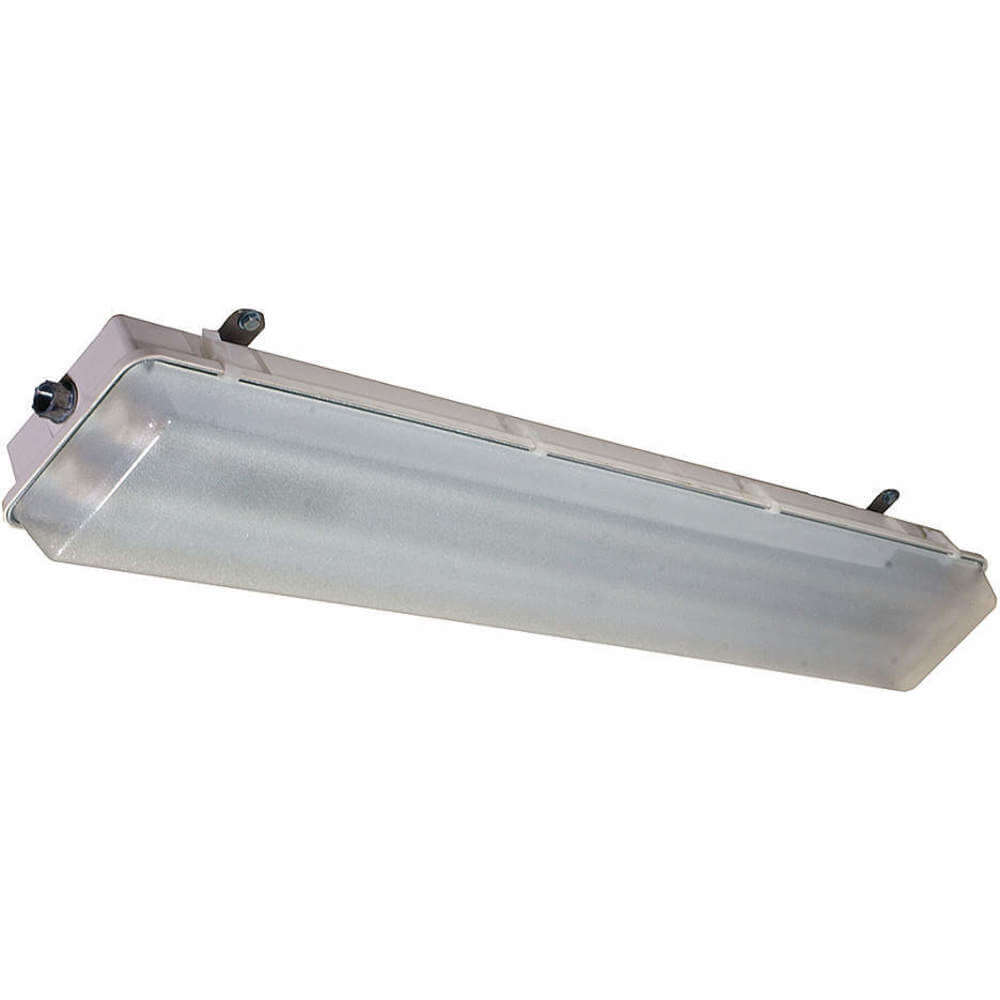

LARSON ELECTRONICS LLC HALP-24-2L-LED-SFC Hazardous Location Fixture T8-led 28w
Get it by Wednesday, Dec 17
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hazardous Lighting Fixture |
| Ambient Temp. Range | -22°F to +185°F |
| Baa Compliant | Yes |
| Ca Title 24 Compliant | Yes |
| Color Rendering Index | 80 |
| Color Temperature | 5600 K |
| Dimmable | No |
| Emergency Battery Backup | No |
| Finish | White |
| Fixture Rated Life | 50000 hrs. |
| Fixture Type | Hazardous Location |
| Fixture Voltage | 11-25V/120-277V AC |
| Fixture Wattage | 28 W |
| For Bulb Shape | T8 |
| For Bulb Type | LED |
| For Max. Bulb Wattage | 14 W |
| For No. Of Bulbs | 2 |
| Height | 5.203" |
| Housing Color | White |
| Housing Material | Polyester |
| Includes | (2) Aluminum Flange Brackets, (4) Foot Long Led Tube Design Bulbs, 3/4" Threaded Npt Hubs |
| Ingress Protection Rating | 67 |
| Lamp Included | Yes |
| Lamp Type | Integrated LED |
| Lamp Watts | 14 W |
| Length | 25 7/8" |
| Lens Material | Acrylic |
| Lighting Certification | Unrated |
| Lighting Technology | LED |
| Lumens | 3500 lm |
| Lumens Per Watt | 125 lm/W |
| Max. Ambient Temp. | 185°F |
| Max. Fixture Wattage | 28 W |
| Min. Ambient Temp. | -22°F |
| Mounting | Surface, Suspended |
| Mounting Location | Surface |
| Number Of Bulbs | 2 |
| Number Of Lamps | 2 |
| Overall Height | 5 1/4" |
| Overall Length | 25 7/8" |
| Overall Width | 7 1/2" |
| Safety Rating | Class I, Division 2, Groups A, B, C, D, Class II, Division 2, Groups F, G |
| Standards | Meets Us Coast Guard Specifications |
| Suggested Lamp Item No. | LEDT-14W-V1 |
| Temperature Code | T4 |
| Width | 7.969" |
Shipping Info:
| Ship weight (kg) | 3.78 |
| Ship height (cm) | 17.78 |
| Ship length (cm) | 85.09 |
| Ship width (cm) | 21.59 |
| HS code | 9405108020 |
Product Details:
- Special Features: 50,000 hr. LED Life
Product Variants
| Product | Model | Fixture Wattage | Ambient Temp. Range | Number Of Lamps | Lamp Watts | Mounting | Lens Material | Lamp Type | Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
HALP-24-2L-T8-PND | 34 W | -4°F to +158°F | 2 | 17 W | Pendant | Acrylic | Fluorescent | 5.422" | - | RFQ
|
 |

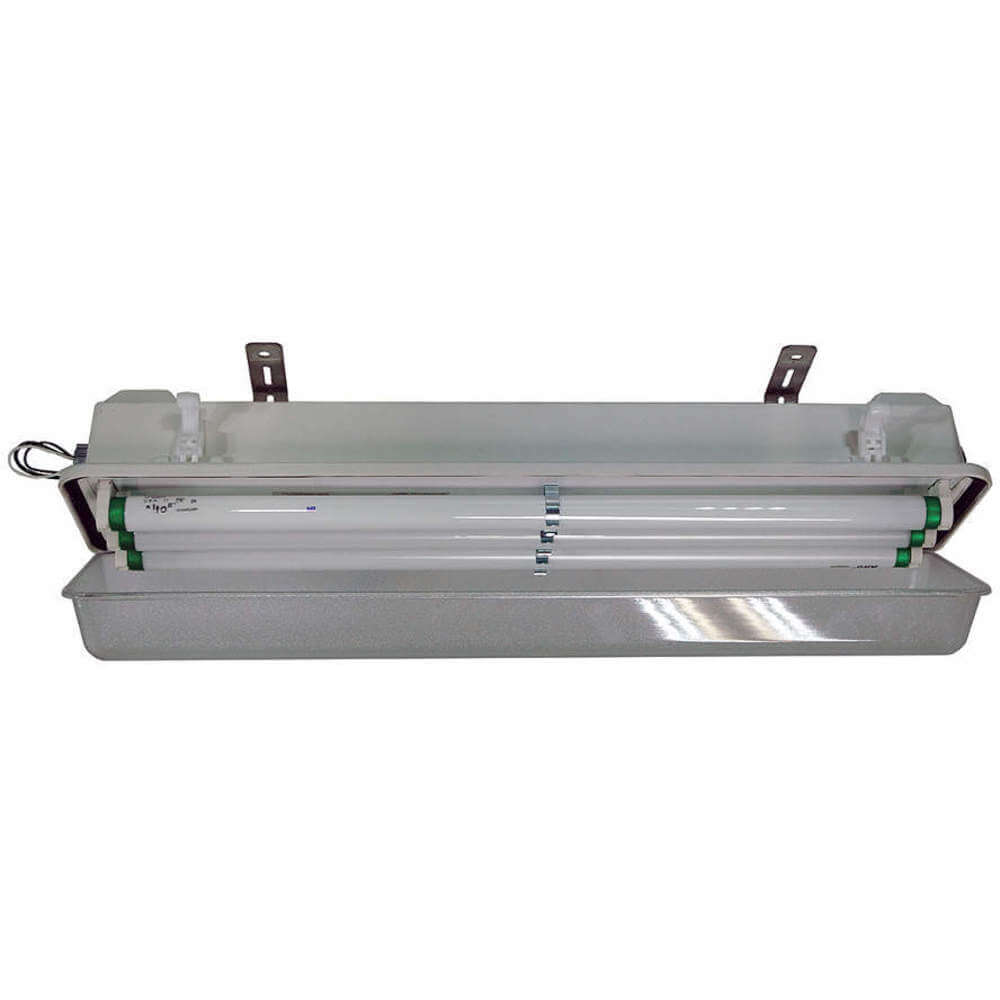

HALP-24-3L-T8-SFC | 51 W | -20°C to +70°C | 3 | 17 W | Surface, Suspended | Acrylic | Fluorescent | 5.203" | €881.04 | |
 |

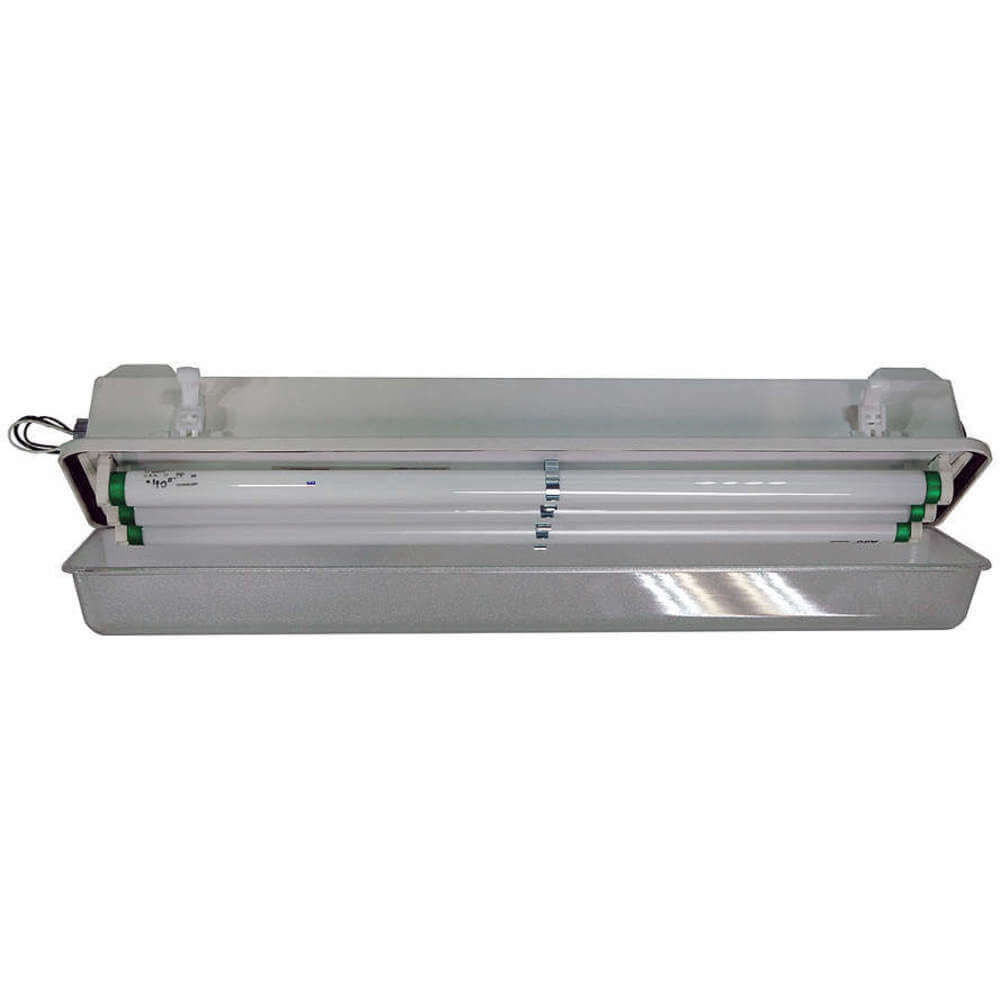

HALP-24-3L-T8-PND | 51 W | -20°C to +70°C | 3 | 17 W | Pendant | Acrylic | Fluorescent | 5.422" | €847.13 | |
|
HALP-48-2L-LED-SFC | 56 W | -22°F to +194°F | 2 | 28 W | Surface, Suspended | Polycarbonate | Integrated LED | 5.094" | - | RFQ
|
|
HALP-48-2L-LED-PND | 56 W | -22°F to +194°F | 2 | 28 W | Pendant | Polycarbonate | Integrated LED | 5.422" | - | RFQ
|
|
HALP-48-3L-LED-SFC | 84 W | -40°C to +65°C | 3 | 28 W | Surface, Suspended | Acrylic | LED | 5.094" | €1,439.21 | |
|
HALP-48-3L-LED-PND | 84 W | -40°F to +149°F | 3 | 28 W | Pendant | Acrylic | Integrated LED | 5.422" | - | RFQ
|
