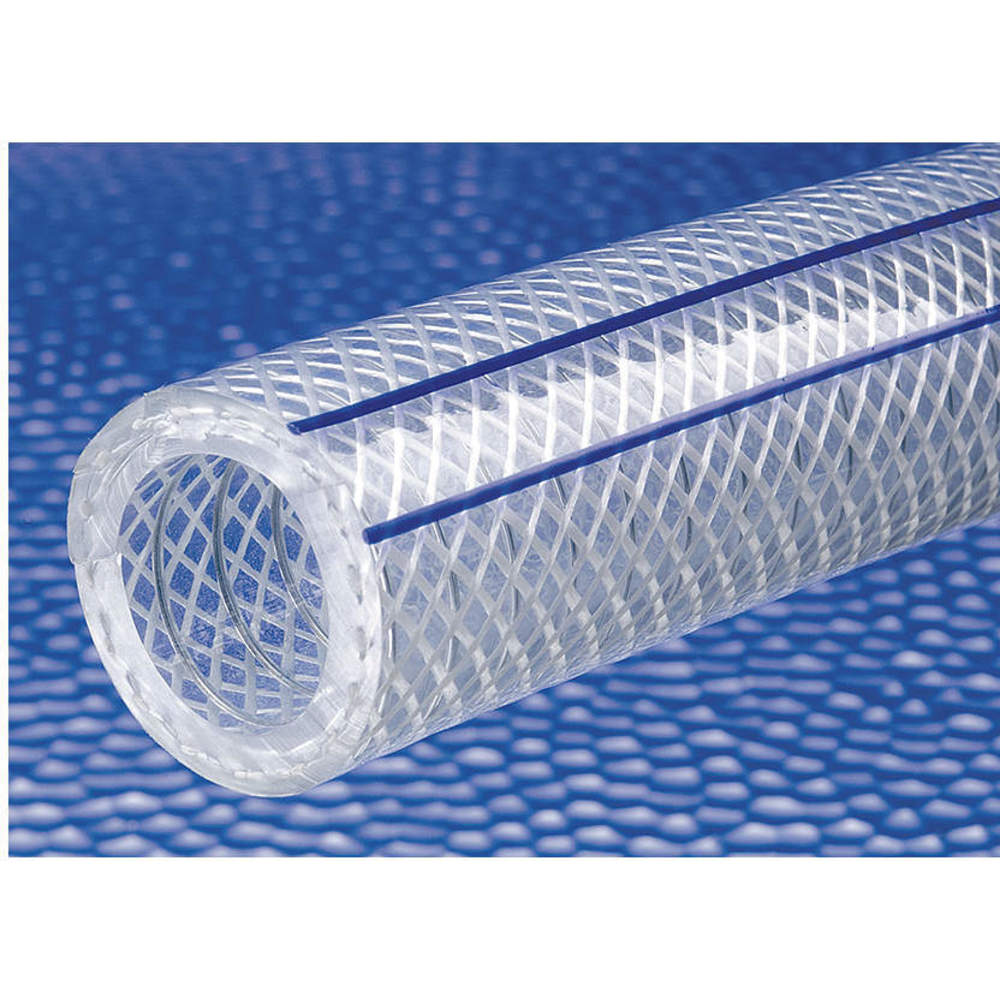

KURIYAMA K7300-24X50 Tubing Flexible Inside Diameter 1 1/2 Inch 50 Feet
Get it by Monday, Aug 31
13.00% off
€1,071.39 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reinforced Tubing |
| Application | Beverage, Food, Water |
| Autoclavable | No |
| Clarity | Clear |
| Color | Clear |
| Features | Non Marking, Non Toxic, Self Extinguishing, Silicone Free |
| Fitting Compatibility | Barbed |
| Flexibility | Flexible |
| Flow Application | Liquid Food Transfer, Water Transfer |
| For Fluid Type | Water |
| Hardness | Shore A 73 |
| Inside Dia. | 1 1/2" |
| Length | 50 ft. |
| Material | PVC |
| Material Trade Name | Polywire Plus |
| Max. Operating Pressure | 175 psi @ 70°F |
| Max. Operating Temp. | 150°F |
| Max. Vacuum Pressure | 29.9 in. hg |
| Min. Operating Temp. | 15°F |
| Outside Dia. | 2 1/32" , 2" |
| Overall Length | 50 ft. |
| Peristaltic Pump Compatible | No |
| Reinforcement | Polyester Braid, Steel Wire |
| Resistance Properties | Chemical Resistant |
| Sae Or Metric | SAE |
| Stripe Color | No Stripe |
| Temp. | +15°F to +150°F |
| Tensile Strength | 2200 psi |
| Type | Flexible |
| Vacuum | 29.9 in. hg |
Shipping Info:
| Ship weight (kg) | 19.35 |
| Ship height (cm) | 31.75 |
| Ship length (cm) | 60.2 |
| Ship width (cm) | 60.2 |
| HS code | 3917320010 |
| Country of Origin | CA |
Product Variants
| Model | Wall Thickness | Max. Operating Pressure | Bend Radius | Color | Stripe Color | Material | Material Trade Name | Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| K7300-08X100 | 0.19" | 250 psi @ 70°F | 2" | Clear | No Stripe | PVC | Polywire Plus | +15°F to +150°F | €626.19 | |
| K7300-12X100 | 0.19" | 225 psi @ 70°F | 2 1/2" | Clear | No Stripe | PVC | Polywire Plus | +15°F to +150°F | €1,035.30 | |
| K7300-16X100 | 0.22" | 225 psi @ 70°F | 3 1/2" | Clear | No Stripe | PVC | Polywire Plus | +15°F to +150°F | €1,129.42 | |
| K7300-20X50 | 1/4" | 175 psi @ 70°F | - | Clear | No Stripe | PVC | Polywire Plus | +15°F to +150°F | €1,034.18 | |
| K7300-32X50 | 0.94" | 150 psi @ 70°F | 7" | Clear | No Stripe | PVC | Polywire Plus | +15°F to +150°F | €1,712.68 |
