KURIYAMA K010-0709X100 Tubing 7/16 Inch Id 9/16 Inch Outer Diameter 100 Feet
Item: AD7GQWModel: K010-0709X100Cross Ref: 4EGV4
7 In Stock
Ships within 2 days via
10.00% off
€68.39 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Tubing |
| Application | Air, Beverage, Food, Water |
| Autoclavable | No |
| Bend Radius | 4" |
| Clarity | Clear |
| Color | Clear |
| Features | Non Toxic Blue Tint To Enhance Clarity, Self Extinguishing |
| Fitting Compatibility | Barbed |
| Flexibility | Flexible |
| Flow Application | Air Conditioning Drainage, Air Lines, Beverage Dispensing Units, Bottling Plants, Deionized Water Systems, Food And Beverage, High Efficiency Furnace Drainage, Ice Making Machines, Laboratories, Printing Press Equipment, Refrigeration Drainage, Transfer Of Weak Chemicals And Acids, Water Distillation Lines |
| For Fluid Type | Acids, Chemicals, Deionized Water |
| Hardness | Shore A 73 |
| Inside Dia. | 0.438" |
| Inside Diameter | 7/16" |
| Length | 100 ft. |
| Material | PVC |
| Material Trade Name | Klearon |
| Max. Pressure | 35 psi |
| Maximum Operating Pressure | 35 psi @ 70°F |
| Maximum Operating Temperature | 150°F |
| Minimum Operating Temperature | 25°F |
| Outside Dia. | 0.562" |
| Outside Diameter | 9/16" |
| Overall Length | 100 ft. |
| Peristaltic Pump Compatible | No |
| Reinforcement | Not Reinforced |
| Resistance Properties | Chemical Resistant |
| Sae Or Metric | SAE |
| Stripe Color | No Stripe |
| Temp. Range | +25°F to +150°F |
| Tensile Strength | 2200 psi |
| Type | Flexible |
| Vacuum | Not Rated |
| Vacuum Rating | Not Rated |
| Wall Thickness | 0.06" |
Shipping Info:
| Ship weight (kg) | 2.99 |
| Ship height (cm) | 45.21 |
| Ship length (cm) | 43.94 |
| Ship width (cm) | 14.73 |
| HS code | 3917320010 |
| Country of Origin | US |
Product Variants
| Model | Inside Dia. | Max. Pressure | Outside Dia. | Wall Thickness | Color | Tensile Strength | Application | Bend Radius | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

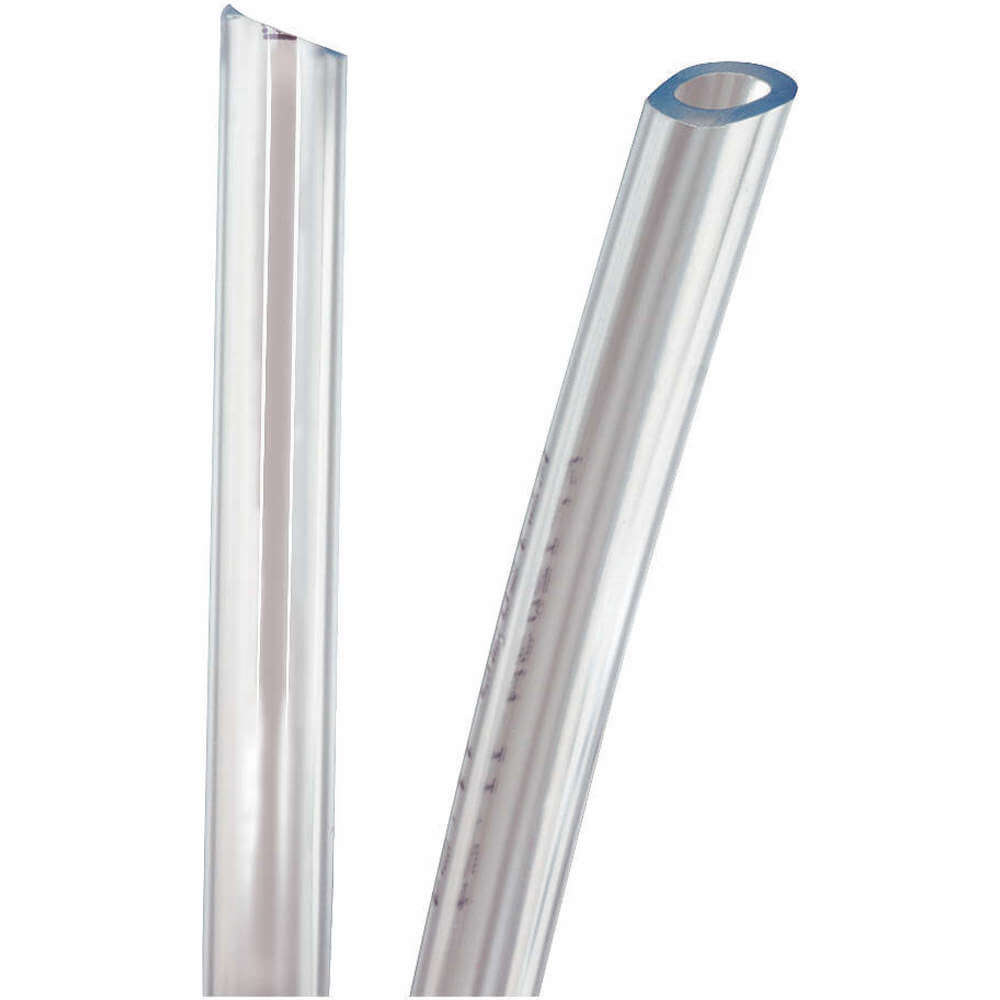

| K010-2024 | 1 1/4" | 20 psi | 1 1/2" | 0.13" | Clear | 2200 psi | Air, Water | 1/2" | €369.17 | |
| K010-2024X50 | 1 1/4" | 20 psi | 1 1/2" | 0.13" | Clear | 2175 psi | Air, Water | 1/2" | €192.07 | |
| K010-2430X50 | 1 1/2" | 20 psi | 1 7/8" | 0.188" | Blue | 2175 psi | - | - | €351.76 | |
| K010-3240X50 | 2" | 20 psi | 2 1/2" | 1/4" | Clear | 2175 psi | Air, Beverage, Food, Water | 8" | €665.07 | |
| K010-0306X100 | 0.188" | 60 psi | 3/8" | 0.09" | Clear | 2200 psi | Air, Beverage, Food, Water | 1 1/4" | €64.18 | |
| K010-0408X100 | 1/4" | 60 psi | 1/2" | 0.13" | Clear | 2200 psi | Air, Beverage, Food, Water | 2 1/2" | €124.81 | |
| K010-1013X100 | 5/8" | 35 psi | 0.812" | 0.09" | Clear | 2200 psi | Air, Beverage, Food, Water | 6" | €123.74 |
