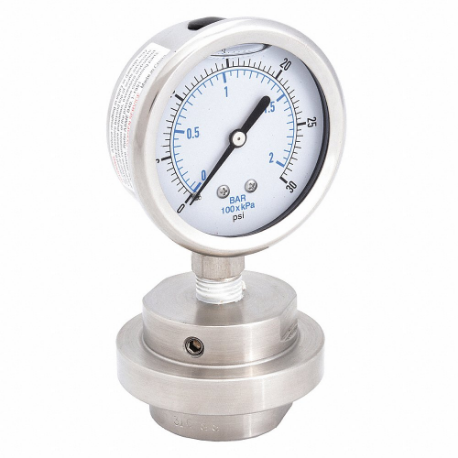

KODIAK CONTROLS KC301L2530/DSM3512LP Pressure Gauge With Diaphragm Seal, 0 To 30 PSI, Kc301/Dsm35Lp, 2 1/2 Inch Dial
Item: CR7KHDModel: KC301L2530/DSM3512LPCross Ref: 45MU27
7 In Stock
Ships within 2 days via
10.00% off
€193.65 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Seal |
| Accuracy | -1.6% to +1.6% |
| Accuracy Scale | Full Scale |
| Adjustable Pointer | No |
| Ambient Operating Temperature Range | 20°F to 160°F |
| Ambient Temp. Range | +20°F to +160°F |
| Application | Chemical Industries, Highly Corrosive, Hydraulics, Pumps, R/O Systems |
| Bezel Mounting Type | Crimped |
| Blowout Safety Back | No |
| Calibration Certificate Included | NIST With Data |
| Case Color | Stainless Steel |
| Case Construction | Corrosion Resistant |
| Case Depth | 1 7/25" |
| Case Dia. | 2 4/5" |
| Case Diameter | 2.8" |
| Case Grade | Grade 304 |
| Case Material | Stainless Steel |
| Cleaned For Oxygen Service | No |
| Clog Resistant | Yes |
| Compatible Process Media | Thick Or Corrosive Media Compatible With 316 Stainless Steel |
| Dial Color | White |
| Diaphragm Seal Process Connection | Threaded |
| Diaphragm Seal Type | Welded |
| Dry Dampening Feature | None |
| Field Fillable | Yes |
| Freeze Resistant Movement | No |
| Gauge Case Liquid | Glycerin |
| Gauge Case Material | Stainless Steel |
| Gauge Case Material Grade | Grade 304 |
| Hazardous Location Rating | Not Rated |
| Includes | Mini Diaphragm Seal |
| Includes Mounting Hardware | No |
| Includes Vent Plug | No |
| Ip Rating, Nema Rating | NEMA 4X |
| Lens Material | Polycarbonate |
| Liquid-filled Case | Yes |
| Manufacturer Warranty Length | 1 yr. |
| Mfr. Series | KC301, DSM35LP |
| Mounting Type | Stem Mount |
| Nominal Dial Size | 2 1/2" |
| Panel-mountable | No |
| Pointer Color | Black |
| Pointer Material | Aluminum |
| Pressure Gauge Type | Industrial Pressure Gauge With Diaphragm Seal |
| Pressure Range | 0 psi to 30 psi |
| Pressure Range Type | Pressure |
| Primary Pressure Range | 0 psi to 30 psi |
| Primary Scale Minor Graduations | 0.5 |
| Primary Scale Units | Psi |
| Process Connection | 1/4" NPT Female |
| Process Connection Gender | Female |
| Process Connection Location | Bottom |
| Process Connection Size | 1/4" |
| Process Connection Type | NPT |
| Process Temperature Range | -40°F to +400°F |
| Removable Bezel | No |
| Scale Type | Dual |
| Seal Compatible Process Media | Air or Liquid Compatible with 316SS |
| Seal Connection Size | 1/2" |
| Seal Diaphragm Grade | Grade 316 |
| Seal Diaphragm Material | Stainless Steel |
| Seal Diaphragm Material Grade | Grade 316 |
| Seal External Grade | Grade 316 |
| Seal External Material | Stainless Steel |
| Seal Fill Liquid | Mineral Oil |
| Seal Lower Housing Grade | Grade 316 |
| Seal Lower Housing Material | Stainless Steel |
| Seal Maximum Working Pressure | 2500 psi |
| Seal Process Temperature Range | -40°F to +400°F |
| Secondary Pressure Range | 0 Bar to 2 Bar |
| Secondary Scale Units | Bar |
| Sensor Grade | Grade 316 |
| Sensor Material | Stainless Steel |
| Socket Grade | Grade 316 |
| Socket Material | Stainless Steel |
| Standards | NIST |
| Vibration Resistance | Liquid Filled |
| Wetted Materials | Stainless Steel |
| Wetted Parts Grade | Grade 316 |
| Wetted Parts Material | 316 Stainless Steel, 316 Stainless Steel |
Shipping Info:
| Ship weight (kg) | 0.72 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Pressure Range Type | Pressure Range | Process Connection Gender | Primary Scale Units | Case Depth | Secondary Pressure Range | Primary Scale Minor Graduations | Diaphragm Seal Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
KC301L25100/DSF14-M | Pressure | 0 psi to 100 psi | Male | Psi | 1 7/25" | 0 Bar to 7 Bar | 2 | Welded | €311.22 | |
 |
KC301L251000/DSM3511 | Pressure | 0 psi to 1000 psi | Female | Psi | 1 7/25" | 0 Bar to 69 Bar | 20 | Welded | €215.61 | |
 |
KC301L251000/DSM3512 | Pressure | 0 psi to 1000 psi | Female | Psi | 1 7/25" | 0 Bar to 69 Bar | 20 | Welded | €202.00 | |
 |
KC301L251000/DSF14-M | Pressure | 0 psi to 1000 psi | Male | Psi | 1 7/25" | 0 Bar to 69 Bar | 20 | Welded | €311.22 | |
 |
KC301L25100/PLDS-PVC-T11 | Pressure | 0 psi to 100 psi | Female | Psi | 1 7/25" | 0 Bar to 7 Bar | 2 | Bonded | €292.55 | |
 |
KC301L25100/PLDS-PVC-T12 | Pressure | 0 psi to 100 psi | Female | Psi | 1 7/25" | 0 Bar to 7 Bar | 2 | Bonded | €292.55 | |
 |
KC301L25100/DSM3512 | Pressure | 0 psi to 100 psi | Female | Psi | 1 7/25" | 0 Bar to 7 Bar | 2 | Welded | €202.03 |
