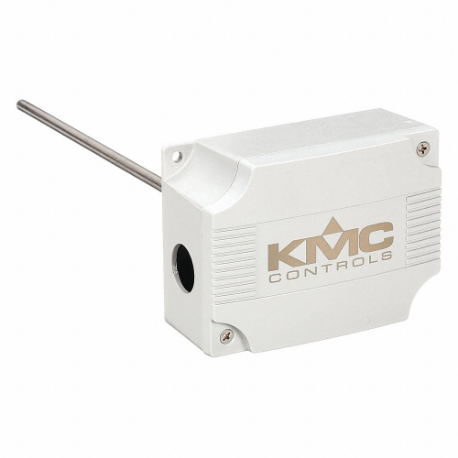

KMC CONTROLS STE-1402 Temperature Sensor
Item: CR7FJHModel: STE-1402Cross Ref: 6HXT6
7 In Stock
Ships within 2 days via
5.00% off
€38.85 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Temperature Sensor |
| Application | Duct Temperature Monitoring, Immersion Temperature Monitoring, Outdoor Temperature Monitoring, Surface Temperature Monitoring |
| Compatible Building Automation Protocols | Not Applicable |
| Compatible With Series | BAC 1 Series |
| Display Type | None |
| Electrical Connection Type | Hardwired |
| For Use With Building Automation Systems | Building Automation System Compatible |
| Housing Color | Gray |
| Housing Material | Stainless Steel |
| Housing Type | Conduit Box |
| Included | Sensor |
| Ip Rating | IP65 |
| Loop Resistance | 10000 ohms |
| Max. Operating Temp. | 122°F |
| Max. Sensing Temp. | 248°F |
| Measurement Type | Single |
| Min. Operating Temp. | -40°F |
| Min. Sensing Temp. | -40°F |
| Mounting Location | Duct Mount |
| Nema Rating | 4X |
| Output | Not Applicable |
| Overall Depth | 1/4" |
| Probe Length | 8" |
| Product Type | Duct Temperature Sensor |
| Sensing Element Type | Thermistor |
| Sensor Accuracy | -0.36°F to +0.36°F |
| Sensor Flexibility | Rigid |
| Series | STE-1400 Series |
| Temp. Accuracy | -0.36°F to +0.36°F |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Housing Material | Electrical Connection Type | Mounting Location | Housing Color | Housing Type | Measurement Type | Nema Rating | Product Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

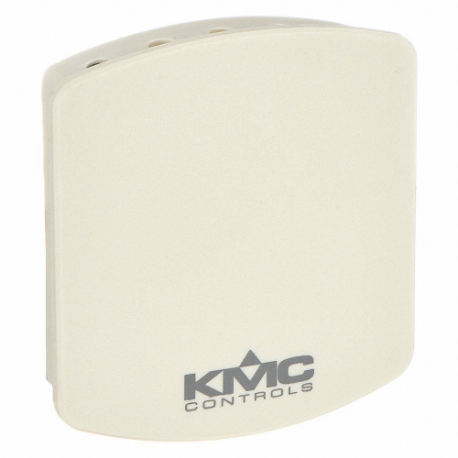

STE-6011-10 | Plastic | Screw Terminal | Wall Mount | Almond | Conduit Box | Single | Not Applicable | Room Temperature Sensor | €28.15 | |
 |

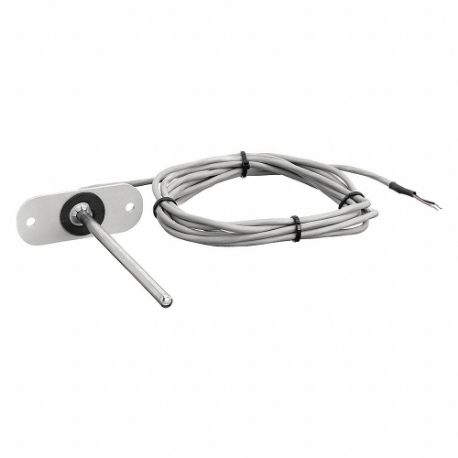

STE-1405 | Not Applicable | Hardwired | Duct Mount | Not Applicable | Open Mounted | Single | Not Applicable | Duct Temperature Sensor | €30.25 | |
 |

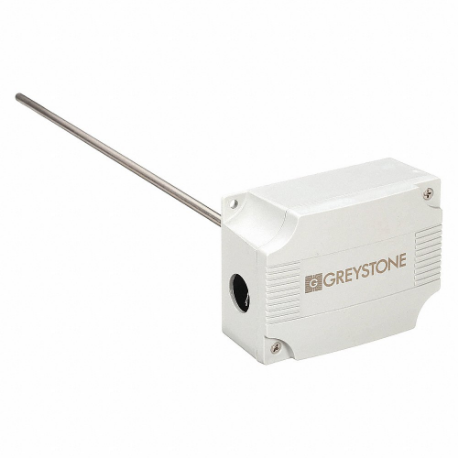

STE-1404 | Stainless Steel | Hardwired | Duct Mount | Gray | Conduit Box | Single | 4X | Duct Temperature Sensor | €39.05 | |
 |

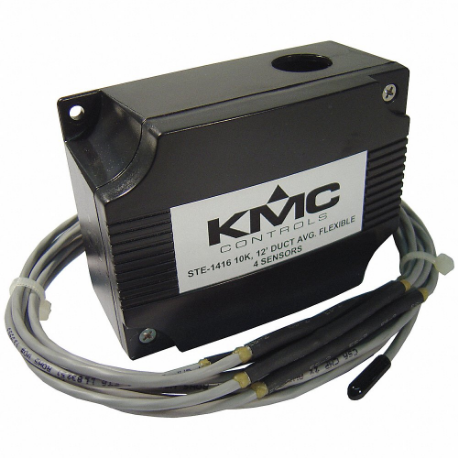

STE-1416 | Plastic | Hardwired | Duct Mount | Gray | Conduit Box | Averaging | 4X | Duct Temperature Sensor | €178.51 | |
 |

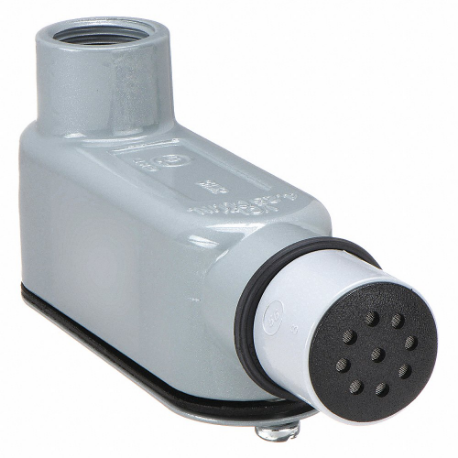

STE-1451 | Aluminum | Hardwired | Outdoors | Metallic | Conduit Box | Single | 4X | Outdoor Temperature Sensor | €38.95 | |
 |

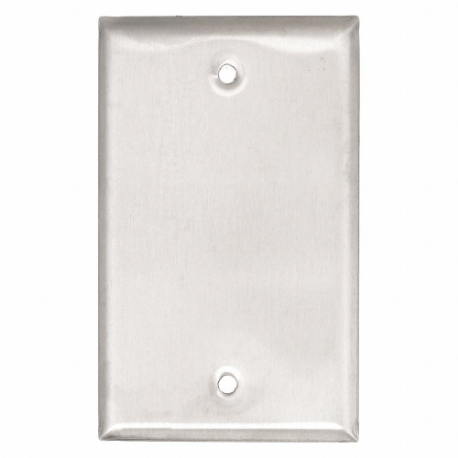

STE-1430 | Stainless Steel | Hardwired | Wall Mount | Metallic | Flush Mount | Single | Not Applicable | Room Temperature Sensor | €21.35 | |
 |

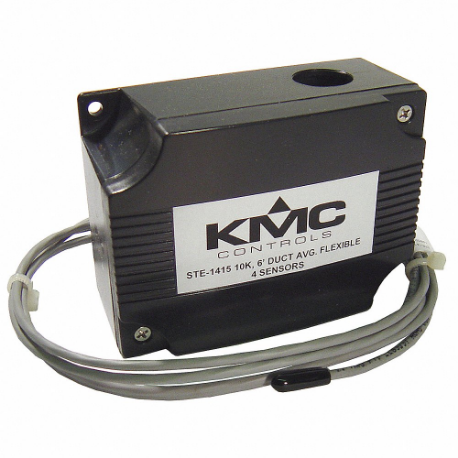

STE-1415 | Plastic | Hardwired | Duct Mount | Gray | Conduit Box | Averaging | 4X | Duct Temperature Sensor | €161.77 |
