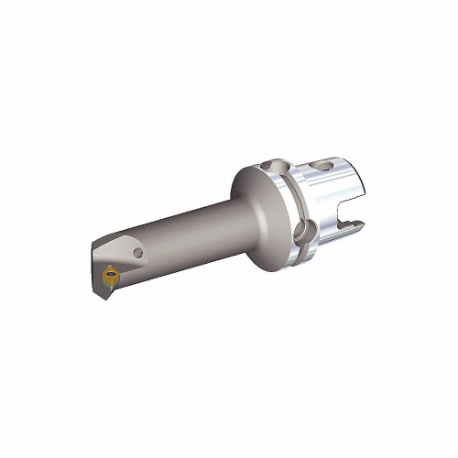

KM SYSTEMS KM63TSS32LSDUCR11 Indexable Cutting Head Unit, Dc Insert, 55 Degree Diamond, 7 Degree Insert Clearance Angle
Item: CR7HEEModel: KM63TSS32LSDUCR11Cross Ref: 314CV2
7 In Stock
Ships within 2 days via
10.00% off
€835.46 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Cutting Head Unit |
| Ansi Code | KM63TSS32LSDUCR11 |
| Ansi Number | KM63TSS32LSDUCR11 |
| Approach Angle | 93° |
| Axial Rake Angle | 0° |
| Center To Cutting Tip | 22 mm |
| Compatible Hardware | Screw Clamp |
| Coolant Fed | Coolant Through |
| Cutting Application | Boring |
| Cutting Direction | Right Hand |
| Insert Angle | 55° |
| Insert Clearance Angle | 7° |
| Insert Cutting Edge Length | 11.63 mm |
| Insert Holding Type | Screw On |
| Insert Shape | Diamond |
| Insert Size | 11T308 (32.52) |
| Insert Style | Dc |
| Iso Number | KM63TSS32LSDUCR11 |
| Max. Bore Depth | 112.22 mm |
| Min. Bore Dia. | 40 mm |
| Number Of Coolant Holes | 1 |
| Overall Length | 179.95 mm |
| Radial Rake Angle | -3° |
| Rake | -3° Radial, 0° Axial |
| Shank Dia. | 63 mm |
| Side Cutting Edge Angle | -3° |
Shipping Info:
| Ship weight (kg) | 1.34 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Shank Dia. | Insert Style | Insert Shape | Insert Clearance Angle | Overall Length | Toolholder Style | Max. Bore Depth | Min. Bore Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
KM32TSBA06217 | 32 mm | - | - | - | - | - | - | - | €595.72 | |
 |
KM32TSBAI16276 | 32 mm | - | - | - | - | - | - | - | €529.99 | |
|
KM32TSBA12276 | 32 mm | - | - | - | - | - | - | - | €595.72 | |
 |
KM40TSBAI24354 | 40 mm | - | - | - | - | - | - | - | €538.79 | |
 |
KM40TSBA12065M | 40 mm | - | - | - | - | - | - | - | €619.75 | |
|
KM40TSBA08050M | 40 mm | - | - | - | - | - | - | - | €619.75 | |
|
KM40TSBA12295 | 40 mm | - | - | - | - | - | - | - | €619.75 |
