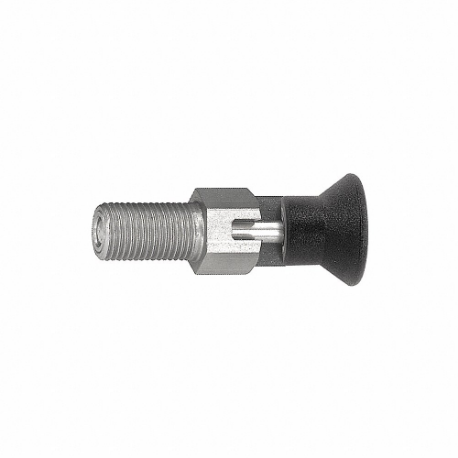

KIPP K0338.03412 Spring Plunger, Lockout, Without Locking Nut, Stainless Steel
Item: CR7CTHModel: K0338.03412Cross Ref: 53ED47
7 In Stock
Ships within 2 days via
10.00% off
€89.19 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spring Plunger |
| Body Construction | Stainless Steel |
| Body Diameter | 22 mm |
| Body Finish | Hardened |
| Body Length | 66 mm |
| Body Material | Stainless Steel |
| Body Material Grade | Grade 303 |
| Construction | Stainless Steel |
| Finish | Bright, Uncoated |
| Handle Color | Black Gray |
| Handle Material | Thermoplastic |
| Handle Type | Knob |
| Indexing Plunger Style Builder | KIPP K0338 Form C - No Locking Nut, Open Hex Head |
| Initial Nose Force | 15N |
| Knob Color | Black |
| Knob Dia. | 33 mm |
| Knob Material | Thermoplastic |
| Locknut | Without Locking Nut |
| Lockout | Lockout |
| Material | Stainless Steel |
| Mounting Type | Threaded |
| Overall Length | 78 mm |
| Plunger Dia. | 12 mm |
| Plunger Finish | Uncoated |
| Plunger Material | Stainless Steel |
| Plunger Material Grade | Grade 420 |
| Plunger Projection | 12 mm |
| Plunger Style | Locking |
| Plunger Width | 12 mm |
| Projection | 12 mm |
| Retractable | Retractable |
| System Of Measurement | Metric |
| Thread Length | 25 mm |
| Thread Pitch | 1.5 mm |
| Thread Size | M20 x 1.5 |
| Width | 22 mm |
| With Locking Plunger | Yes |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Material | Body Length | Plunger Dia. | Handle Material | Body Construction | Lockout | Body Material | Retractable | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| K0338.4516A8 | Steel | 80 mm | 16 mm | Thermoplastic | Black Oxide Coated Steel | Lockout | Steel | Retractable | €87.70 | |
| K0338.4410A7 | Steel | 64 mm | - | Thermoplastic | Black Oxide Coated Steel | Lockout | Steel | Retractable | €42.01 | |
| K0631.8206 | Steel | 35.7 mm | 6 mm | Thermoplastic | Black Oxide Coated Steel | Lockout | Steel | Retractable | €26.50 | |
| K0631.8004AK | Steel | 25.5 mm | - | Thermoplastic | Black Oxide Coated Steel | Lockout | Steel | Retractable | €26.24 | |
| K0338.4308 | Steel | 60 mm | 8 mm | Thermoplastic | Black Oxide Coated Steel | Lockout | Steel | Retractable | €30.60 | |
| K0338.4004AK | Steel | 34.5 mm | 4 mm | Thermoplastic | Black Oxide Coated Steel | Lockout | Steel | Retractable | €28.27 | |
| K0631.8410A7 | Steel | 51 mm | 10 mm | Thermoplastic | Black Oxide Coated Steel | Lockout | Steel | Retractable | €53.12 |
