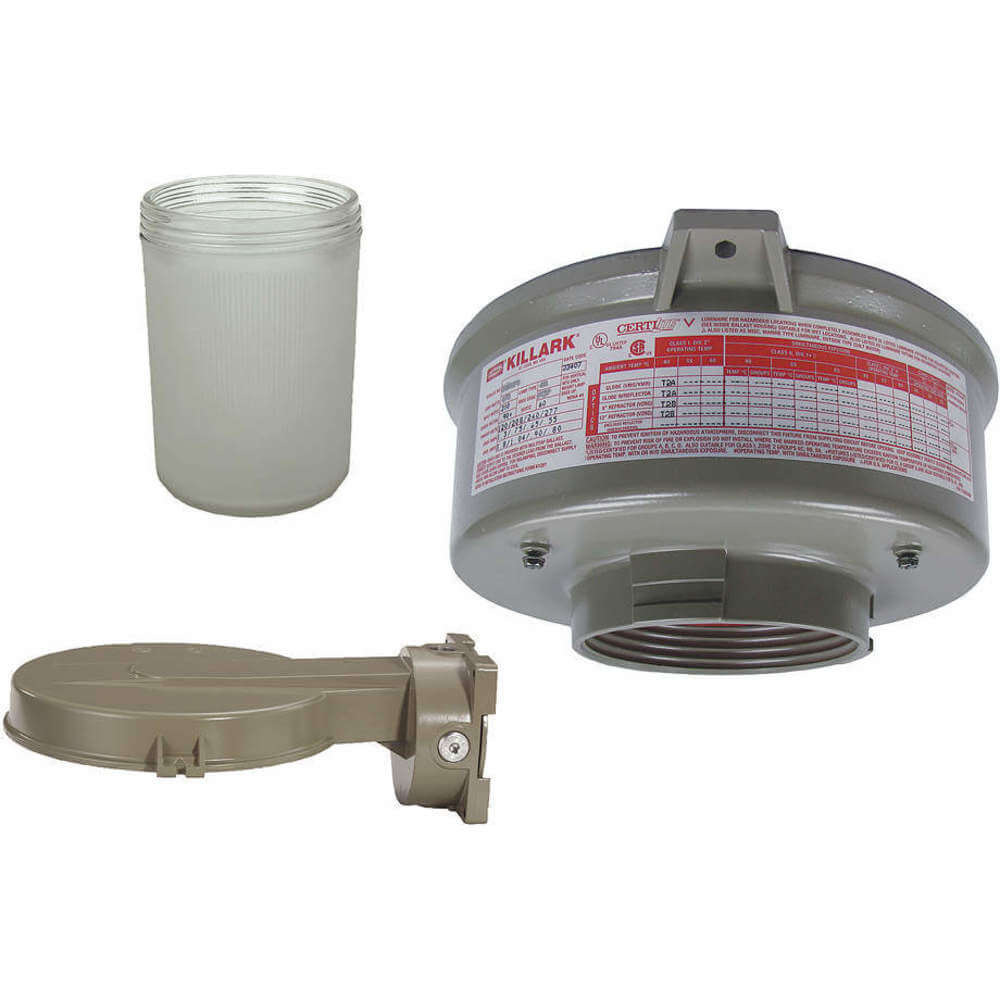

KILLARK VE3Q8442E30B2GLN Fixture Cfl Wall Mount
Get it by Friday, Dec 19
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hazardous Location Fixture |
| Ambient Temp. Range | -20°F to +40°F |
| Ca Title 24 Compliant | No |
| Emergency Battery Backup | Yes |
| Fixture Item Number | 4KGN9 |
| Fixture Voltage | 120-277V AC |
| Fixture Wattage | 84 W |
| For Bulb Type | Fluorescent |
| For Maximum Bulb Wattage | 84 W |
| For No. Of Bulbs | 3 |
| Hazard Classification | Class I/Division 2, Class II/Division 1, Class II/Division 2, Class III |
| Height | 5.437" |
| Housing Color | Tan |
| Housing Material | Aluminum |
| Ingress Protection Rating | 66 |
| Lamp Included | Yes |
| Lamp Type | CFL |
| Lamp Watts | 42 W |
| Length | 13.688" |
| Lighting Technology | Fluorescent |
| Lumens | 6400 lm |
| Lumens Per Watt | 76 lm/W |
| Lumens Range - Merch | 6000 lm to 7999 lm |
| Match Code | 4 |
| Max. Fixture Wattage | 84 W |
| Maximum Ambient Temperature | 40°F |
| Minimum Ambient Temperature | -20°F |
| Mounting | Wall |
| Mounting Bracket Item Number | 2PDE9 |
| Mounting Location | Wall |
| Mounting Style | Wall |
| Nominal Size - Fixtures (merch) | 1 ft. x 1 ft. |
| Number Of Ballasts | 2 |
| Number Of Bulbs | 2 |
| Number Of Lamps | 2 |
| Overall Height | 5 1/2" |
| Overall Length | 13 3/4" |
| Overall Width | 13 3/4" |
| Safety Rating | Class I, Division 2, Groups A, B, C, D, Class II, Divisions 1 And 2, Groups E, F, G, Class III, Class L, Groups Iic, Llb, Lla |
| Series | VE3Q Series |
| Standards | NEMA 3, NEMA 4, NEMA 4X |
| Temperature Code | T2B |
| Voltage | 120-277V AC |
| Width | 13.688" |
Shipping Info:
| Ship weight (kg) | 11.62 |
| Ship height (cm) | 13.97 |
| Ship length (cm) | 34.93 |
| Ship width (cm) | 34.93 |
| HS code | 9405400000 |
| Country of Origin | US |
Product Details:
- Special Features: Fixture Features 2 AC Ballasts Each Operating 1 Lamp For Normal Power Redundancy. 1 Lamp Operates In Emergency Mode, 3/4" Hub
Product Variants
| Product | Model | Mounting | Ambient Temp. Range | Fixture Wattage | Voltage | Lamp Type | Number Of Lamps | Height | Lamp Included | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

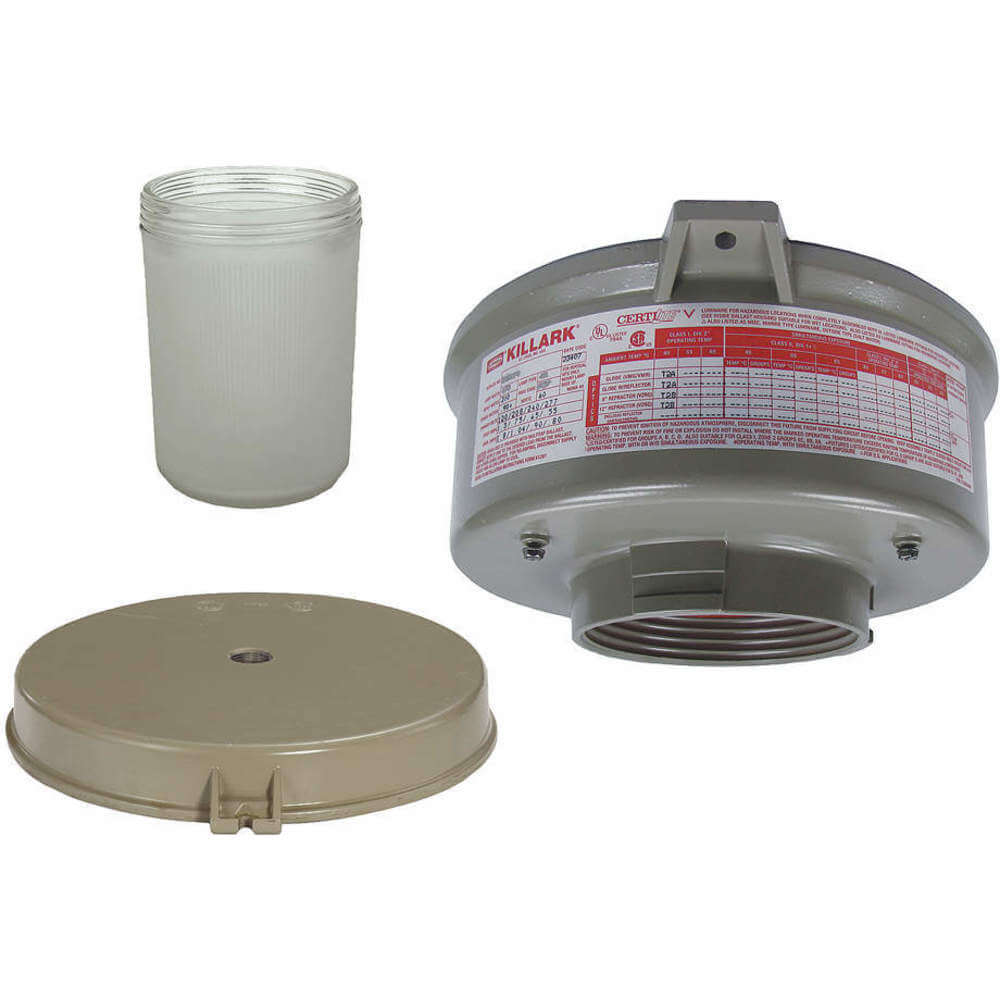

VE3Q8442E30A2GLN | Pendant | -20°F to +40°F | 84 W | 120-277V AC | CFL | 2 | 5.437" | Yes | - | RFQ
|
 |

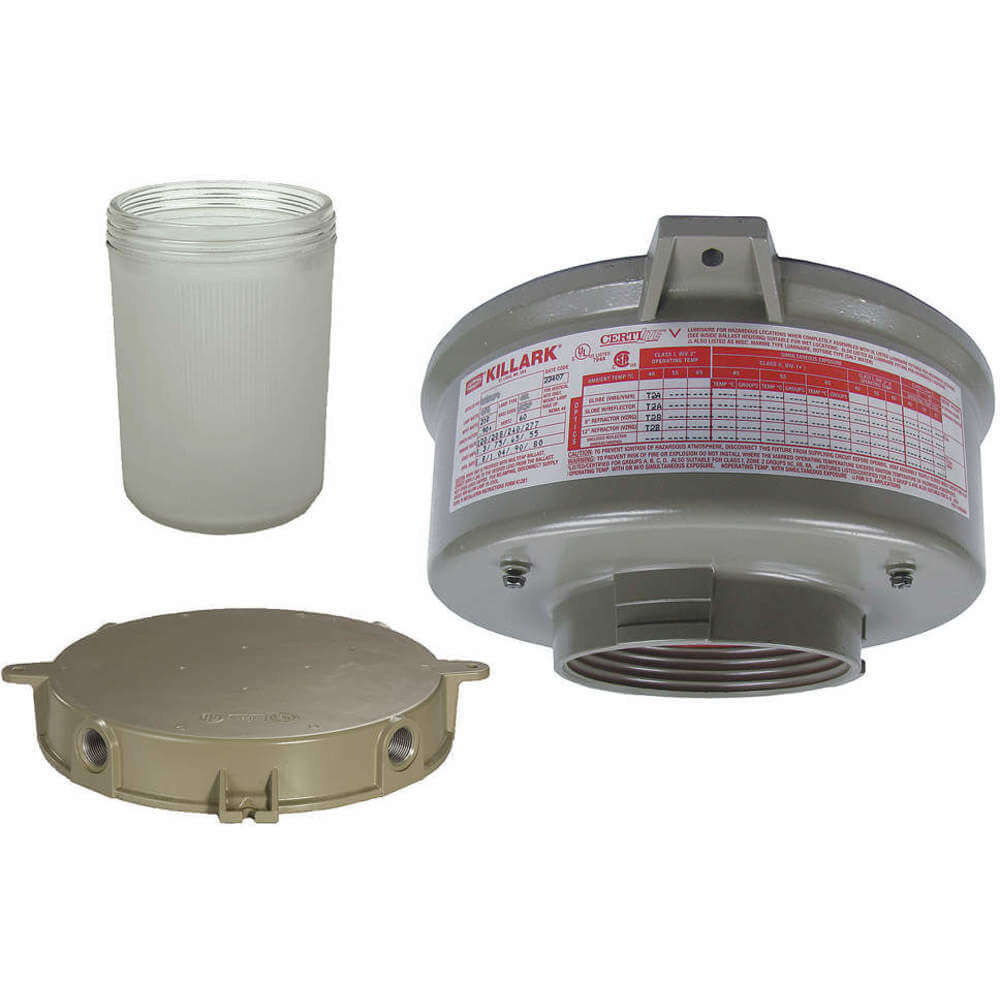

VE3Q8442E30X2GLN | Ceiling | -20°F to +40°F | 84 W | 120-277V AC | CFL | 2 | 5.437" | Yes | - | RFQ
|
 |

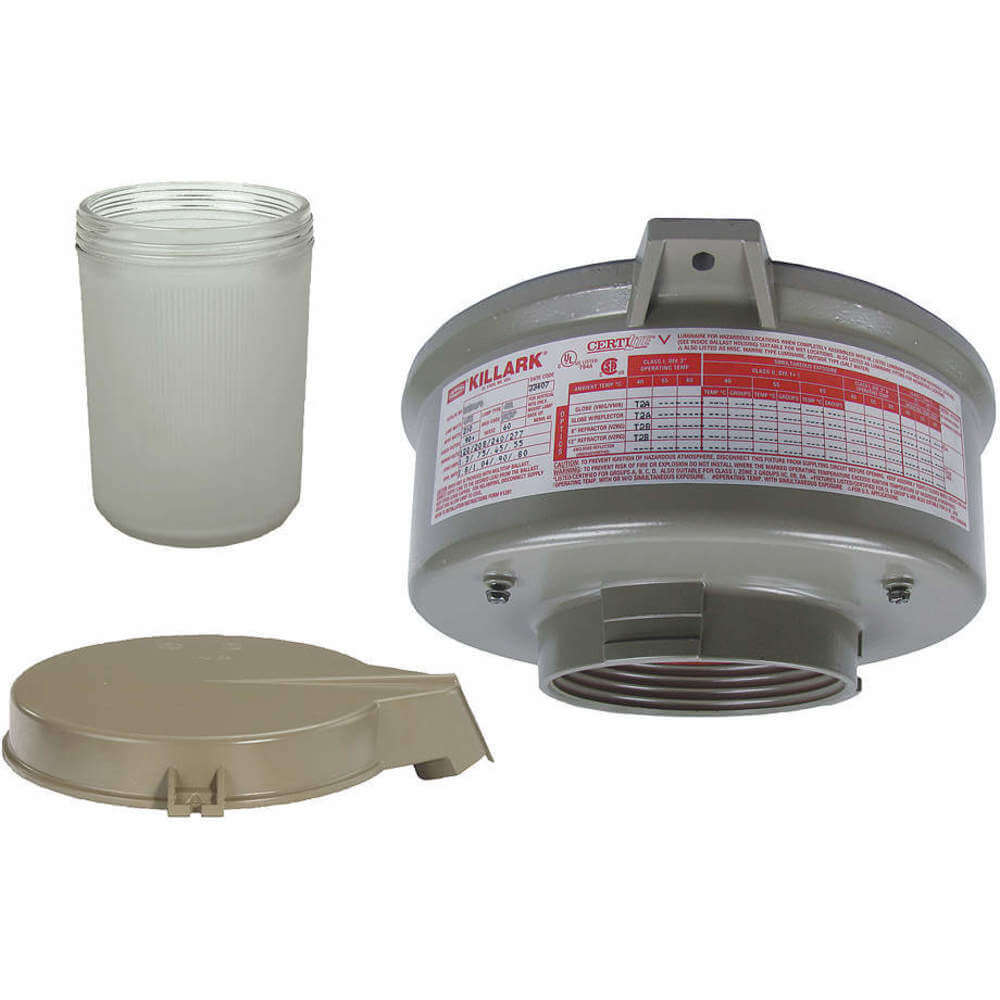

VE3Q8442E30D4GLN | Stanchion | -20°F to +40°F | 84 W | 120-277V AC | CFL | 2 | 5.437" | Yes | - | RFQ
|
