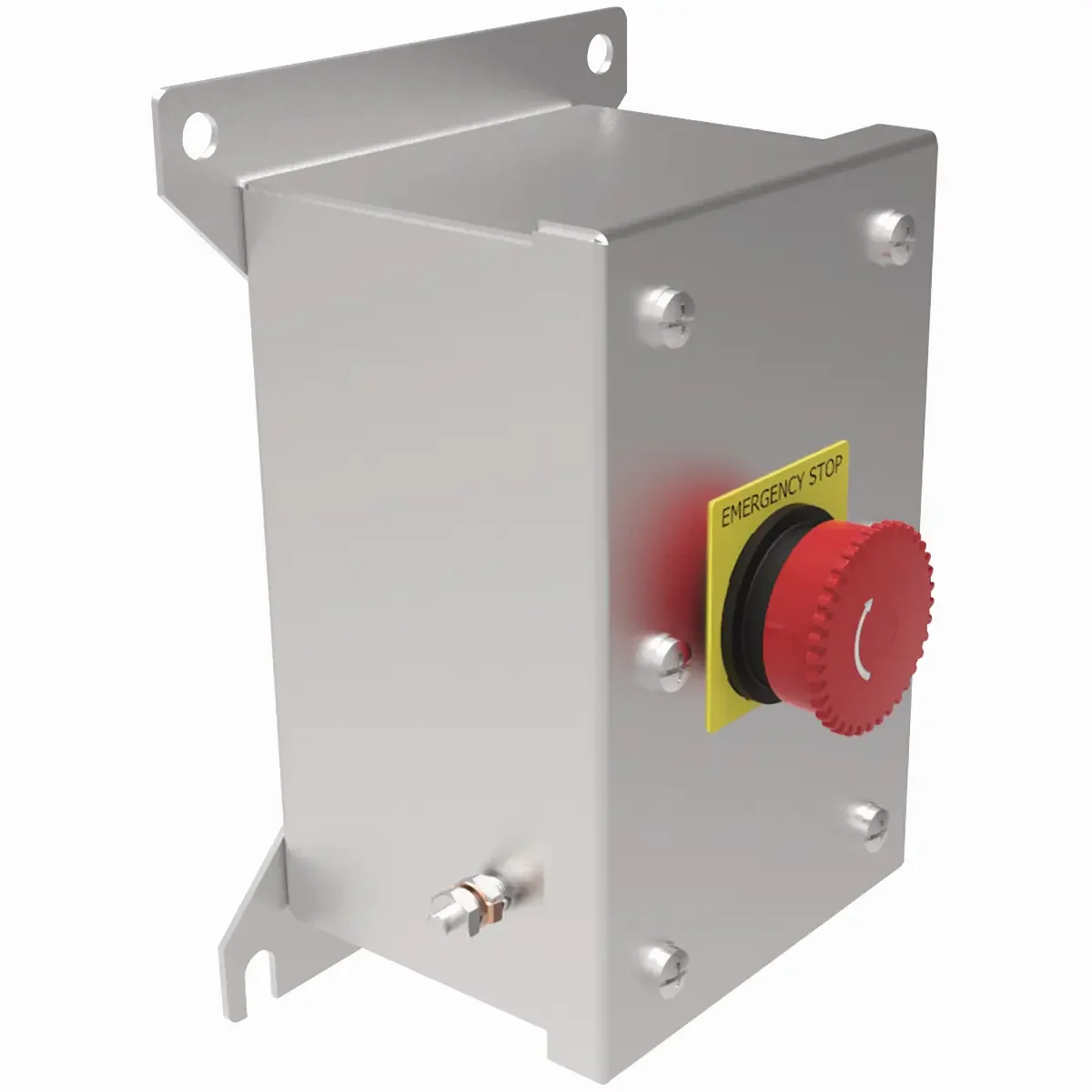

KILLARK HKH1BSDAM71E Control Station, Maintained Contact Push Button E-Stop, Twist Release, Din Rail Mount- M20 - SS 1B
Get it by Monday, Aug 24
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Control Station |
| Action | Maintained |
| Actuator | Mushroom Pushbutton |
| Amps Rating | 20A |
| Application | Hazardous And Corrosive Environments Due To The Presence Of flammable Gases Or Vapors, Combustible Dusts Or Ignitable fiber Or flyings, Installations At Petroleum Refineries, Chemical And Petrochemical Plants And Other Processing Or Storage Facilities Where Similar Hazards Exist, Use In Conjunction With Motor Starters Or Contactors For Remote Control Of Motors |
| Color | Red |
| Depth | 4 1/4" |
| Frequency | 50/60 Hz |
| Grade | Grade 316 |
| Hub Size | M20 |
| Material | Stainless Steel |
| Mounting Type | Wall |
| Nema Rating | NEEMA3, NEEMA4, NEEMA4X, NEEMA12, NEEMA13 |
| Operating Temp. Range | -50°C to +60°C |
| Product Datasheet | killark-hkh1bsdam71e.pdf |
| Series | HKH Series |
Shipping Info:
| Ship weight (kg) | 0.77 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 10.8 |
| Ship width (cm) | 15.24 |
