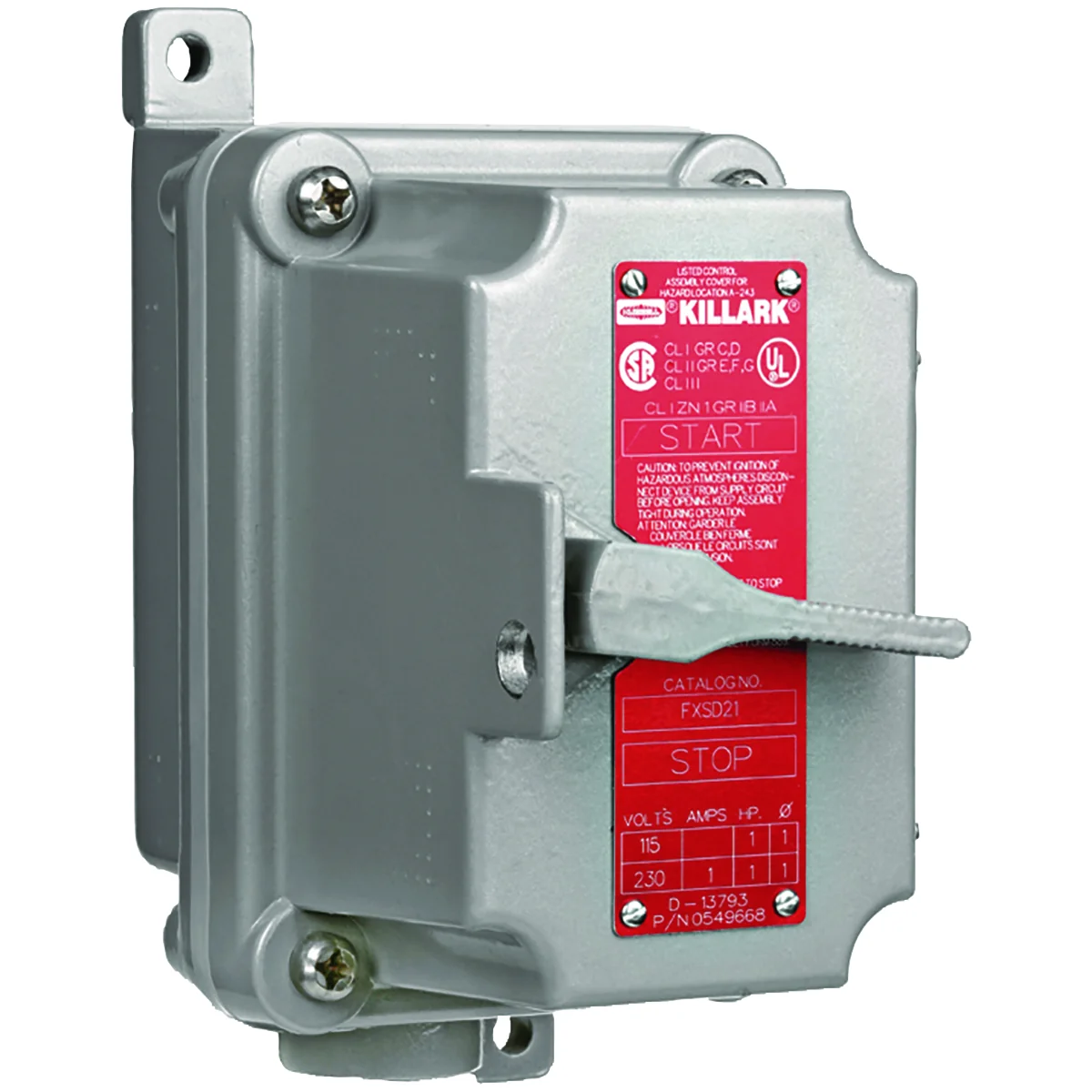

KILLARK fxs-11cu Dead-End 1-Pole Tumbler Switch Unit, Factory Sealed, Hub Size 1/2 Inch, 20A, Country Of Origin Usa
Get it by Friday, Aug 21
Request a Quote
Payment
Delivery
Product Specifications:
| Action | Sp |
| Actuator | Lever |
| Amps Rating | 20A |
| Application | FXS Tumbler Switches Are Suitable For Applications Where Making |
| Back Box Type | Fxb |
| Color | Gray |
| Depth | 3.15" |
| Dimensions | 6.63" x 6" x 4.38" |
| Enclosure | Dead End |
| Frequency | 50/60 Hz |
| Height | 4.38" |
| Hp | 1 HP @ 120V AC, 2 HP @ 240V AC |
| Hub Size | 1/2" |
| Length | 6.63" |
| Material | Aluminum |
| No. Of Poles | 1 |
| Product Datasheet | killark-fxs-11cu.pdf |
| Series | FXS Series |
| Switch Type | Pole |
| Type | Factory Sealed |
| Type Of Operator | Front Operated |
| Voltage Rating | 120-277V AC |
| Width | 6" |
Shipping Info:
| Ship weight (kg) | 1.98 |
| Ship height (cm) | 11.13 |
| Ship length (cm) | 8 |
| Ship width (cm) | 15.24 |
Documentation:
