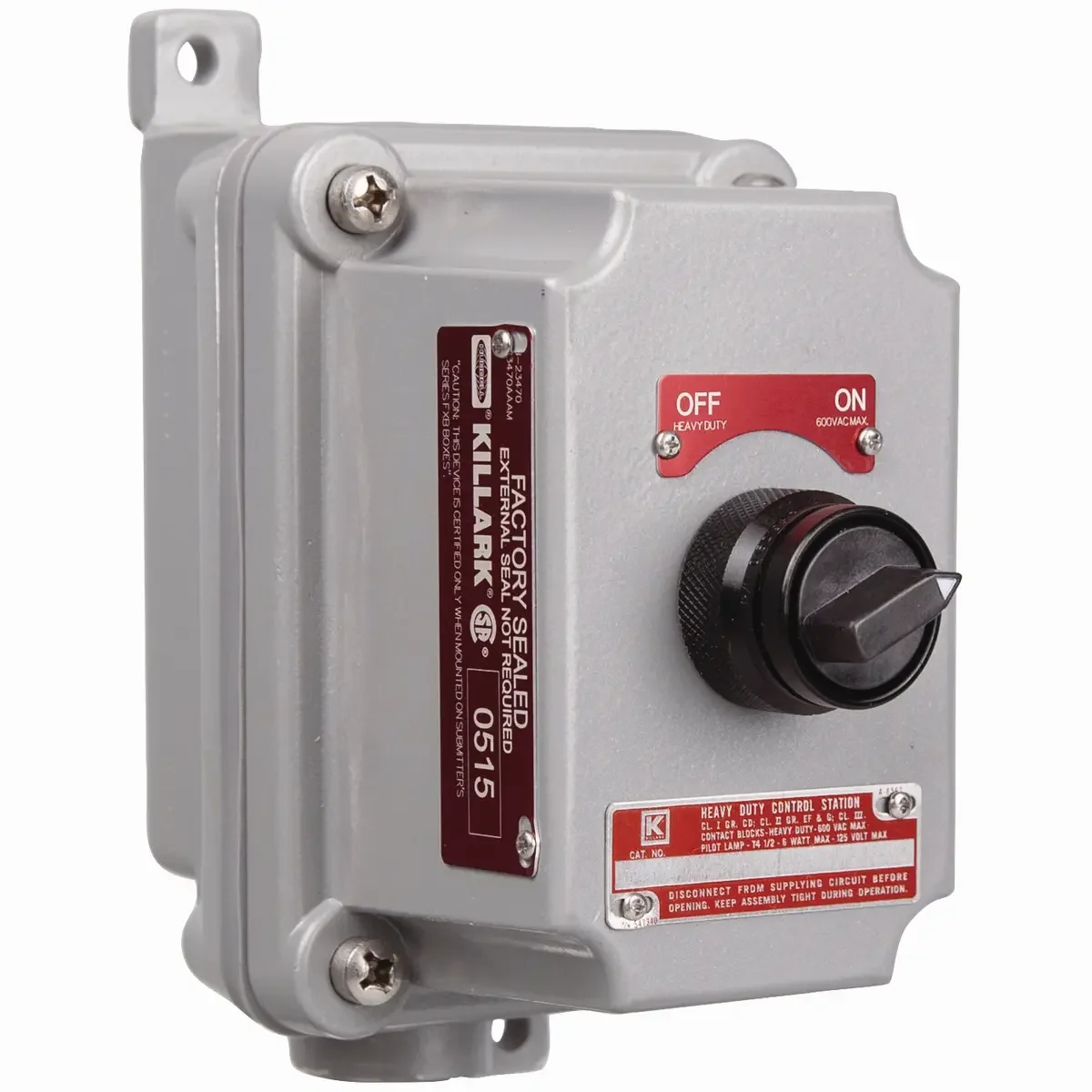

KILLARK FXCS-1S2L3F Dead-End 2-Position Spring Returned Standard Selector Switch- Return To Left From Right- 1/2 Inch Size Hub
Get it by Tuesday, Aug 25
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cover |
| Action | Momentary |
| Actuator | 2 Position Selector Switch |
| Amps Rating | 10A |
| Application | Seal-X Series Is Used To Prevent The Igniting Of External Hazardous Atmospheres By The Enclosed Arcing Devices In Such Areas As Hazardous Locations Due To The Presence Of Flammable Gases Or Vapors, Combustible Dusts Or Easily Ignitable Fibers Or Flyings |
| Back Box Type | Fxb |
| Color | Black |
| Contact Rating | 60A Inrush @ 120V AC, 30A Inrush @ 240V AC, 15A Inrush @ 480V AC, 12A Inrush @ 600V AC, 6A Breaking @ 120V AC, 3A Breaking @ 240V AC, 1.5A Breaking @ 480V AC, 1.2A Breaking @ 600V AC, 10A Carrying @ 120V AC, 10A Carrying @ 240V AC, 10A Carrying @ 480V AC, |
| Depth | 5.62" |
| Dimensions | 6.63" x 6" x 4.38" |
| Frequency | 50/60 Hz |
| Height | 4.38" |
| Hub Pattern | Dead End |
| Hub Size | 1/2" |
| Length | 6.63" |
| Nema Rating | NEEMA3 |
| No. Of Poles | 1 |
| Product Datasheet | killark-fxcs-1s2l3f.pdf |
| Series | FXCS Series |
| Type | Factory Sealed |
| Width | 6" |
Shipping Info:
| Ship weight (kg) | 2.03 |
| Ship height (cm) | 11.13 |
| Ship length (cm) | 14.27 |
| Ship width (cm) | 15.24 |
