KILLARK FSC-1M Box Cast Device 1 Gang
Item: AC2VCFModel: FSC-1MCross Ref: 2NA25
7 In Stock
Ships within 2 days via
€60.48 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Cast Device Box |
| Box Depth | 2" |
| Box Height | 2 7/8" |
| Box Shape | Rectangular |
| Box Type | Shallow Feed Thru |
| Box Width | 4 5/8" |
| Bracket Type | Lugs |
| Capacity | 18 cu. in. |
| Color | Gray |
| Composition | Duraloy Iron |
| Connection Type | Threaded |
| Depth | 2" |
| Feed Type | Feed Thru |
| Ground Screw | Yes |
| Hazardous Rated | Yes |
| Hub | 1/2 In. |
| Hub | 1/2" |
| Hub Size | 1/2" |
| Hub Type | Feed Through |
| Length | 6.38" |
| Material | Iron |
| Mounting Holes O.c. | 2.12 In. |
| Mounting Holes O.c. | 2 3/25" |
| Mounting Lugs | No |
| No. Of 1/2" Side Knockouts | 2 |
| No. Of Gangs | 1 |
| No. Of Hubs | 2 |
| No. Of Inlets | 2 |
| Overall Depth | 2" |
| Overall Height | 2 7/8" |
| Overall Width | 6 3/8" |
| Product Datasheet | killark-fd-1m.pdf |
| Standards | Csa, Ul Listed |
| Type | FSC |
| Width | 2 22/25" |
Shipping Info:
| Ship weight (kg) | 0.99 |
| Ship height (cm) | 8.38 |
| Ship length (cm) | 22.35 |
| Ship width (cm) | 10.41 |
| HS code | 8536908030 |
| Country of Origin | CN |
Documentation:
Product Variants
| Product | Model | Material | Hub Size | Color | Capacity | Hub | Depth | Type | Bracket Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
FD-1M | Iron | 1/2" | Gray | 28 cu. in. | 1/2" | 2 22/25" | FD | Lugs | €77.65 | |
|
FD-2M | Iron | 3/4" | Gray | 28 cu. in. | 3/4" | 2 22/25" | FD | Lugs | €68.05 | |
 |
FS-1M | Iron | 1/2" | Gray | - | 1/2" | 2" | FS | Lugs | €42.46 | |
|
FS-2M | Iron | 3/4" | Gray | - | 3/4" | - | FS | Lugs | €39.90 | |
 |
FSC-2M | Iron | 3/4" | Gray | 18 cu. in. | 3/4" | 2" | FSC | Lugs | €48.30 | |
 |

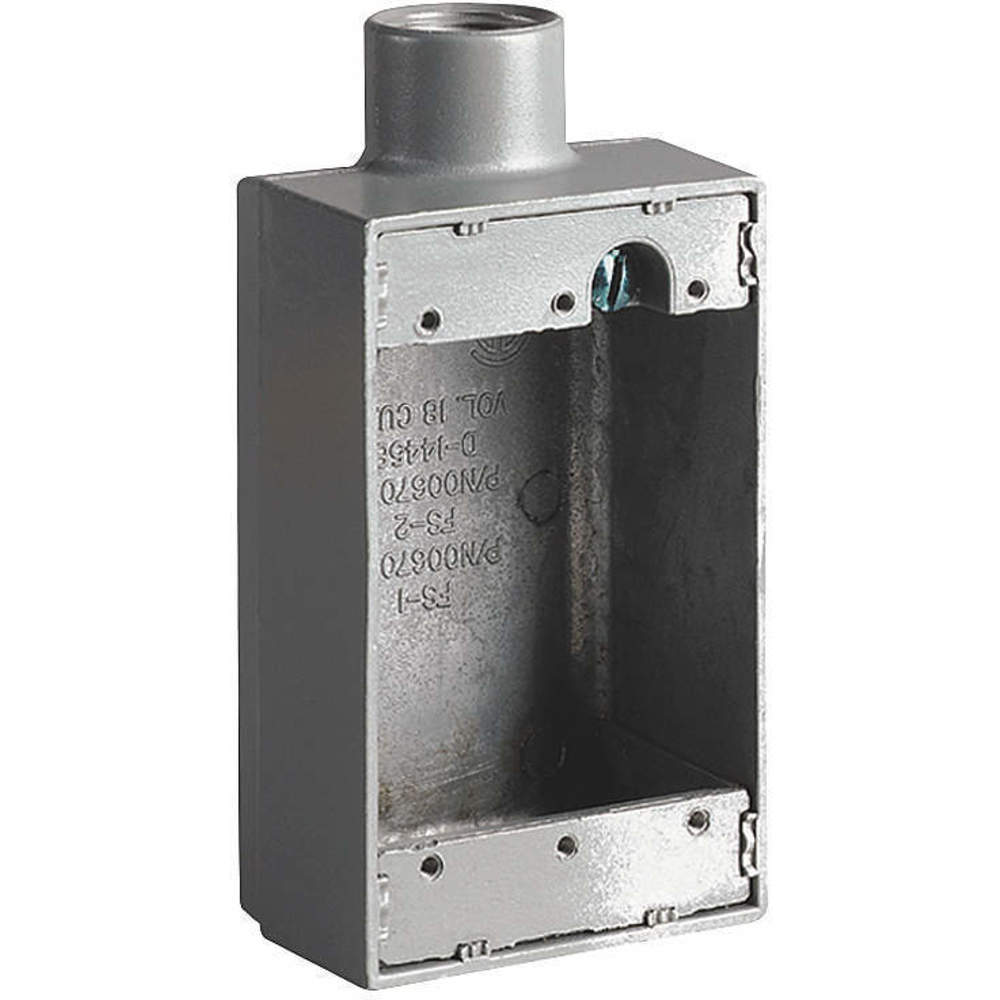

FS-1 | Aluminum | 1/2" | Metallic | 18 cu. in. | 1/2" | - | - | - | €54.84 | |
 |

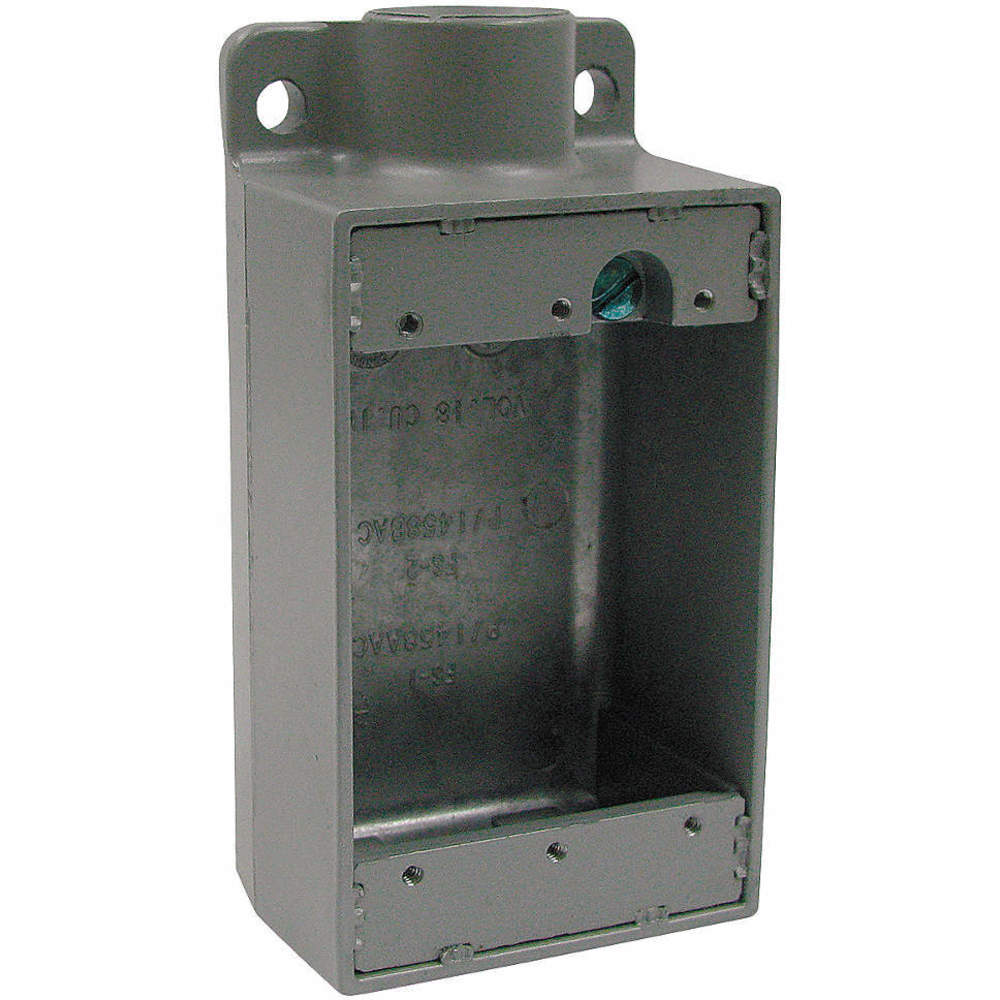

FS-2 | Aluminum | 3/4" | Gray | 18 cu. in. | 3/4" | - | - | Lugs | €55.62 |
