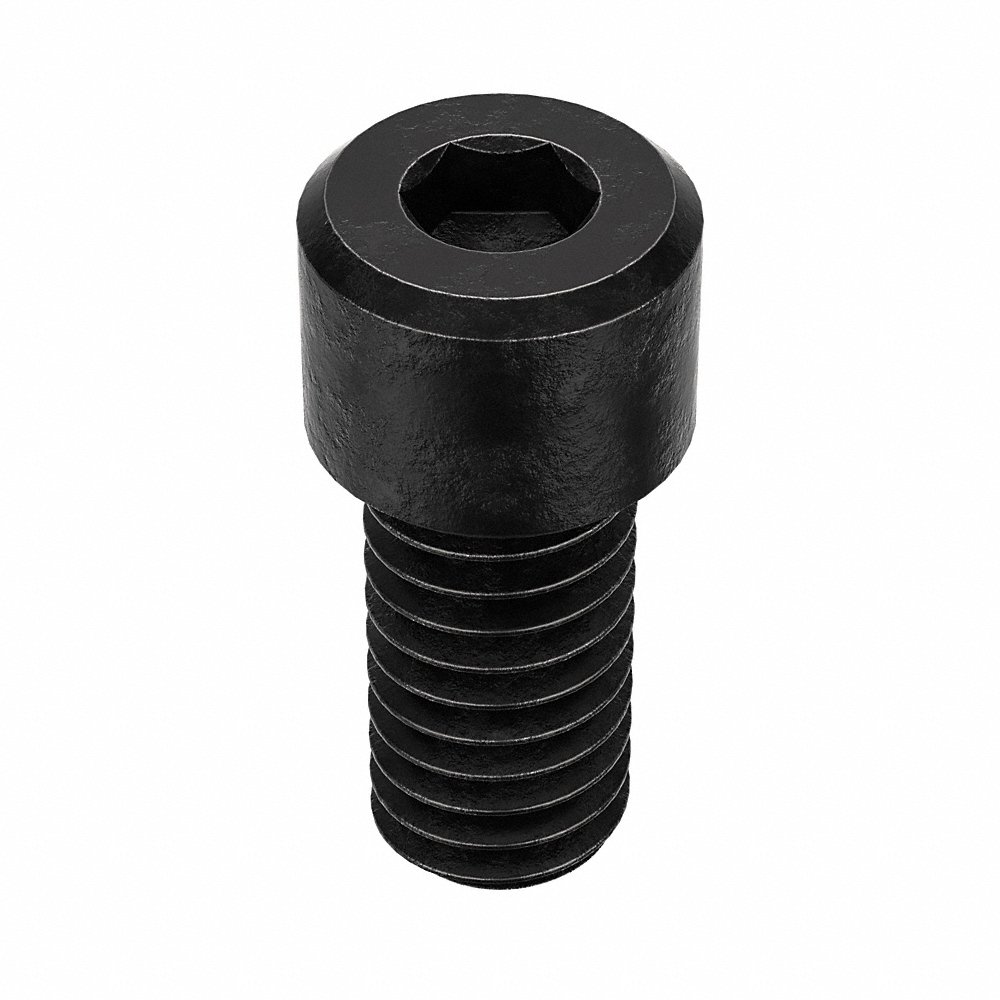

KERR LAKESIDE 31C62KCS Socket Head Cap Screw, 5/16 In - 18 Thread Size, Cyl., 5/8 In Lg., 0.312 In Head Ht.
Item: CG8WPKModel: 31C62KCSCross Ref: 40P216
7 In Stock
Ships within 2 days via
13.00% off
€33.91 /pkg. of 100
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Socket Head Cap Screw |
| Class | Class 3A |
| Combined Material & Grade | Grade Alloy Steel |
| Dimensional Standards | ASME B18.3 |
| Display Qty | 100 |
| Drive Size | 1/4" |
| Drive Type | Socket |
| Finish | Black Oxide |
| Grade | Grade 3A |
| Hardness | Rockwell C38-C43 |
| Head Dia. | 0.469" |
| Head Height | 0.312" |
| Head Type | Standard |
| Length | 5/8" |
| Material | Alloy, Steel |
| Material Quality Standards | Astm A574 |
| Material Type | Steel |
| Max. Head Height | 0.312" |
| Max. Temp. | 400°F |
| Min. Head Height | 0.306" |
| Min. Temp. | -20°F |
| Min. Tensile Strength | 180000 psi |
| Min. Thread Length | 5/8" |
| Min. Thread Length | 5/8 in |
| Screw Length | 5/8" |
| Standard | ASME B18.3, ASTM A574 |
| System Of Measurement | Imperial |
| Temp. | -20°F to +400°F |
| Tensile Strength | 180000 psi |
| Thread Direction | Right Hand |
| Thread Fit | 3A |
| Thread Length | 5/8" |
| Thread Size | 5/16"-18 |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 0.95 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
