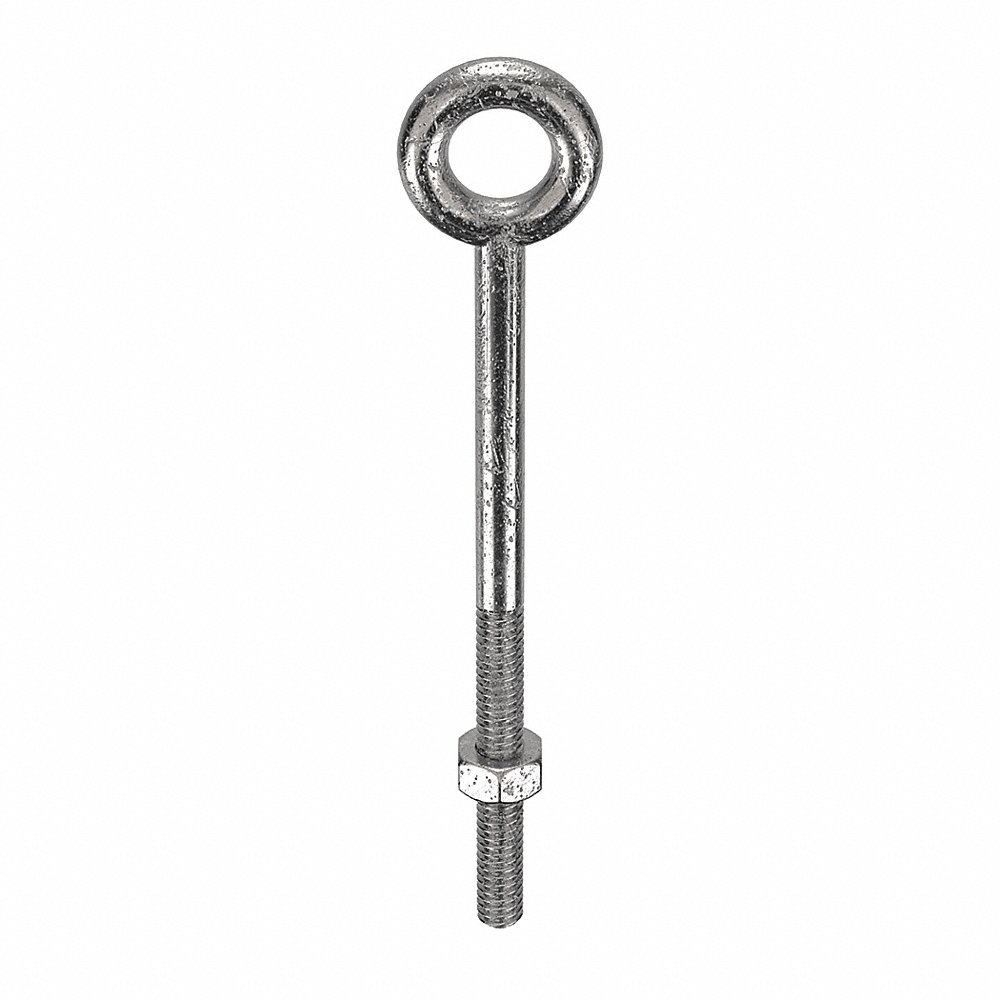

KEN FORGING N2001-316SS-4 Eye Bolt, 1/4 In - 20 Thread Size, Lift W/O Shoulder, 500 lbs. Work Load Limit, Pln, 2 In Thread Lg.
Item: CG8WMGModel: N2001-316SS-4Cross Ref: 19L166
7 In Stock
Ships within 2 days via
13.00% off
€24.62 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Eyebolt |
| Application | Lifting |
| Eye Closure | Closed |
| Eye Inside Dia. | 1/2" |
| Eye Outside Dia. | 1" |
| Finish | Plain |
| Included Nut | Nut Included |
| Length | 5.03" |
| Made In North America | Made In North America |
| Material | Stainless Steel |
| Material Grade/class | 316 |
| Max. Working Load | 500 lbs. |
| Overall Length | 5 1/32" |
| Screw Size | 1/4" |
| Shank Dia. | 1/4" |
| Shank Length | 4" |
| Shoulder Style | Without Shoulder |
| System Of Measurement | Imperial |
| Thread Length | 2" |
| Thread Size | 1/4"-20 |
| Thread Style | Partially Threaded |
| Thread Type | Coarse |
| Type | Machinery Eye Bolt |
| Working Load Limit | 500 lbs. |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Details:
- Includes: (1) Stainless Steel Hex Nut
Product Variants
| Product | Model | Eye Inside Dia. | Eye Outside Dia. | Shank Dia. | Shank Length | Thread Style | Thread Length | Screw Size | Material Grade/class | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
N2001-SS-6 | 1/2" | 1" | 1/4" | 6" | Partially Threaded | 3" | 1/4" | Grade 304 | €35.15 | |
 |
N2002-SS-3-1/4 | 5/8" | 1 1/4" | 5/16" | 3 1/4" | Partially Threaded | 1 1/2" | 5/16" | Grade 304 | €36.95 | |
 |
N2002-SS-6 | 5/8" | 1 1/4" | 5/16" | 6" | Partially Threaded | 3" | 5/16" | Grade 304 | €39.59 | |
 |
N2003-SS-6 | 3/4" | 1 1/2" | 3/8" | 6" | Partially Threaded | 3" | 3/8" | Grade 304 | €44.07 | |
 |
N2005-SS-4-1/2 | 1" | 2" | 1/2" | 4 1/2" | Partially Threaded | 3" | 1/2" | Grade 304 | €55.85 | |
 |
N2005-SS-12 | 1" | 2" | 1/2" | - | Partially Threaded | 4" | 1/2" | Grade 304 | €68.53 | |
 |
N2007-SS-6 | 1 3/8" | 2 1/2" | 5/8" | 6" | Partially Threaded | 3" | 5/8" | Grade 304 | €79.00 |
