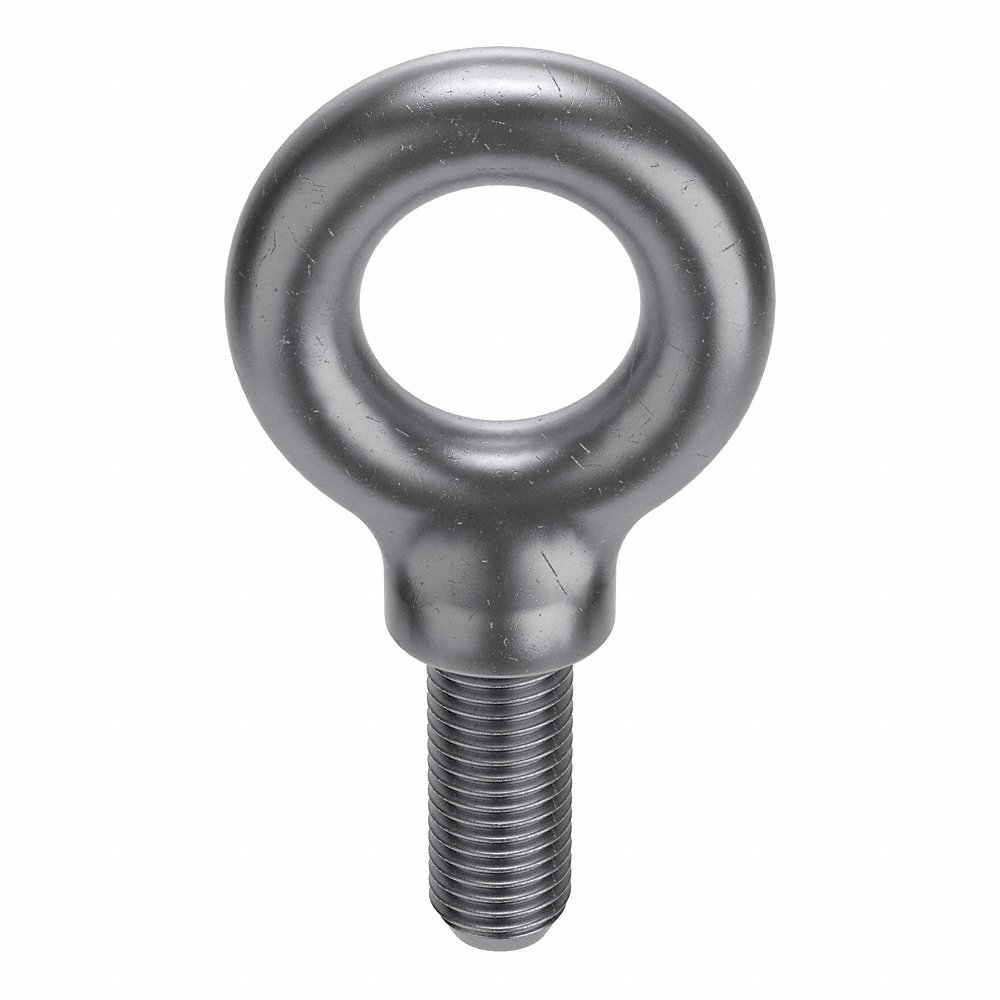

KEN FORGING K2030 Eye Bolt, 1 In - 8 Thread Size, Lift With Shoulder, 9000 lbs. Work Load Limit, Plain, Steel
Item: AD3HEQModel: K2030Cross Ref: 3ZGY7
7 In Stock
Ships within 2 days via
10.00% off
€40.66 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Eyebolt |
| Application | Lifting |
| Eye Closure | Closed |
| Eye Inside Dia. | 1 13/16" |
| Eye Outside Dia. | 3 9/16" |
| Finish | Plain |
| Includes Nut | Nut Not Included |
| Length | 6.437" |
| Made In North America | Made In North America |
| Material | Steel |
| Material Quality Standards | Astm A489 |
| Max Working Load | 9000 lbs. |
| Overall Length | 6 7/16" |
| Screw Size | 1" |
| Shank Dia. | 1" |
| Shank Length | 2 1/2" |
| Shoulder Dia. | 1 1/2" to 1.62" |
| Shoulder Length | 0.38" to 0.44" |
| Shoulder Style | With Shoulder |
| System Of Measurement | Imperial |
| Thread Length | 2 1/2" |
| Thread Size | 1"-8 |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
| Type | Machinery Eye Bolt |
| Working Load Limit | 9000 lbs. |
Shipping Info:
| Ship weight (kg) | 1.06 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 16.76 |
| Ship width (cm) | 9.14 |
| HS code | 7318152095 |
| Country of Origin | US |
Product Variants
| Model | Thread Size | Shank Length | Eye Inside Dia. | Thread Length | Eye Outside Dia. | Working Load Limit | Thread Type | Shank Dia. | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| U16000.037.0125 | 3/8"-16 | 1 1/4" | 1" | 1 1/4" | 1 11/16" | 1300 lbs. | Coarse | 3/8" | 1 | €10.03 | |
| U16000.025.0100 | 1/4"-20 | 1" | 3/4" | 1" | 1 3/16" | 500 lbs. | Coarse | 1/4" | 1 | €5.18 | |
| U16000.031.0112 | 5/16"-18 | 1 1/8" | 7/8" | 1 1/8" | 1 7/16" | 900 lbs. | Coarse | 5/16" | 1 | €9.73 | |
| U16000.037.0075 | 3/8"-16 | 3/4" | 1" | 3/4" | 1 11/16" | 1300 lbs. | Coarse | 3/8" | 1 | €9.87 | |
| U16000.037.0062 | 3/8"-16 | 5/8" | 1" | 5/8" | 1 11/16" | 1300 lbs. | Coarse | 3/8" | 1 | €10.21 | |
| M16001.100.0001 | M10 x 1.5 | 35 mm | 27 mm | 35.3 mm | 46 mm | 1628 lbs. | Coarse | 10 mm | 1 | €25.14 | |
| M16001.080.0001 | M8 x 1.25 | 31.7 mm | 25 mm | 32 mm | 43 mm | 500 lbs. | Coarse | 8 mm | 1 | €20.90 |
