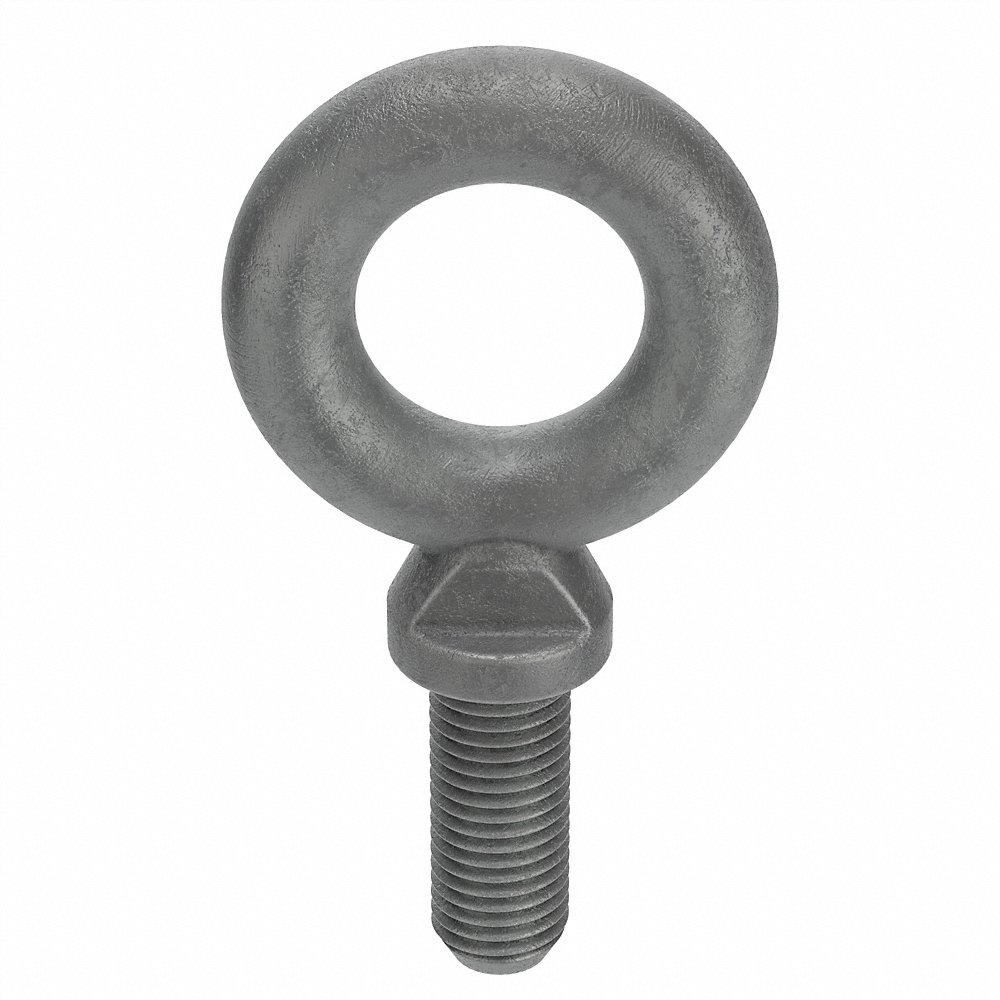

KEN FORGING K2029-HDG Eye Bolt, 7/8 In - 9 Thread Size, Lift With Shoulder, 7000 lbs. Work Load Limit, Galv
Item: CG8WLKModel: K2029-HDGCross Ref: 19L085
7 In Stock
Ships within 2 days via
10.00% off
€47.23 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Eyebolt |
| Application | Lifting |
| Eye Inside Diameter | 1 11/16" |
| Eye Outside Diameter | 3 1/4" |
| Finish | Hot Dipped Galvanized |
| Includes Nut | Nut Not Included |
| Made In North America | Made In North America |
| Material Quality Standards | Astm A489 |
| Max Working Load | 7000 lbs. |
| Overall Length | 6 13/64" |
| Screw Size | 7/8" |
| Shank Diameter | 7/8" |
| Shoulder Diameter | 1 3/8" |
| Tensile Strength | 65000 psi |
| Thread Length | 2 1/4" |
| Thread Size | 7/8"-9 |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
| Type | Machinery Eye Bolt |
Shipping Info:
| Ship weight (kg) | 0.72 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Thread Size | Shank Length | Eye Inside Dia. | Thread Length | Eye Outside Dia. | Working Load Limit | Thread Type | Shank Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
N2022-6 | 5/16"-18 | 6" | 5/8" | 3" | 1 1/4" | 800 lbs. | Coarse | 5/16" | €17.86 | |
|
N2023-6 | 3/8"-16 | 6" | 3/4" | 3" | 1 1/2" | 1200 lbs. | Coarse | 3/8" | €22.11 | |
 |
N2025-4 | 1/2"-13 | 4" | 1" | 3" | 2" | 2200 lbs. | Coarse | 1/2" | €23.57 | |
 |
N2025-12 | 1/2"-13 | 12" | 1" | 4" | 2" | 2200 lbs. | Coarse | 1/2" | €49.19 | |
 |
N2027-4 | 5/8"-11 | 4" | 1 3/8" | 3" | 2 1/2" | 3500 lbs. | Coarse | 5/8" | €27.45 | |
|
N2027-8 | 5/8"-11 | 8" | 1 3/8" | 4" | 2 1/2" | 3500 lbs. | Coarse | 5/8" | €49.49 | |
 |
N2027-10 | 5/8"-11 | 10" | 1 3/8" | 4" | 2 1/2" | 3500 lbs. | Coarse | 5/8" | €51.25 |
