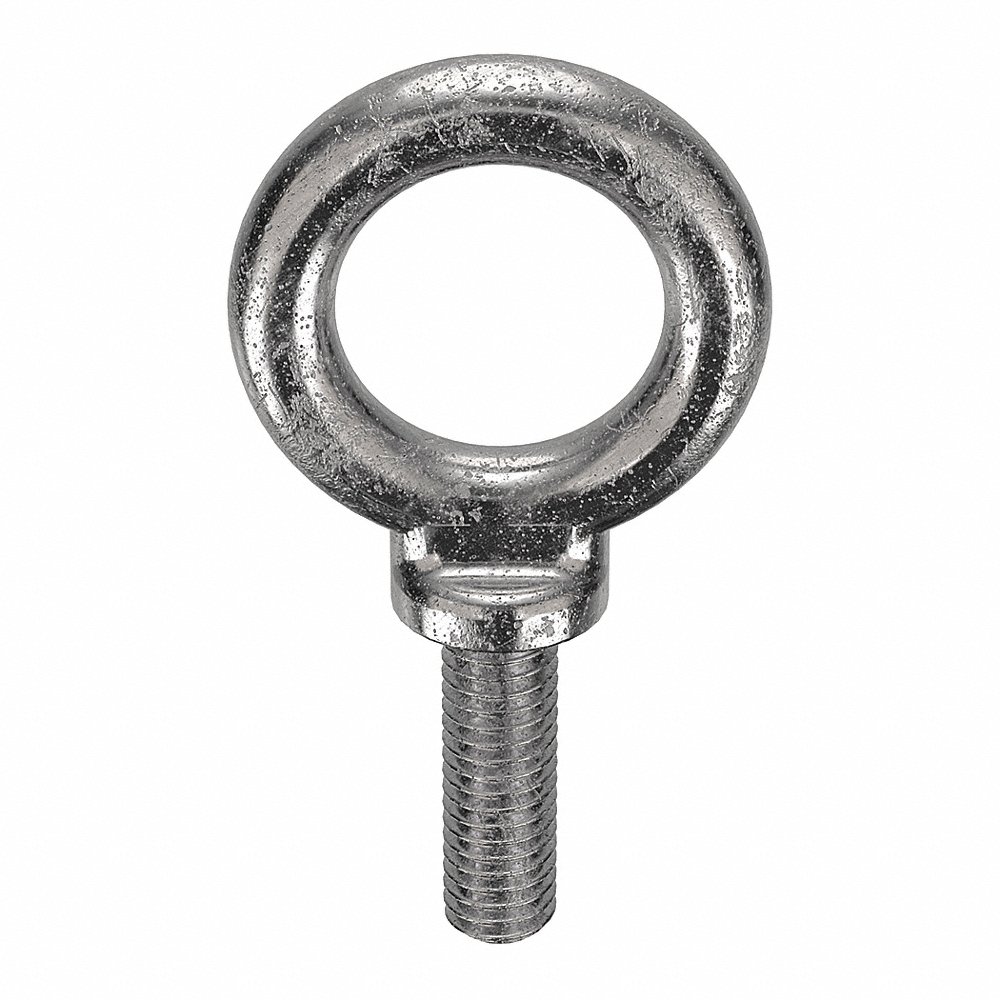

KEN FORGING K2023-SS Eye Bolt, 3/8 In - 16 Thread Size, Lift With Shoulder, 1300 lbs. Work Load Limit, Pln, 1 In Thread Lg.
Item: CG8WJWModel: K2023-SSCross Ref: 19L123
7 In Stock
Ships within 2 days via
10.00% off
€40.91 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Eyebolt |
| Application | Lifting |
| Eye Inside Dia. | 1" |
| Eye Outside Dia. | 1 21/32" |
| Finish | Plain |
| Grade | Grade 304 , Stainless Steel |
| Includes Nut | Nut Not Included |
| Length | 3 12/25" |
| Made In North America | Made In North America |
| Material Grade/class | Grade 304 |
| Max Working Load | 1300 lbs. |
| Min. Tensile Strength | 75000 psi |
| Overall Length | 3 31/64" |
| Screw Size | 3/8" |
| Shank Dia. | 3/8" |
| Shank Length | 1 1/4" |
| Shoulder Dia. | 21/32" |
| Shoulder Length | 5/32" |
| Shoulder Style | With Shoulder |
| System Of Measurement | Imperial |
| Tensile Strength | 75000 psi |
| Thread Length | 1" |
| Thread Size | 3/8"-16 |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
| Type | Machinery Eye Bolt |
| Working Load Limit | 1300 lbs. |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Thread Size | Shank Length | Eye Inside Dia. | Thread Length | Eye Outside Dia. | Working Load Limit | Application | Thread Type | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
RB580X10-001P2 | M10 x 1.5 | 17 mm | 25 mm | 17 mm | - | 506 lbs. | Lifting | Coarse | 1 | €48.44 | |
 |
RB580X12-001P2 | M12 x 1.75 | 20.5 mm | 30 mm | 20.5 mm | 54 mm | 748 lbs. | Lifting | Coarse | 1 | €53.50 | |
 |
RB580X16-001P2 | M16 x 2 | 27 mm | 35 mm | 27 mm | 63 mm | - | Lifting | Coarse | 1 | €103.45 | |
 |
RB580X20-001P2 | M20 x 2.5 | - | - | 30 mm | - | - | Lifting | Coarse | 1 | €120.75 | |
 |
M51940.080.0001 | M8 x 1.25 | 13 mm | 20 mm | 13 mm | 36 mm | 140 lbs. | Routing | Coarse | 1 | €9.51 | |
 |
M51940.120.0001 | M12 x 1.75 | 20.5 mm | 30 mm | 20.5 mm | 54 mm | 339 lbs. | Routing | Coarse | 1 | €52.46 | |
 |
K2021-316SS-BLANK | Unthreaded | 1" | 3/4" | - | 1 3/16" | - | - | Not Applicable | 1 | €26.60 |
