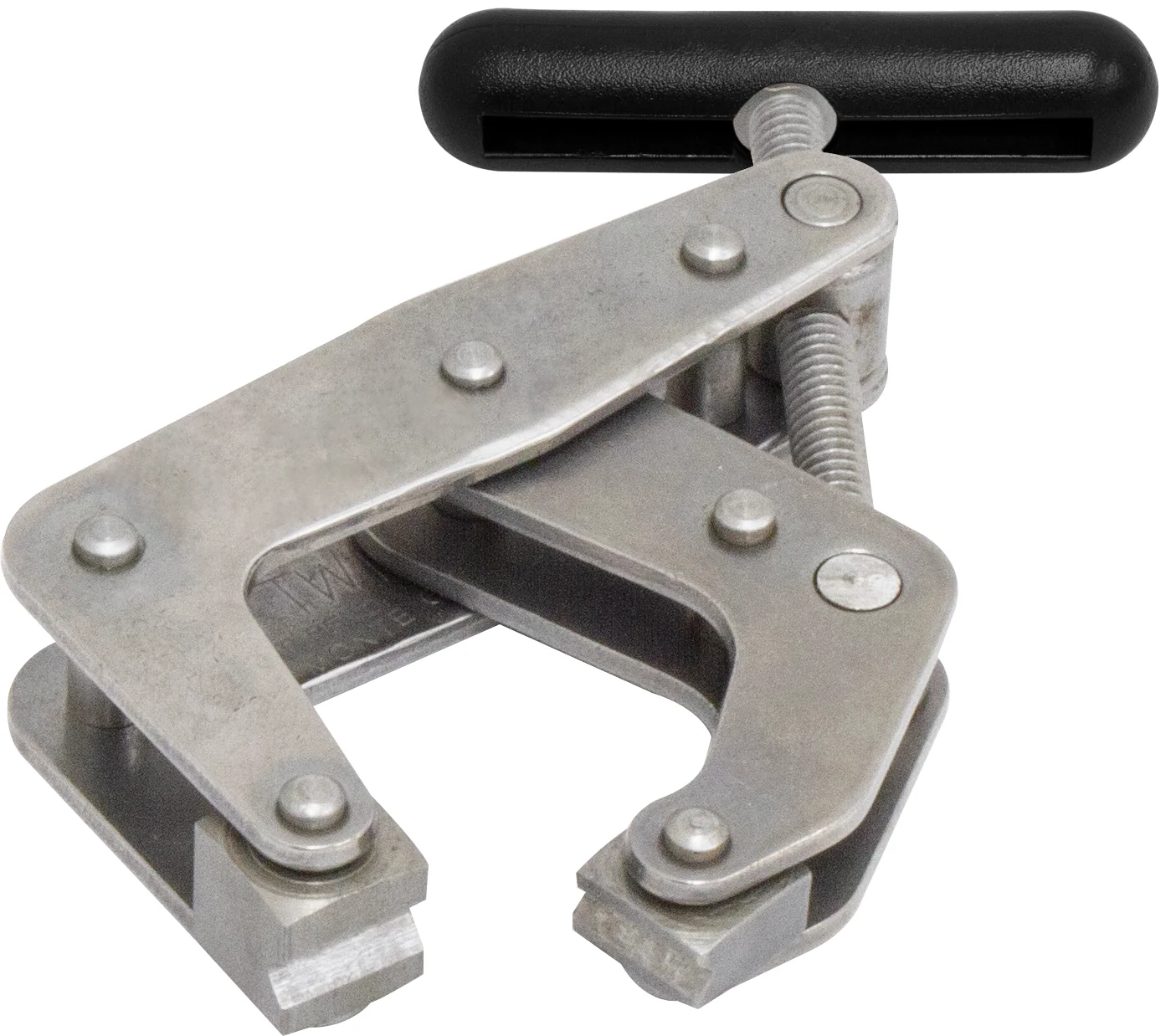

KANT-TWIST K020TSW Cantilever Clamp, Stainless Steel With Weaver-Grip, 2 Inch Jaw Capacity, 700 lb Max Clamp Force
Item: CD8YPFModel: K020TSWCross Ref: 54ZY04
7 In Stock
Ships within 2 days via
5.00% off
€82.49 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Cantilever Clamp |
| Anvil Material | Stainless Steel |
| Body Finish | Tumbled |
| Body Material | Stainless Steel |
| Clamping Force | 700 lbs. |
| Clamping Pressure | 700 lbs. |
| Duty Rating | Light Duty |
| Handle Design | Fixed T |
| Handle Style | Fixed T |
| Jaw Opening | 2" |
| Jaw Pad Material | Stainless Steel |
| Jaw Pad Type | Flat, V Grooved |
| Max. Jaw Opening | 2" |
| Max. Opening | 2" |
| Open Width | 3-1/4" |
| Opening Width | 3 1/4" |
| Overall Length | 4" |
| Product Datasheet | kant-twist-k025tdw.pdf |
| Spindle Material | Stainless Steel |
| Thickness | 7/8" |
| Throat Depth | 1 1/4" |
| Throat Depth Closed | 1 13/16" |
| Throat Depth Open | 1 3/4" |
Shipping Info:
| Ship weight (kg) | 0.2 |
| Ship height (cm) | 1.59 |
| Ship length (cm) | 10.8 |
| Ship width (cm) | 6.35 |
| HS code | 8205700090 |
| Country of Origin | US |
Product Details:
- Kant-Twist K020TSW cantilever clamp eliminates off-centre positioning; ideal for spot welding, drilling and bolting applications
- Feature unique design eliminates distorting and twisting of workpieces and also provides strong 4:1 clamp ratio
- Free floating jaws adjusts easily to irregular surfaces while offering three gripping faces (pipe, flat and angled) to meet all application needs
- 1-1/4 inch throat depth provides better hold onto the material while the stainless steel construction provides usage in corrosive or sanitary environments
