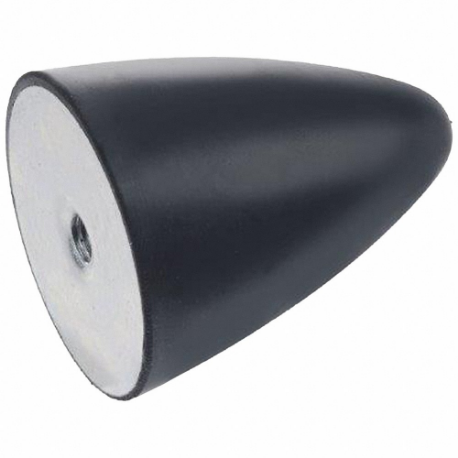

J.W. WINCO 453.2-38-45-5/16-55 Vibration/Shock Absorption Mount, Conical, Tapped, 5/16 Inch Size-18, 1.5 Inch Dia
Get it by Friday, Dec 19
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€26.09 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Mount |
| Body Height | 1.77" |
| Height | 1.77" |
| Isolator Body Material | Natural Rubber |
| Isolator Material | Natural Rubber |
| Max Load Downward Compression | 146 lbf. |
| Max Load Sideways Shear | 374 lbf. |
| Max. Load Downward Compression | 146 lbf. |
| Maximum Load Sideways Shear | 374 lbf. |
| Mounting | Conveyor |
| Operating Temperature - Maximum | 176°F |
| Operating Temperature - Minimum | -40°F |
| Overall Dia. | 1 1/2" |
| Overall Diameter | 1.5" |
| Resistant To | Abrasion, Wear |
| Shape | Conical |
| Stud Or Tap Grade | Grade 304 |
| Stud Or Tap Material | Stainless Steel |
| Style | One Tapped Hole |
| Tap Depth | 0.31" |
| Thread Material | Stainless Steel |
| Thread Material Grade | Grade 304 |
| Thread Size | 5/16"-18 |
| Vibration Isolator Style | Female x Non Threaded |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Isolator Material | Thread Size | Height | Stud Or Tap Material | Style | Max. Load Downward Compression | Shape | Maximum Load Sideways Shear | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 453.1-19-25-1/4-55 | Natural Rubber | 1/4"-20 | 0.98" | Stainless Steel | One Threaded Stud | 22 lbf. | Conical | 90.96 lbf. | €13.22 | |
| 254-25-1/4X20-25.4-55 | Natural Rubber | 1/4"-20 | 0.81" | Stainless Steel | One Threaded Stud | 96.67 lbf. | Conical | 468 lbf. | €11.80 | |
| 254-25-1/4X20-12.7-55 | Natural Rubber | 1/4"-20 | 0.81" | - | One Threaded Stud | 96.67 lbf. | Conical | 468 lbf. | €13.28 | |
| 453.1-45-51-3/8-55 | Natural Rubber | 3/8"-16 | 2.01" | Stainless Steel | One Threaded Stud | 168 lbf. | Conical | 284 lbf. | €87.22 | |
| 254-50-3/8X16-31.8-55 | Natural Rubber | 3/8"-16 | 1.69" | Stainless Steel | One Threaded Stud | 364 lbf. | Conical | 885 lbf. | €48.01 | |
| 453.1-51-57-3/8-55 | Natural Rubber | 3/8"-16 | 2 6/25" | Stainless Steel | One Threaded Stud | 191 lbf. | Conical | 285 lbf. | €112.51 | |
| 453.1-32-38-5/16-55 | Natural Rubber | 5/16"-18 | 1 1/2" | Stainless Steel | One Threaded Stud | 45 lbf. | Conical | 155 lbf. | €30.02 |
