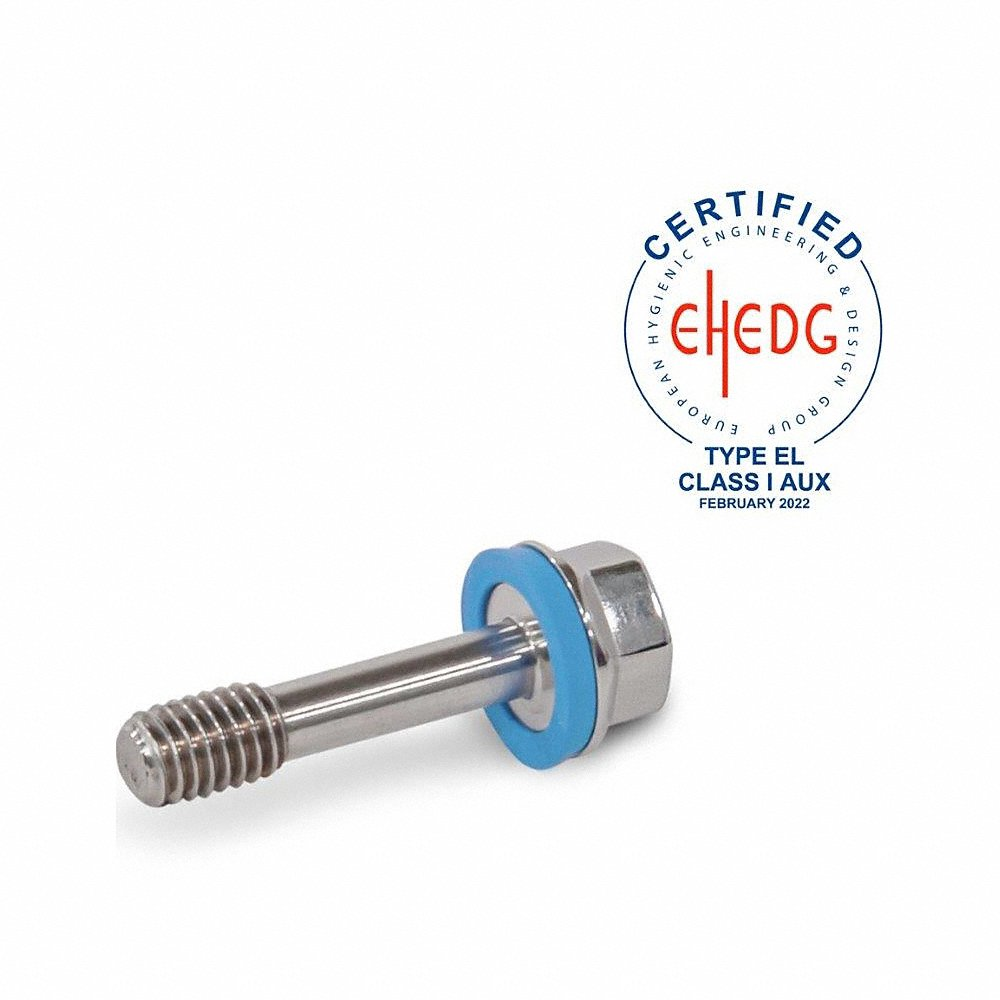

J.W. WINCO 1582-M6-30-PL-E-1 Not Graded, M6 Hygienic Hex Head Screws, Polished Stainless Steel, 30 mm L
Item: DK2KCXModel: 1582-M6-30-PL-E-1Cross Ref: 809EA4
7 In Stock
Ships within 2 days via
13.00% off
€47.84 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Average Surface Roughness | Less Than 0.8 µm |
| Fastener Length | 30 mm |
| Finish | Polished |
| Flange Dia. | 13 mm |
| For Use In Systems | Hygienic Areas |
| Head Height | 7.5 mm |
| Hole Size | 6.5 mm |
| Includes | Washer |
| Material | Stainless Steel |
| Material Grade/class | Not Graded |
| Max. O Ring Temp. | 120°C |
| Min. O-ring Temp. | -40°C |
| Min. Thread Length | 8 mm |
| O - Ring Material | EPDM |
| Resistance Properties | Corrosion Resistant |
| Rohs Compliant | Yes |
| Seal Material | Blue EPDM |
| System Of Measurement | Metric |
| Tensile Strength | 500 N/sq. mm |
| Washer Type | FDA Approved Pre Mounted Sealing |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 10.16 |
| Country of Origin | DE |
