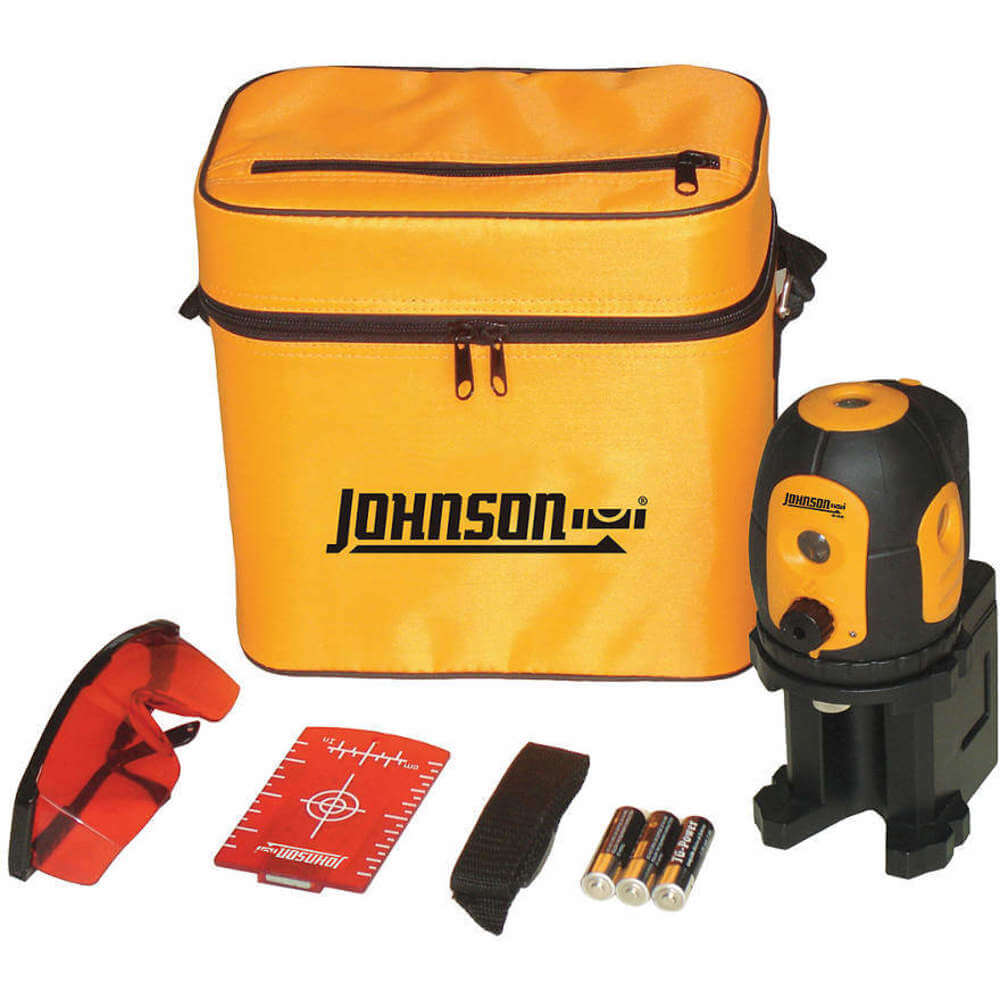

JOHNSON 40-6680 Laser Level 5-beam Self-leveling Red
Item: AB4LQDModel: 40-6680Cross Ref: 1YRV2
7 In Stock
Ships within 2 days via
5.00% off
€599.81 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Line/Dot Laser Level |
| Accuracy | ±1/8" @ 50 Ft. |
| Auto Leveling Range | 4.5° |
| Auto Leveling Range | 4.5 Degrees |
| Auto Shutoff | Yes |
| Automatic Shut-off | Yes |
| Battery Type | AA |
| Bluetooth | Not Bluetooth Compatible |
| Features | Locking Mechanism Protects Inner Pendulum During Transportation |
| Height | 3 1/8" |
| Included | Case, Laser Glasses, Mounting Strap, Target |
| Included Batteries | Batteries Included |
| Laser Beam Color | Red |
| Laser Class | IIIa |
| Laser Class | Class 3A |
| Laser Output | Less Then 5 mW |
| Laser Projection | Horizontal, Vertical |
| Length | 4" |
| Leveling Type | Self-Leveling |
| Leveling Type | Electronic Self Leveling |
| Max. Indoor | 200 ft. |
| Max. Outdoor | 200 ft. |
| Max. Output | 5 mW |
| Max. Output | 5mW |
| Max. Working Range Without Detector | 200 ft. |
| Modes | 5 |
| Mounting Type | Magnetic |
| No. Of Beams | 5 |
| No. Of Dots | 5 |
| No. Of Level Vials | 0 |
| No. Of Lines | 0 |
| No. Of Planes | 0 |
| No. Of Plumb Vials | 0 |
| Number Of Beams | 5 |
| Number Of Level Vials | 0 |
| Number Of Lines | 0 |
| Number Of Plumb Vials | 0 |
| Operating Temp. | +14°F to +113°F |
| Overall Depth | 3 1/8" |
| Overall Height | 4" |
| Overall Width | 3 7/8" |
| Range W/o Detector | 200 ft. |
| Self Leveling Range | -4.5° to +4.5° |
| Total No. Of Vials | 0 |
| Total Number Of Vials | 0 |
| Tripod Thread Size | 1/4"-20, 5/8"-11 |
| Type | Horizontal And Vertical |
| Visual/audible Indicators | Yes |
| Wavelength | 650nm |
| Width | 3 7/8" |
Shipping Info:
| Ship weight (kg) | 2.52 |
| Ship height (cm) | 30.48 |
| Ship length (cm) | 30.99 |
| Ship width (cm) | 12.95 |
| HS code | 9015304000 |
| Country of Origin | CN |
Product Details:
- Beam Color (Red)
- Plumb Down (Yes)
- Plumb Up (Yes)
Product Variants
| Product | Model | Height | Laser Beam Color | Mounting Type | Overall Depth | Overall Height | Auto Leveling Range | Range W/o Detector | Self Leveling Range | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
40-6516 | 5" | Red | Tripod | 6 5/8" | 4 15/16" | 4° | 200 ft. | -3° to +3° | €991.58 | |
 |
40-6607 | 3" | Green | Magnetic, Tripod | 2 5/16" | 3 5/8" | -5° to +5° | 50 ft. | -4° to +4° | - | RFQ
|
 |

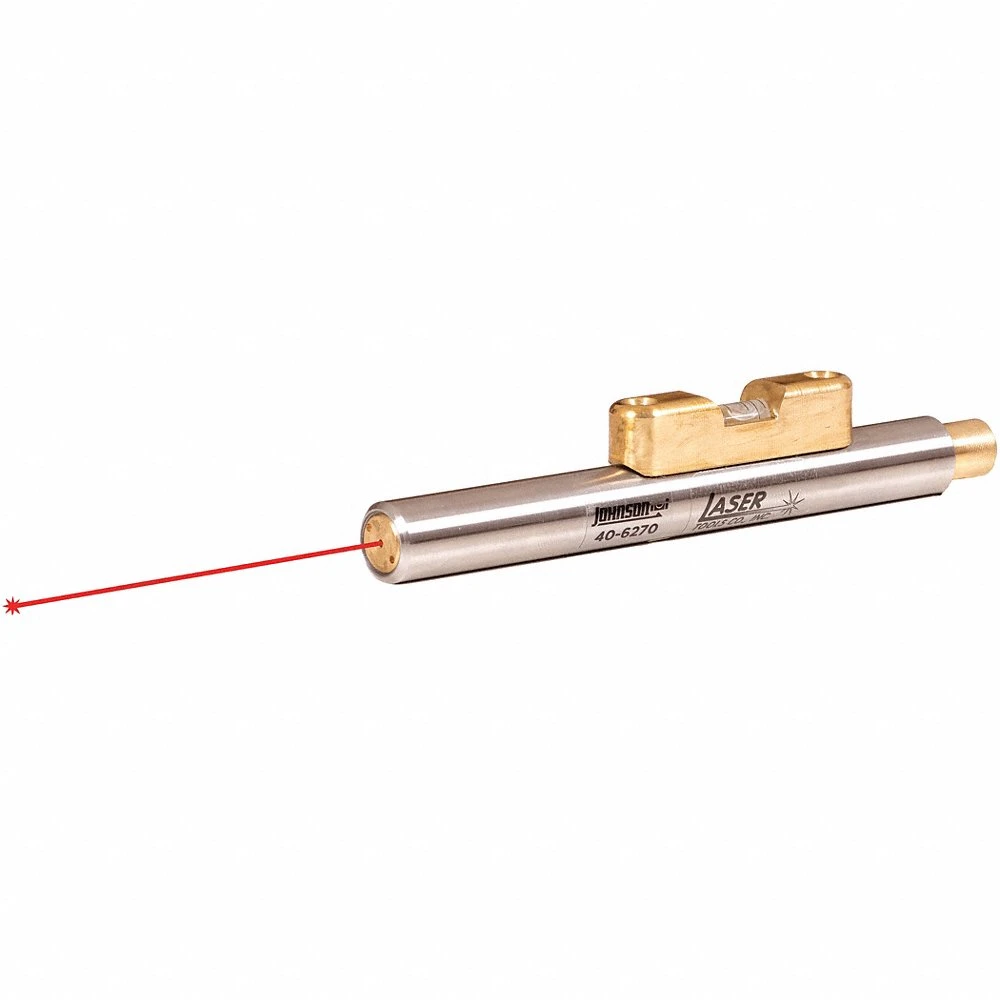

40-6270 | 3/4" | Red | Magnetic | - | - | - | 100 ft. | No | - | RFQ
|
 |

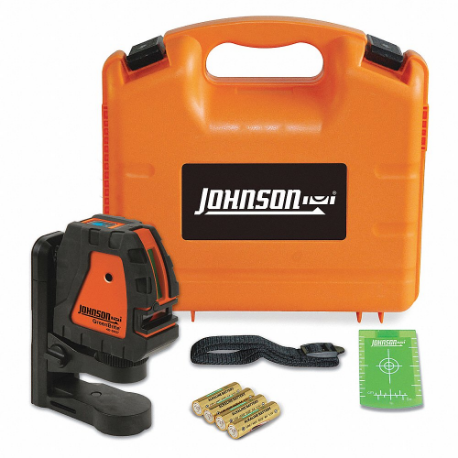

40-6657 | 6" | Green | Magnetic | 4 3/4" | 2 1/16" | -3° to +3° | 200 ft. | -3° to +3° | - | RFQ
|
