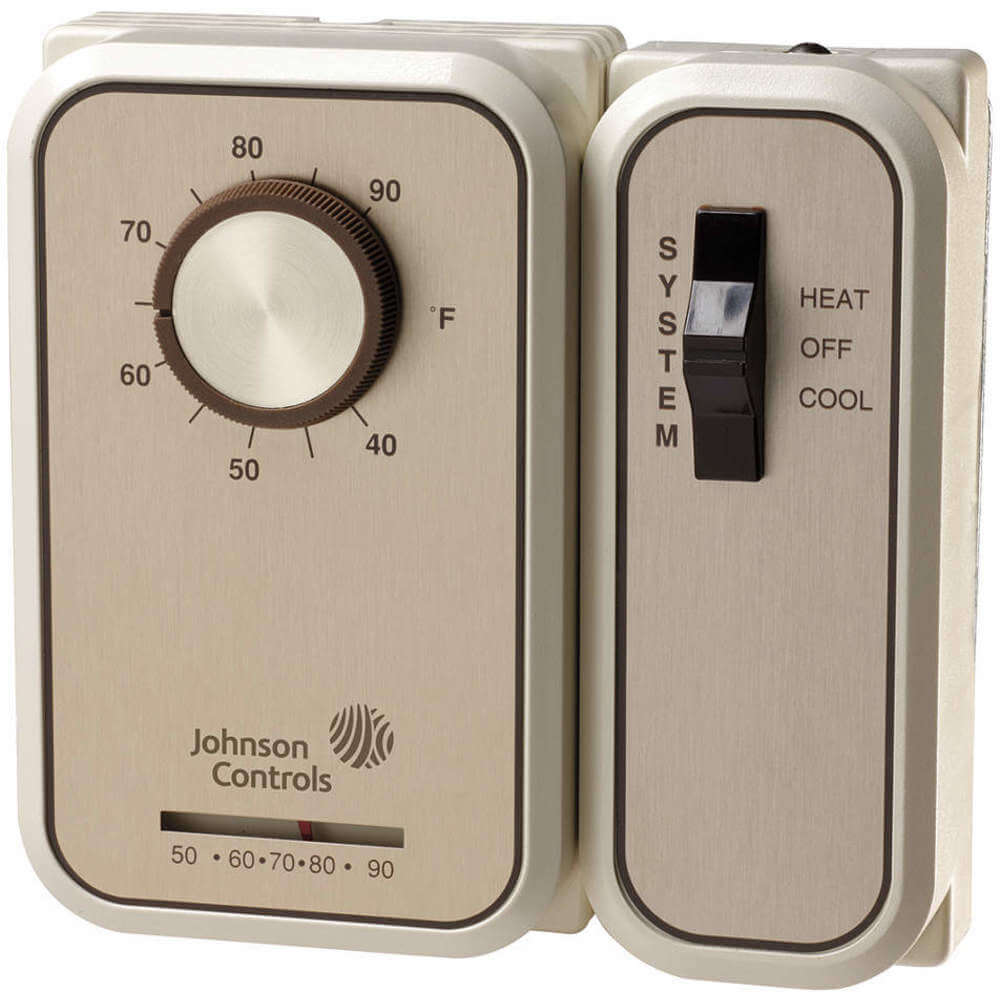

JOHNSON CONTROLS T46SDA-1C Fan Coil Thermostat Heating/cooling
Item: AF7EQDModel: T46SDA-1CCross Ref: 20XJ84
7 In Stock
Ships within 2 days via
10.00% off
€323.75 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fan Coil Thermostat |
| Application | Heat And Cool |
| Changeover Type | Manual |
| Color | Beige |
| Compatible System Type | Fan Coil Unit |
| Contact Rating | 24-277V AC |
| Control Range | +40°F to +90°F |
| Control Type | Exposed Dial |
| Dehumidification Control | No |
| Depth | 2.906" |
| Differential Type | Fixed |
| Digit Size | Easy Read |
| Display Type | Analog |
| Dual Transformer Compatible | No |
| Electrical Connection Type | Hardwired |
| Enclosure Material | Plastic |
| Enclosure Type | Plastic |
| Fan Settings | Hi Med Low |
| Full Load Amps @ 120v | 6A |
| Full Load Amps @ 120v | 6 |
| Full Load Amps @ 120v Ac | 12A |
| Full Load Amps @ 240v Ac | 6A |
| Full Load Amps @ 240vac | 3 |
| Full Load Amps @ 277v Ac | 5.2A |
| Height | 4.703" |
| Housing Color | Beige |
| Housing Material | Plastic |
| Housing Type | Plastic |
| Humidification Control | No |
| Includes Positive Off | Yes |
| Locked Rotor Amps @ 120v | 34.8A |
| Locked Rotor Amps @ 120v | 34.8 |
| Locked Rotor Amps @ 240v | 17.4 |
| Locked Rotor Amps @ 240v | 17.4A |
| Maximum Control Temperature | 90°F |
| Minimum Control Temperature | 40°F |
| Mounting Direction | Horizontal, Vertical |
| Mounting Location | Box |
| Number Of Stages | 1 |
| Number Of Switches | 2 |
| Overall Depth | 2 15/16" |
| Overall Height | 4 11/16" |
| Overall Width | 4 7/8" |
| Pilot Duty Rating | 24-277V AC |
| Product Datasheet | johnson-controls-t46sda-1c.pdf |
| Programming Capability | Not Programmable |
| Sensor Type | Temperature |
| Shape | Rectangle |
| Standards | Csa, Ul |
| Switch Action | Open, Close On Rise |
| Switch Type | SPDT |
| System Settings | Cool Heat Off |
| Temperature Differential | 3°F |
| Temperature Limiting | Yes |
| Temperature Readout | No |
| Temperature Scale | Celsius/Fahrenheit |
| Temperature Settings Per Day | Manual Adjust |
| Thermostat Type | Line Voltage |
| Type | Cooling, Heating |
| Voltage | 24-277V AC |
| Width | 568686" |
Shipping Info:
| Ship weight (kg) | 0.56 |
| Ship height (cm) | 11.91 |
| Ship length (cm) | 7.46 |
| Ship width (cm) | 12.38 |
| HS code | 9032100030 |
| Country of Origin | US |
Product Details:
- Differential (Deg. F) (0.7)
Documentation:
Product Variants
| Product | Model | Switch Action | Sensor Type | Overall Depth | Housing Color | Overall Height | Overall Width | Thermostat Type | Compatible System Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

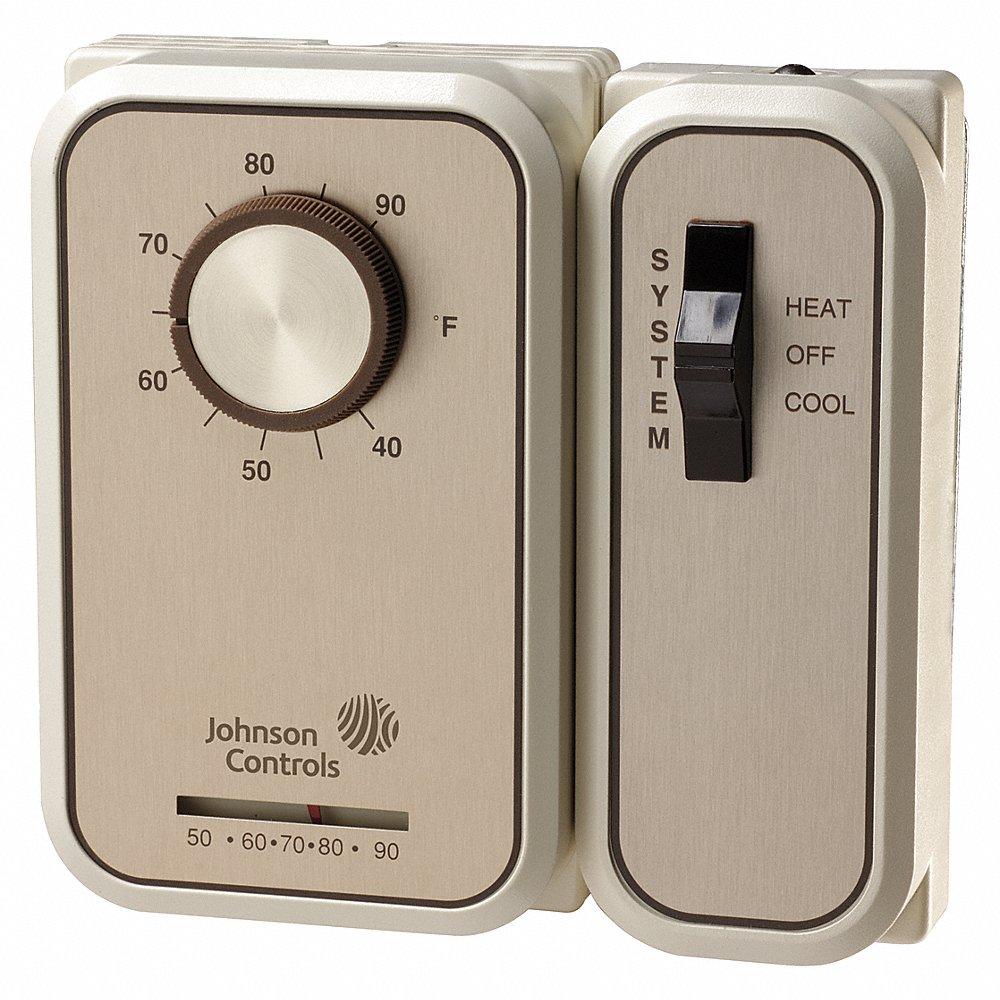

T46SAA-1C | Open/Close On Rise | Bi Metal | 3" | Brown | 5" | 3" | Line Voltage Mechanical | Fan Coil Unit | €338.38 |
