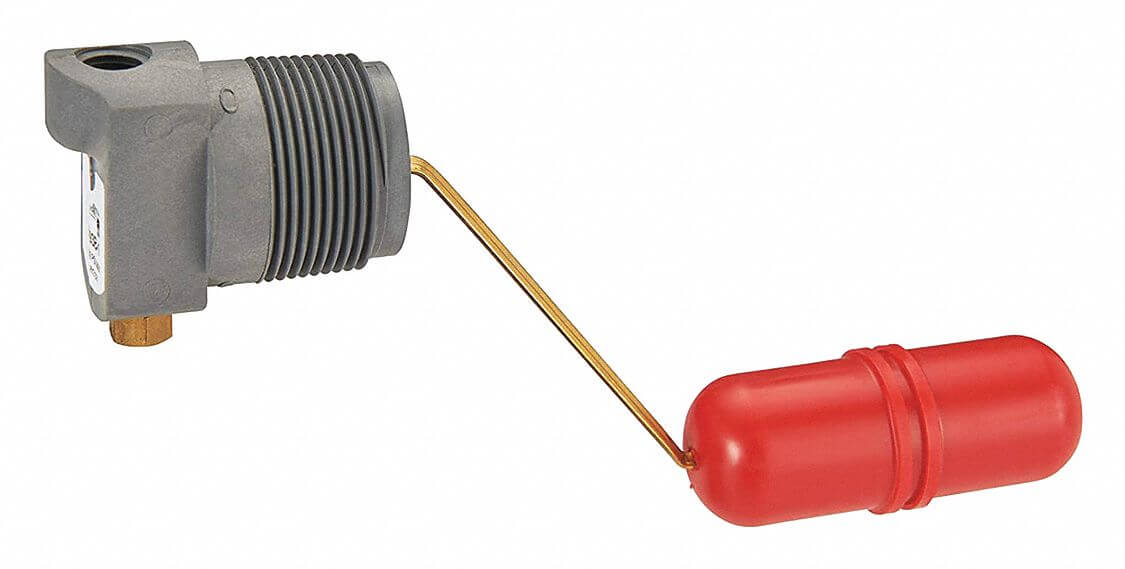

JOHNSON CONTROLS F93B-1C Air Volume Control For Wells
Item: AF7EKFModel: F93B-1CCross Ref: 20XJ13
7 In Stock
Ships within 2 days via
5.00% off
€95.97 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Air Volume Control |
| Body Material | Thermoplastic |
| Compatible Tank Depth | More Than 25 ft. |
| Float Dia. | 1 3/8" |
| Float Length | 3 1/2" |
| Float Material | Plastic |
| Float Switch Contact Form | No |
| Height | 4 1/2" |
| Housing Material | Thermoplastic |
| Length | 9" |
| Max. Pressure | 100 psi |
| Max. Tether Length | 3 5/8" |
| Overall Length | 9" |
| Pressure Range | 25 psi to 100 psi |
| Pressure Release Valve | None |
| Product Datasheet | johnson-controls-f93b-1c.pdf |
| Rod Material | Brass |
| Series | F93 Series |
| Suction Port | 1/4" PTF SAE |
| Suction Port Diameter | 1/4" |
| Switch Type | Normally Open |
| Tank Connection Size | 1 1/4" |
| Tank Connection Type | MNPT |
| Tank Port | 1-1/4" MNPT |
| Tank Port Diameter | 1 1/4" |
| Tank Port Gender | M |
| Tank Port Size | 1 1/4" |
| Tank Port Type | MNPT |
| Tap Dia. | 2" |
| Tap Thread Size | 1/4"-18 |
| Tap Thread Type | SAE PTF |
| Tap Type | SAE Short Gage Tap |
| Teather/solid State | Tether |
| Type | Air Volume Control |
| Width | 1 3/8" |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 11.43 |
| Ship length (cm) | 22.11 |
| Ship width (cm) | 3.49 |
| HS code | 8481809015 |
| Country of Origin | MX |
