JOHNSON CONTROLS A19BUC-2 Control, Heat And Cool | CR6AMH 792YD4

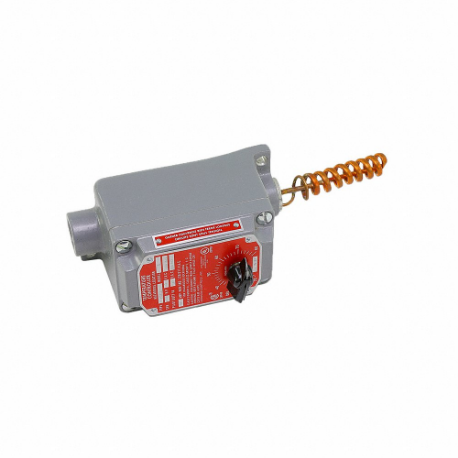

JOHNSON CONTROLS A19BUC-2 Control, Heat And Cool

Item: CR6AMHModel: A19BUC-2Cross Ref: 792YD4
7 In Stock

Ships within 2 days via

€1,607.75
10.00% off
€1,446.97 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Control
Application Heat And Cool
Battery Type Value
Bulb Diameter Not Applicable
Bulb Length 2 1/2"
Capillary Length 6 ft.
Changeover Type Manual
Compatible System Type SPDT Coiled Bulb
Contact Rating Resistive @ 120v Not Applicable
Contact Rating Resistive @ 240v Not Applicable
Contact Rating Resistive @ 277v Not Applicable
Contact Type Snap Action
Control Type External Knob
Defrost Termination Not Applicable
Depth 3.938"
Differential Type Fixed
Electrical Connection Type Screw Terminals
Enclosure Color Natural
Enclosure Finish Natural Aluminum
Enclosure Material Aluminum
Enclosure Nema Rating NEMA 7, NEMA 9
Fan Delay No
Fan Settings No Fan Setting
Full Load Amps @ 120v Ac 16A
Full Load Amps @ 240v Ac 8A
Hazardous Location Class D, E, F, G
Hazardous Location Division Division 1
Inductive Amps @ 120v 16A
Inductive Amps @ 208v 9.2A
Inductive Amps @ 240v 8A
Locked Rotor Amps @ 120v 96A
Locked Rotor Amps @ 240v 48A
Max. Control Temp. 80°F
Max. Operating Temp. Not Applicable
Maximum Operating Humidity Not Applicable
Min. Control Temp. 20°F
Min. Operating Temp. Not Applicable
Minimum Operating Humidity Not Applicable
Mounting Direction Vertical
Mounting Hole Dia. 1/2"
Number Of Cooling Stages 1
Number Of Heating Stages 1
Number Of Heating Stages (conventional System) 1
Number Of Poles 1
Number Of Relay Inputs 1
Number Of Switches 1
Operating Humidity Range No
Operating Temp. Range Not Applicable
Overall Depth 3 15/16"
Overall Height 3"
Overall Width 6 1/16"
Pilot Duty 125 VA @ 24 To 600V AC
Pilot Duty Rating 125 VA @ 24 to 600V AC
Resistive Amps @ 208v Ac Not Applicable
Sensor Location Not Applicable
Sensor Type Coiled Bulb Thermostat
Shape Rectangle
Switch Action Close On Rise, Open On Rise
Switch Type SPDT
Temp. Sensitivity Not Applicable
Temperature Differential 3.5°F
Temperature Scale Celsius, Fahrenheit
Thermostat Type Fixed Differential
Time Delay Not Applicable
Voltage 120/208/240/277V AC
Width 6.062"

Shipping Info:

Ship weight (kg) 1.4
Ship height (cm)7.62
Ship length (cm)10
Ship width (cm)15.4
Country of OriginMX

Product Variants

ProductModelInput VoltageAmpsSwitch ActionSwitch TypeVoltageFull Load Amps @ 240v AcHeightMounting TypePrice
JOHNSON CONTROLS A19BAG-1E Thermostat Electric | AB9MUV 2E535 A19BAG-1E120V AC13AOpen On RiseSPST120V AC-5 1/2"-€199.95
JOHNSON CONTROLS A19ABA-40C Thermostat Spst Close On Rise -30 To 100 | AC7WKC 38Y052 A19ABA-40C120-277V AC-Close On RiseSPST120-277V AC8A4 3/8"Surface Mount€171.26
JOHNSON CONTROLS A19ABC-24C Line Volt Thermostat, SPDT Switch, -30 to 100 deg F | AC7WKD 38Y058 A19ABC-24C120-277V AC-Open/Close On RiseSPDT120-277V AC8A4 3/8"Surface Mount€212.91
JOHNSON CONTROLS A19ANC-1C Thermostat Spdt Range 0 To 150 | AC7WKE 38Y068 A19ANC-1C120-277V AC-Open/Close On RiseSPDT120-277V AC8A4 1/16"Surface Mount€579.06
JOHNSON CONTROLS A19BBC-2C Thermostat Spdt Range 35 To 95 | AC7WKF 38Y070 A19BBC-2C120-277V AC-Open/Close On RiseSPDT120-277V AC8A4 3/8"Flat Surface€265.46
JOHNSON CONTROLS A19PRC-1C Thermostat Spdt Range 30 To 110 | AC7WKG 38Y075 A19PRC-1C24-277V AC-Open/Close On RiseSPDT24-277V AC8A5 5/8"Flat Surface€553.85
JOHNSON CONTROLS A19AAF-21C Line V Mechanical Thermostat 120 to 277VAC 6A | AG9MLD 20XJ28 A19AAF-21C--Close On Fall/Open-120-277V AC3A4 13/32"Flat Surface€254.70
