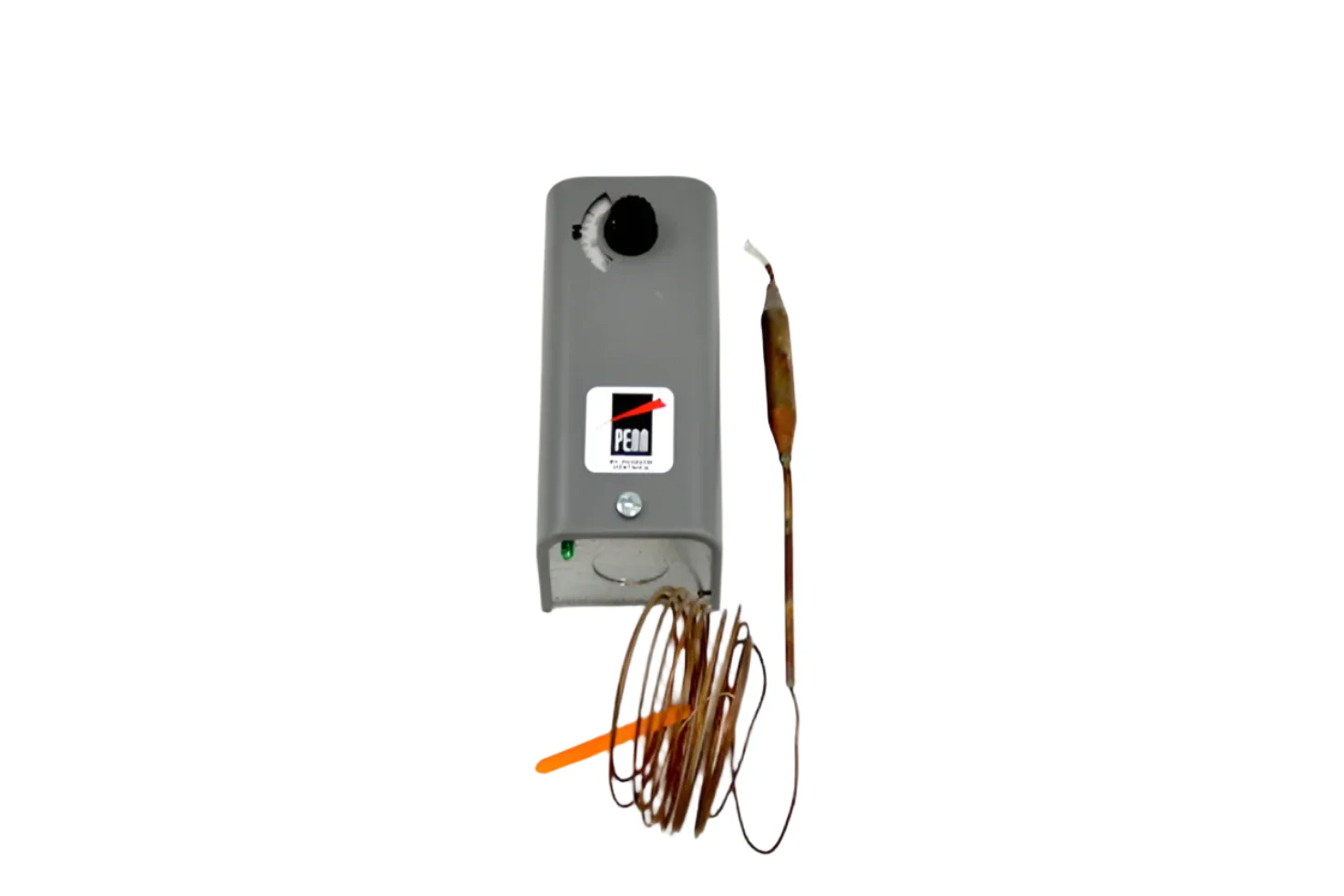

JOHNSON CONTROLS A19ABC-97 Temp -30/100F Adjdiff 6Cap 4 Inch SizeBulb
Item: CR6APMModel: A19ABC-97Cross Ref: 241P85
7 In Stock
Ships within 2 days via
10.00% off
€239.42 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fan and Limit Control |
| Application | Heat Or Cool |
| Bulb Diameter | 1/2" |
| Bulb Length | 8" |
| Capillary Length | 6 ft. |
| Differential Type | Adjustable |
| Enclosure Material | Steel |
| Enclosure Nema Rating | 1 |
| Max. Control Temp. | 100°F |
| Maximum Operating Temperature | 140°F |
| Min. Control Temp. | -30°F |
| Number Of Cooling Stages | 1 |
| Number Of Heating Stages | 1 |
| Overall Depth | 2 1/8" |
| Overall Height | 4 3/8" |
| Overall Width | 2 1/8" |
| Switch Action | Open On Rise |
| Switch Type | SPST |
| Temperature Differential | 6 |
| Temperature Scale | Fahrenheit |
| Thermostat Type | Line Voltage Mechanical |
Shipping Info:
| Ship weight (kg) | 1.35 |
| Ship height (cm) | 11.11 |
| Ship length (cm) | 5.4 |
| Ship width (cm) | 5.4 |
| Country of Origin | MX |
Product Variants
| Product | Model | Input Voltage | Amps | Switch Action | Switch Type | Voltage | Full Load Amps @ 240v Ac | Height | Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A19BAG-1E | 120V AC | 13A | Open On Rise | SPST | 120V AC | - | 5 1/2" | - | €199.95 | |
 |
A19ABA-40C | 120-277V AC | - | Close On Rise | SPST | 120-277V AC | 8A | 4 3/8" | Surface Mount | €171.26 | |
 |
A19ABC-24C | 120-277V AC | - | Open/Close On Rise | SPDT | 120-277V AC | 8A | 4 3/8" | Surface Mount | €212.91 | |
 |
A19ANC-1C | 120-277V AC | - | Open/Close On Rise | SPDT | 120-277V AC | 8A | 4 1/16" | Surface Mount | €579.06 | |
 |
A19BBC-2C | 120-277V AC | - | Open/Close On Rise | SPDT | 120-277V AC | 8A | 4 3/8" | Flat Surface | €265.46 | |
 |
A19PRC-1C | 24-277V AC | - | Open/Close On Rise | SPDT | 24-277V AC | 8A | 5 5/8" | Flat Surface | €553.85 | |
|
A19AAF-21C | - | - | Close On Fall/Open | - | 120-277V AC | 3A | 4 13/32" | Flat Surface | €254.70 |
