JET TOOLS JT9-716000 JWDP-12 Bench Drill Press, Belt, 115VAC, Variable Speed, 530 RPM to 3, 100 RPM, 12 Inch Swing
Get it by Tuesday, Dec 23
10.00% off
€759.80 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Bench Drill Press |
| Amps | 5A |
| Application | Drilling |
| Base Length | 10" |
| Base Width | 16 1/8" |
| Chuck Capacity | 5/8" |
| Chuck Size | 5/8" |
| Chuck Style | Keyed |
| Column Dia. | 2 1/2" |
| Coolant System | No |
| Drill Press Application | Drilling |
| Drill Press Type | Benchtop |
| Drilling Capacity In Steel | 1/2" |
| Drilling Capacity In Wood | 2" |
| Drive Type | Belt |
| Guard Included | No |
| Hp | 1/2 hp |
| Includes | Arbor, Drift Key, Keyed Chuck |
| Length | 29 3/4" |
| Max. Overall Height | 12 1/4" |
| Max. Spindle Speed | 3100 RPM |
| Maximum Spindle To Base Height | 23 3/8" |
| Maximum Spindle To Table Height | 17" |
| Min. Spindle Speed | 530 RPM |
| Number Of Speeds | Variable |
| Number Of Spindle Speeds | Variable |
| Number Of T-slots | 4 |
| Overall Length | 29 3/4" |
| Phase | 1 |
| Power Downfeed Included | No |
| Power Source | Corded |
| Primary Material Application | Metal, Wood |
| Quill Dia. | 1 5/8" |
| Radial Arm | No |
| Speed Adjustment | Mechanical Variable Speed Drive System |
| Speed Control | Variable |
| Speed Range | 530-3100 RPM |
| Spindle Taper | 2MT |
| Spindle To Column Distance | 10 1/2" |
| Spindle Travel | 3 1/8" |
| Swing | 12" |
| Table Length | 9 1/2" |
| Table Shape | Square |
| Table Slot | Yes |
| Table Slot Width | 5/8" |
| Table Width | 9 1/2" |
| Tilt Angle | 45° |
| Tool Weight | 85 lbs. |
| Voltage | 115V AC |
Shipping Info:
| Ship weight (kg) | 41.63 |
| Ship height (cm) | 30.99 |
| Ship length (cm) | 75.44 |
| Ship width (cm) | 2.54 |
| Country of Origin | CN |
Product Variants
| Product | Model | Voltage | Speed Control | Swing | Spindle To Column Distance | Hp | Application | Column Dia. | Spindle Taper | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

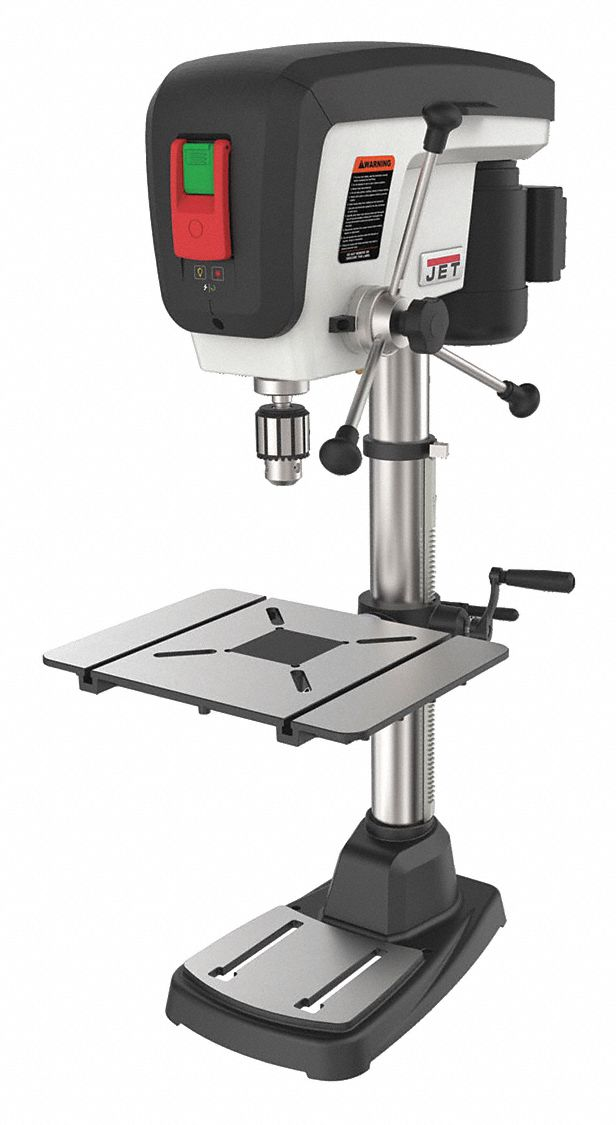

JT9-716200 | 115/230V AC | Fixed | 15" | 7 1/2" | 3/4 hp | Woodworking | 2 3/4" | MT2 | €1,813.98 |
