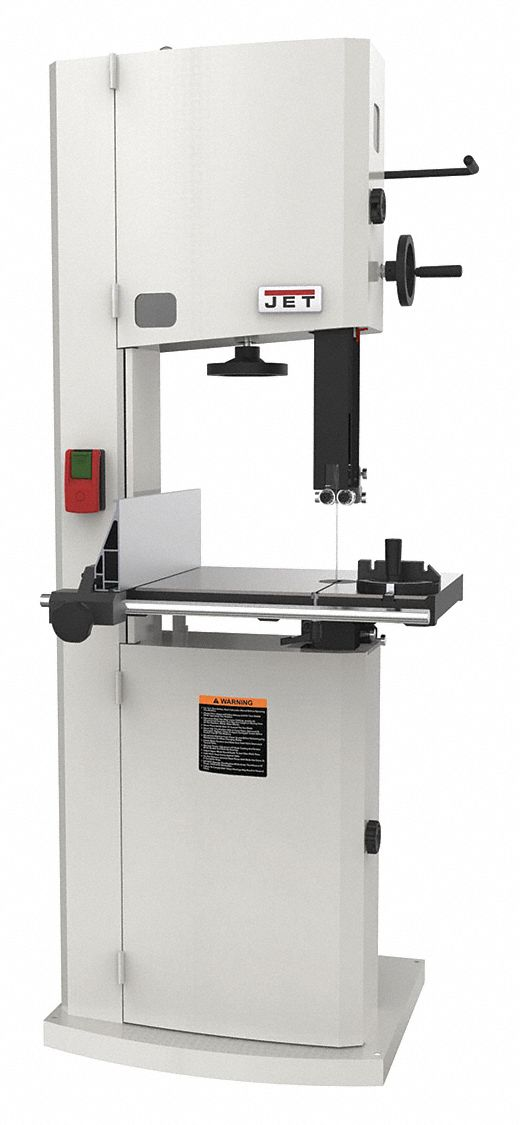

JET TOOLS JT9-714600 JWBS-15 Band Saw, Vertical, 115/230VAC, 14 1/8 Inch Throat Dp - Vertical
Get it by Thursday, Apr 2
5.00% off
€3,270.91 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Band Saw |
| Amps | 15/7.5A |
| Amps Ac | 15/7.5A |
| Band Saw Operation | Manual |
| Band Saw Size/wheel Dia. | 14 3/4" |
| Band Saw Type | Vertical |
| Blade Dia. | 14 3/4" |
| Blade Length | 133" |
| Blade Speed | 3100 SFPM |
| Blade Thickness | 0.026" |
| Blade Wheels Dia. | 14.75" |
| Cutting Capacity Height | 14" |
| Cutting Capacity Square | 14" |
| Dust Collection Min. Cfm Required | 400 CFM |
| Features | Resaw Capacity For Cutting Large Pieces Of Wood, Slicing Veneers, Cutting Book Matched Panels, Precision Ground Cast Iron Table For Added Stability And Work Support Fence System Micro Adjustable, Dual Position Side Plate Tool-Less, Independently Adjustable, Upper And Lower Ball Bearing Guides Rigid, Four Sided Guide Post With Rack And Pinion Adjustment For Optimum Blade Support |
| Frequency | 60 Hz |
| Horizontal Rectangular Cutting Capacity | 14 1/8" x 14" |
| Hp | 1 3/4 hp |
| Includes | Bracket, Fence Body, Guide Rail, Handwheel With Handle, Lifting Ring, Miter Gauge Assembly, Resaw Fence, Table, Table Insert |
| Material Application | Wood |
| Max. Blade Length | 133" |
| Max. Blade Width | 1" |
| Min. Blade Length | 131 13/16" |
| Min. Saw Blade Width | 1/8" |
| Miter Angle Range | 5° Left to 45° Right |
| Motor Amps | 15/7.5A |
| Motor Power | 1 3/4 hp |
| Number Of Speed Settings | 2 |
| Operation Type | Manual |
| Overall Depth | 29 1/2" |
| Overall Height | 74" |
| Overall Width | 32" |
| Phase | 1 |
| Prewired Voltage | 115V |
| Recommended Circuit Current | 20A |
| Rectangular Cutting Capacity | 14.125" x 14" |
| Rectangular Cutting Capacity - Horizontal | 14 1/8" x 14" |
| Round Cutting Capacity | 14" |
| Round Cutting Capacity - Horizontal | 14" |
| Sfpm Range | 3100 SFPM |
| Table Dimensions | 21 1/2" x 16" |
| Table Height | 2" |
| Table Height From Floor | 35" |
| Table Length | 21 1/2" |
| Table Width | 16" |
| Throat Depth | 14 1/8" |
| Throat Depth - Vertical | 14 1/8" |
| Type | Vertical |
| Voltage | 115/230V AC |
Shipping Info:
| Ship weight (kg) | 207 |
| Ship height (cm) | 74.93 |
| Ship length (cm) | 74.93 |
| Ship width (cm) | 81.28 |
| Country of Origin | TW |
Product Variants
| Model | Voltage | Throat Depth | Sfpm Range | Amps Ac | Blade Length | Max. Blade Length | Max. Blade Width | Cutting Capacity Square | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| JT9-714650 | 230V AC | 14 1/8" | 3100 SFPM | 12A | 133" | 133" | 1" | 14" | €3,586.45 | |

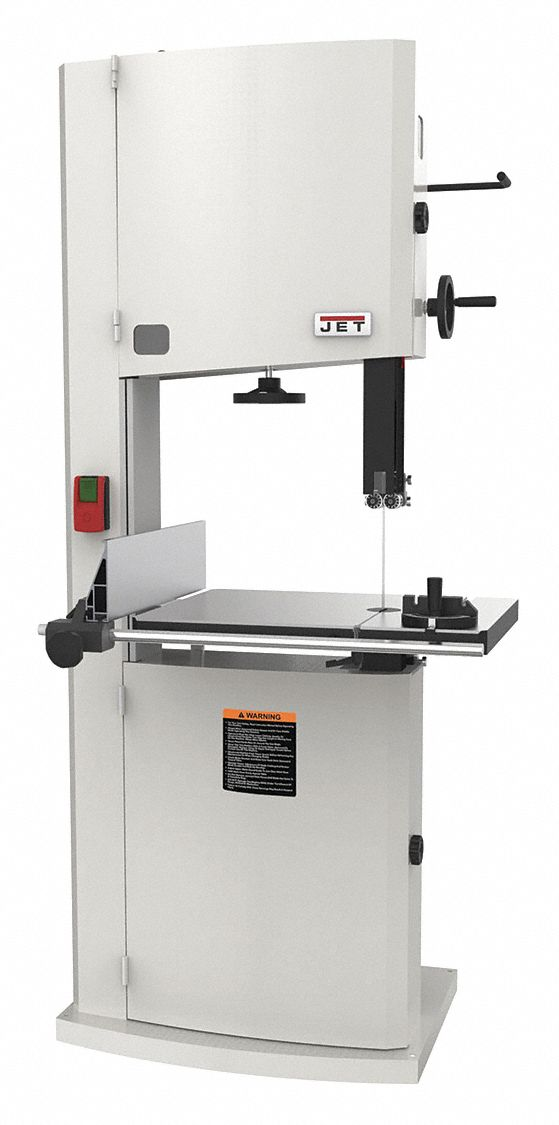

| JT9-714850 | 230V AC | 20" | 2530 SFPM to 4850 SFPM | 22A | 158" | 158 1/2" | 1 1/2" | 6" | €6,126.96 | |
| JT9-714800 | 230V AC | 20" | 2530 SFPM to 4850 SFPM | 12A | 158" | 158 1/2" | 1 1/2" | 6" | €5,601.97 |
