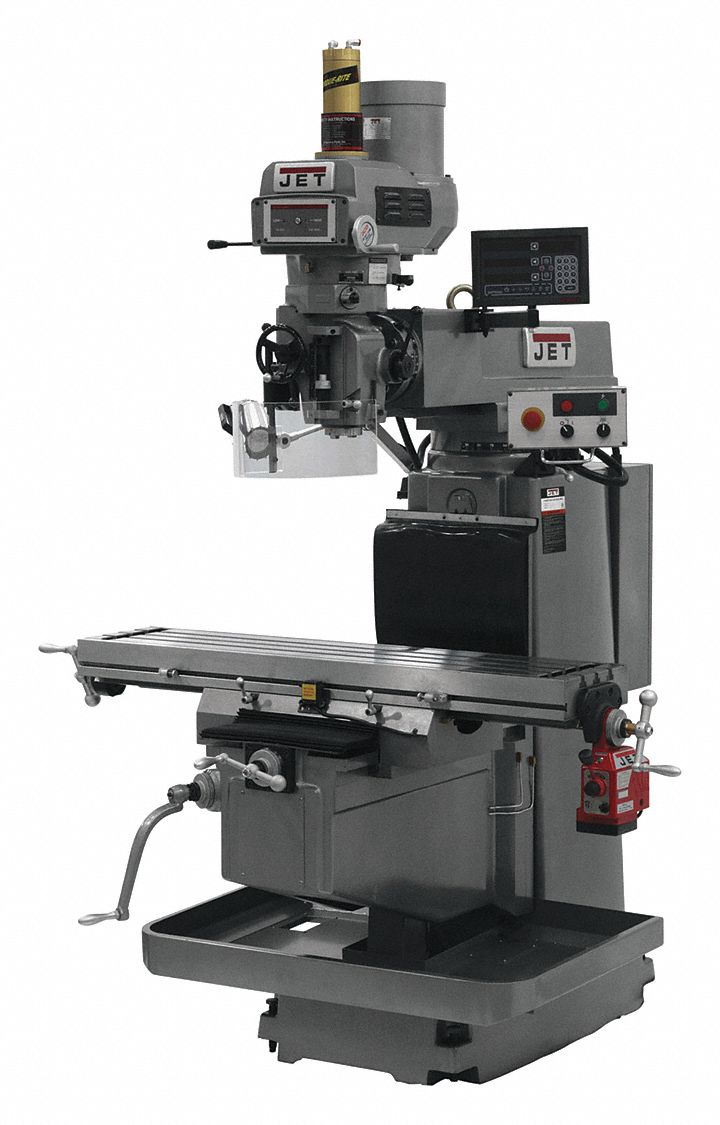

JET TOOLS JT9-698068 Knee/Column Milling Machine, 12 Inch Table Length, 54 Inch Table Width

Item: CR4ZLAModel: JT9-698068Cross Ref: 53ZC77

Check Availability

In Stock

Get it by Tuesday, Sep 1

~~€40,938.27~~

5.00% off

€38,891.36 /unit

Add To Cart

Request a Quote

Payment

Delivery

Product Specifications:

Item	Machine
Amps	6.5/13A
Collet Capacity	1/8" to 1"
Column Width	14 1/4"
Digital Readout Included	Newall Dp700
Drawbar Style	Air Powered
Frequency	60 Hz
Head Swivel-left	90°
Head Swivel-right	90°
Included Digital Readout	Digital Readout Included
Included Powerfeeds	X-Axis Powerfeed
Left-hand Head Tilt	90°
Length	79 7/8"
Longitudinal Travel	33 7/8"
Max. Collet Capacity	1"
Max. Cross Travel	15 5/16"
Max. Distance Spindle To Column	27 3/4"
Max. Distance Spindle To Table	23"
Max. Knee Travel	19 1/4"
Max. Longitudinal Travel	33 7/8"
Max. Motor Speed	1720 RPM
Max. Spindle Speed	3800 RPM
Max. Spindle To Column Distance	27 3/4"
Max. Spindle To Table Distance	23"
Min. Collet Capacity	1/8"
Min. Spindle Speed	80 RPM
Min. Spindle To Column Distance	7 1/2"
Min. Spindle To Table Distance	23"
Motor Hp	5 hp
Motor Type	Totally Enclosed Fan-Cooled
Motor Voltage	230/460V
No. Of Axis	2
No. Of Motor Phase	3
No. Of Spindle Speed	Variable
No. Of T-slots	3
Overall Depth	59"
Overall Dimensions	92 1/8" x 79 7/8" x 104 1/4"
Overall Height	96 1/2"
Overall Width	82"
Phase	3
Power Draw Bar	Pneumatic
Powerfeed	X Axis
Quill Dia.	4 1/8"
Quill Down Feed Rates	0.0015, 0.003, 0.008
Ram Travel Length	25"
Ram Travel-max.	25"
Ram Turret Swivel	90°
Range Of Spindle Speeds	80-3800 RPM
Right-hand Head Tilt	90°
Saddle Width	25 5/8"
Series	JTM-1254VS Series
Sound Level	72 dBA
Spindle Taper	NT40
Spindle Taper Size	RP_NST40
Spindle Travel	5"
Spindle Travel Length	5"
Spindle Travel-max.	5"
Spindle-to-table Distance	23"
Style	Variable Speed NT40
T Slot Width	5/8"
T-slot Centers	2 1/2"
T-slot Depth	3/4"
Table Cross Travel	15 1/3"
Table Depth	12"
Table Length	12"
Table Load Capacity	925 lbs.
Table Longitudinal Travel	33 7/8"
Table Longitudinal Travel With Powerfeed	28 1/4"
Table Width	54"
Travel Of Knee	19 1/4"
Travel Of Ram	25"
Voltage	230/460V
Work Table Weight Capacity	925 lbs.

Shipping Info:

Ship weight (kg)	1663.2
Ship height (cm)	2.54
Ship length (cm)	234
Ship width (cm)	202.88
Country of Origin	TW

Product Variants

Model	Table Width	Table Load Capacity	Motor Hp	Quill Dia.	Ram Travel Length	Table Length	Voltage	Min. Spindle Speed	Price
JT9-698059	-	-	-	-	-	-	-	-	€37,205.03
JT9-690621	50"	840 lbs.	3 hp	3 3/8"	15 7/8"	10"	230V	60 RPM	€34,724.86
JT9-691050	50"	840 lbs.	3 hp	3 3/8"	21"	10"	230/460V	60 RPM	€21,168.33
JT9-690620	50"	840 lbs.	3 hp	3 3/8"	15 7/8"	10"	230V	60 RPM	€32,843.00
JT9-690680	50"	840 lbs.	3 hp	3 3/8"	15 7/8"	10"	230V	60 RPM	€38,231.32
JT9-690619	50"	840 lbs.	3 hp	3 3/8"	15 7/8"	10"	230V	60 RPM	€30,405.42
JT9-690601	50"	840 lbs.	3 hp	3 3/8"	15 7/8"	10"	230V	60 RPM	€26,300.07
